Kirjeldus
Tootja kood (MPN): CPE510
ELKO kood: 1159602
Description: What this product does

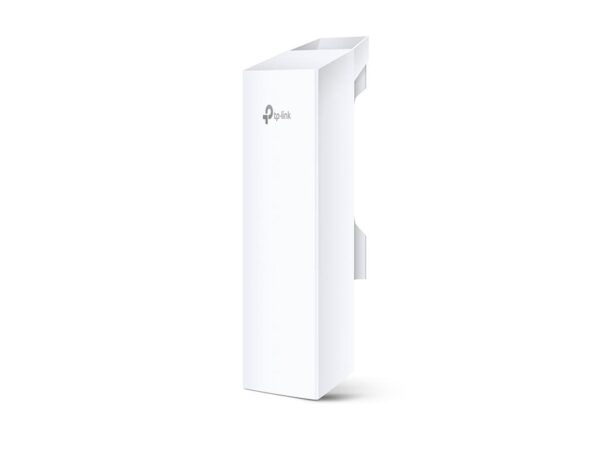

TP-LINK’s 5GHz 300Mbps 13dBi Outdoor CPE, the CPE510 is dedicated to cost effective solutions for outdoor wireless networking applications. With its centralized management application, it is ideal for point-to-point, point-to-multipoint and outdoor Wi-Fi coverage applications. Professional performance, coupled with user-friendly design, makes CPE510 an ideal choice for both business and home users.
Enterprise Hardware Design
With Qualcomm Atheros enterprise level chipsets, high gain antennas and high quality material, specially designed enclosure, and PoE power supply, CPE510 is specially designed for outdoor use and can operate flawlessly in almost any climate, with operating temperatures ranging from -30℃ (-22℉) to +70 ℃ (158℉).
Advanced Antenna System
Built-in High Gain Dual-Polarized Antenna and dedicated metal reflection ensures higher gain and lower noise interference.
High Power & High Sensitivity
In advanced, high power Tx (up to 27dBm/500mw) and high sensitivity Rx (up to -95dBm) radio front-end design breaks down the barriers of traditional Wi-Fi transmission range, making CPE510 an ideal product for outdoor wireless networking applications.
Professional Outdoor Design
CPE510 is designed to work in harsh environments, even in some of the world’s most hostile climate conditions.
Weatherproof Design
With its outdoor weatherproof enclosure and industrial-level hardware design, CPE510 can continue operating in various weather conditions, such as sunshine, rainfall, wind, snow or extremely low/high temperature environment(-30°C~70°C).
Double Protection against ESD Attacks
Besides its grounding terminal, CPE510 offers another way to eliminate ESD attacks via the PoE adapter and Ethernet cable with grounding wire. The CPE510’s additional security measures provide up to 15KV ESD and 6000V lightning protection for more reliable operation.
TP-LINK MAXtream TDMA Technology
As network scale increases, wireless competition and collisions among CPEs and base stations will be so enormous that the real throughput of the network will drop, resulting in a serious impact on end-user experience, to mitigate these effects, the CPE510 uses MAXtream TDMA Technology.
Pharos Control – Centralized Management System
CPE510 also comes equipped with centralized management software that helps users easily manage all the devices in their network from a single PC – Pharos Control. Functions like device discovery, status monitoring, firmware upgrading, and network maintenance can be managed using Pharos Control.
PharOS
User-friendly web-based management system allows professionals to apply more specific configurations
Long Description: TP-Link 5GHz 300Mbps 13dBi Outdoor CPE. 5 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: AES, TKIP, WPA, WPA-PSK, WPA2, WPA2-PSK. Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: White
Vendor Homepage: https://www.tp-link.com/en/products/details/?categoryid=&model=CPE510#over
Bullet Points:
- Built-in 13dBi 2×2 dual-polarized directional MIMO antenna
- Adjustable transmission power from 0 to 23dBm/200mw
- System-level optimizations for more than 15km long range wireless transmission
- TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
- Centralized Management System – Pharos Control
- AP / Client / AP Router / AP Client Router (WISP) operation modes
- Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
2.4 GHz: No
5 GHz: Yes
6 GHz: No
Web-based management: Yes
Maximum data transfer rate: 300
Maximum data transfer rate (5 GHz): 300
Ethernet LAN data rates: 10/100
Throughput data rate: 300
Frequency band: 5.15 – 5.85
Bandwidth: 5
Networking standards: IEEE 802.11a/IEEE 802.11n
Cabling technology: 10/100Base-T(X)
Automatic channel scanning: Yes
Automatic channel selection: Yes
Model: CPE510
Model name: 5GHz 300Mbps 13dBi Outdoor CPE
Security algorithms: AES/TKIP/WPA/WPA2/WPA2-PSK/WPA-PSK
Placement: Pole,Wall
Product colour: White
Housing material: Plastic
Antenna type: Internal
Antenna direction type: Omni-directional
Antenna features: Integrated antenna
Antennas quantity: 1
VLAN support: Yes
Antenna gain level (max): 13
Virtual LAN features: Tagged VLAN
MAC address filtering: Yes
IP address filtering: Yes
Service Set Identifier (SSID) features: SSID broadcast/SSID broadcast on/off
Operating relative humidity (H-H): 10 – 90
Operating temperature (T-T): -30 – 70
Storage temperature (T-T): -40 – 70
International Protection (IP) code: IP5X
Quantity per pack: 1
Universal Plug and Play (UPnP): Yes
Width: 224.4
Wireless isolation: Yes
Depth: 79
PoE adapter included: Yes
Cables included: AC
Height: 60.3
Ethernet LAN (RJ-45) ports: 1
Management protocols: TDMA
Mounting kit: Yes
Reset button: Yes
Power over Ethernet (PoE): Yes
WAN connection: Ethernet (RJ-45)
LED indicators: Yes
DC voltage range: 16 – 27
Power consumption (typical): 13
Storage relative humidity (H-H): 5 – 95
Syslog: Yes
IGMP snooping: Yes
DC-in jack: Yes
Auto Wireless Distribution System (WDS): Yes
Maximum outdoor range: 15000
Receiver sensitivity: 802.11a:
54M: -75dBm, 48M: -76dBm, 36M: -83dBm, 6-24M: -95dBm
802.11n:
MCS15: -73dBm, MCS14: -74dBm, MCS13: -76dBm,
MCS12: -80dBm, MCS11: -83dBm, MCS10: -88dBm,
MCS9: -90dBm, MCS8: -93dBm, MCS7: -73dBm,
MCS6: -74dBm, MCS5: -76dBm, MCS4: -80dBm,
M
Package width: 132
Package depth: 270
Package height: 106
Package weight: 720
Built-in processor: Yes
Processor model: Qualcomm Atheros
Processor frequency: 560
Processor architecture: MIPS 74Kc
Flash memory: 8
Internal memory: 64
Certification: – FCC/UL/IC/GS/PSB/C-tick/SAA/S-Mark/KC-mark
– RoHS
Management platform: Pharos Control
Compatible operating systems: Microsoft Windows 98SE, NT, 2000, XP, VistaT or Windows 8, Windows 7, MAC OS, NetWare, UNIX or Linux.
Firmware upgradeable: Yes
Units per Shipping Box: 20
Unit Calculated Volume: 0.004703
Unit Calculated Weight: 0.985
