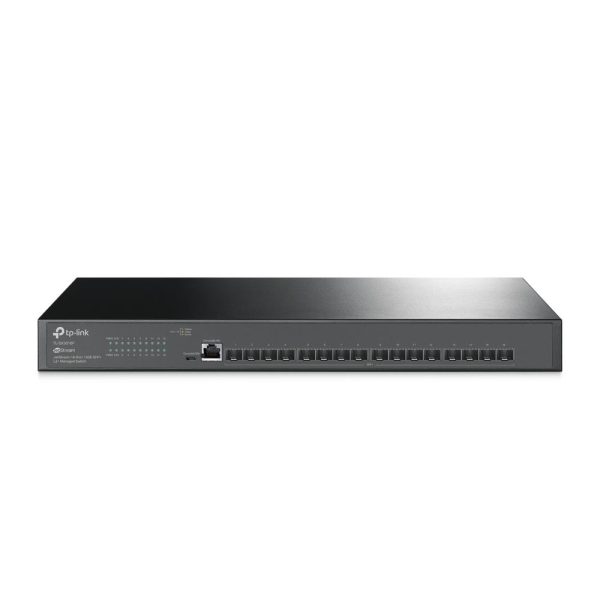

Switch|TP-LINK|Type L2|16x10GBASE-T/SFP+ Combo|1xRJ45|1|TL-SX3016F
631,48 €
2 laos
Tellitud: 0
Saadaval olevad esemed: 2
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
XS
0 ( 000 )
23
32
44
55
S
24
23
32
44
55
M
25
23
32
44
55
L
26
23
32
44
55
M
29
23
32
44
55
L
32
23
32
44
55
M
34
23
32
44
55
4 - Päeva Transport
veebr. 27 märts 03
Kirjeldus
Tootja kood (MPN): TL-SX3016F
ELKO kood: 1369394
Description:
TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.
- 16× 10 Gbps SFP+ slots
- 320 Gbps switching capacity
- Two power supply modules back each other up
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
Summary: TP-Link Omada 16-Port 10GE SFP+ L2+ Managed Switch. Switch type: Managed, Switch layer: L2+/L3. Console port: RJ-45/Micro-USB. MAC address table: 32000 entries, Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE…. Power connector: DC-in jack. Rack mounting
Vendor Homepage: https://www.tp-link.com/en/business-networking/omada-switch-l3-l2-managed/sx3016f/
Category Code: SWI
Unit Box Height: 0.1
Unit Box Length: 0.53
Unit Box Width: 0.34
ARP inspection: Yes
Cloud-managed: Yes
Configuring Location Settings (CLI): Yes
MIB support: RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1493, RFC1643, RFC2233, RFC1213
Quality of Service (QoS) support: Yes
Switch layer: L2+/L3
Switch type: Managed
System event log: Yes
Traffic classification: Yes
Web-based management: Yes
Basic switching RJ-45 Ethernet ports type: No
Console port: RJ-45/micro-USB
Power connector: DC-in jack
SFP+ module slots quantity: 16
10G support: Yes
Broadcast storm control: Yes
Flow control support: Yes
Head-of-line (HOL) blocking: Yes
IP routing: Yes
Link aggregation: Yes
Networking standards: IEEE 802.1ab/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3ad/IEEE 802.3x
Number of VLANs: 4000
Port mirroring: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
Virtual LAN features: Private VLAN/Protocol-based VLAN/Tagged VLAN/Voice VLAN
VLAN support: Yes
Forwarding rate: 238.08
Jumbo frames: 9000
Jumbo frames support: Yes
MAC address table: 32000
Number of queues: 8
Packet buffer memory: 24
Static route: Yes
Switching capacity: 320
Access Control List (ACL): Yes
Authentication: Guest VLAN,MAC-based authentication,Port-based authentication,Web-based authentication
Authentication type: AAA,TACACS+
BPDU filtering/protection: Yes
DHCP features: DHCP relay/DHCP server/DHCP snooping/DHCPv6 client/DHCPv6 snooping
IGMP snooping: Yes
IP-MAC-Port binding: Yes
Loop protection: Yes
MAC address filtering: Yes
Queue scheduling algorithms: SP/Weighted Round Robin (WRR)/WRR+SP
Security algorithms: HTTPS/SSH/SSH-2/SSL/TLS
SSH/SSL support: Yes
Static port security: Yes
Multicast Listener Discovery (MLD) snooping: Y
Multicast support: Yes
IPv4 & IPv6 features: IPv6 ping/IPv6 Telnet/IPv6 tracert
Management protocols: SNMPv1/v2c/v3, SNTP
LED indicators: Yes
Product colour: Black
Rack mounting: Yes
AC input frequency: 50/60
AC input voltage: 100 – 240
Power consumption (max): 32.74
Power source: AC
Power supply included: Yes
Power over Ethernet (PoE): No
Heat dissipation: 111.71
Operating relative humidity (H-H): 10 – 90
Operating temperature (T-T): 0 – 45
Storage relative humidity (H-H): 5 – 90
Storage temperature (T-T): -40 – 70
Depth: 220
Height: 44
Width: 440
Cables included: AC
Manual: Yes
Quick start guide: Yes
Rack mount kit: Yes
Package type: Box
Certification: CE, FCC, RoHS
Model: TL-SX3016F
Units per Shipping Box: 1
Unit Calculated Volume: 0.01802
Unit Calculated Weight: 3.98
