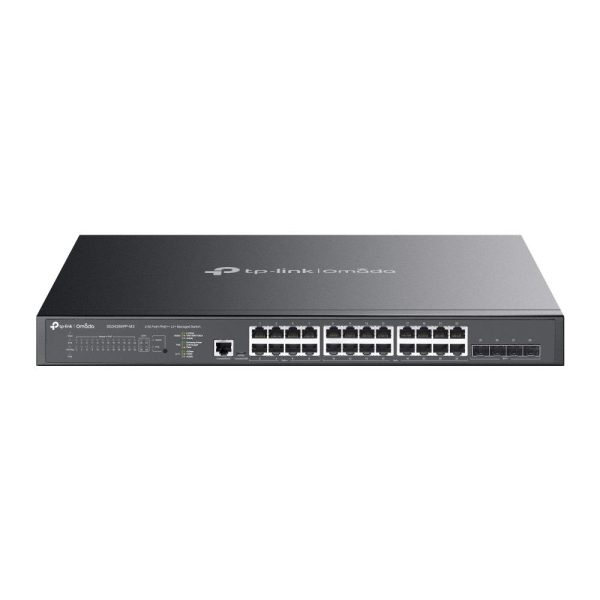

Switch|TP-LINK|Omada|SG3428XPP-M2|Desktop/pedestal|Rack|24×2.5GbE|4xSFP+|1xConsole|1|PoE+ ports 16|500 Watts|SG3428XPP-M2

Tootja kood (MPN): SG3428XPP-M2
ELKO kood: 1420715
Description:

TP-Link | Omada L2+ managed switches provide high performance, powerful L2 and L2+ features like static routing, enterprise-level QoS, advanced security strategies and a bundle of ISP features. The 10-gigabit ports ensure high-speed data transfer, and their backward compatility with gigabit products reserves room for network upgrades, therefore guarantees stable and long-term usability. The IP-MAC-Port Binding (IMPB) and Access Control List (ACL) functions protect against broadcast storm, ARP and Denial-of-Service (DoS) attacks, etc. Quality of Service (QoS, L2 to L4) provides enhanced traffic management capabilities to move your data smoother and faster. The OAM function helps facilitate network management. Moreover, the easy-to-use web management interfaces, along with CLI, SNMP and Dual Image mean faster setup and configuration with less downtime. TP-Link | Omada L2+ 10-gigabit managed switches provide a reliable, secure solution for enterprise, campus and ISP networks.

• 8× 2.5G PoE++ ports (up to 60 W PoE out per port)**
• 16× 2.5G PoE+ ports (up to 30 W PoE out per port)
• 4× 10G SFP+ slots
• 500 W total PoE budget*
• Centralized cloud management via the web or the Omada app†
• Standalone management via web, CLI, SNMP, and RMON
• Static Routing helps route internal traffic for higher efficiency
• VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
• ERPS supports rapid protection and recovery in a ring topology

Summary: TP-Link Omada 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/Micro-USB. Full duplex. MAC address table: 32000 entries, Switching capacity: 200 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE…. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Vendor Homepage: https://www.tp-link.com/en/business-networking/omada-switch-l3-l2-managed/sg3428xpp-m2/#overview
Category Code: SWI
CnCode: 85176200
Unit Box Height: 0.101
Unit Box Length: 0.53
Unit Box Width: 0.44
ARP inspection: Yes
Cloud-managed: Yes
Configuring Location Settings (CLI): Yes
MIB support: RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Quality of Service (QoS) support: Yes
Switch layer: L2+
Switch type: Managed
System event log: Yes
Web-based management: Yes
2.5G Ethernet (copper) ports quantity: 24
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
Console port: RJ-45/micro-USB
SFP+ module slots quantity: 4
10G support: Yes
Broadcast storm control: Yes
Ethernet LAN data rates: 10,100,1000,2500,10000
Flow control support: Yes
Full duplex: Yes
Half duplex: Yes
Head-of-line (HOL) blocking: Yes
IPv4 routes: 48
IPv6 routes: 48
Link aggregation: Yes
Networking standards: IEEE 802.1ab/IEEE 802.1D/IEEE 802.1p/IEEE 802.1Q/IEEE 802.1s/IEEE 802.1w/IEEE 802.1x/IEEE 802.3/IEEE 802.3ab/IEEE 802.3ad/IEEE 802.3ae/IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3bz/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Port mirroring: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
Virtual LAN features: MAC address-based VLAN/Port-based VLAN/Protocol-based VLAN/Stacked VLAN/Tagged VLAN/Voice VLAN
VLAN support: Yes
Forwarding rate: 148.8
Jumbo frames: 9000
Jumbo frames support: Yes
MAC address table: 32000
Number of IP interfaces: 32
Number of queues: 8
Number of static routes: 48
Packet buffer memory: 16
Static route: Yes
Store-and-forward: Yes
Switching capacity: 200
Access Control List (ACL): Yes
Authentication: Guest VLAN,MAC-based authentication,Port-based authentication
Authentication type: AAA,IEEE 802.1x,RADIUS,TACACS+
BPDU filtering/protection: Yes
DHCP features: DHCP client/DHCP relay/DHCP server/DHCP snooping/DHCPv6 client/DHCPv6 snooping
IGMP snooping: Yes
IP-MAC-Port binding: Yes
Loop protection: Yes
Password protection: Yes
Queue scheduling algorithms: SP/Weighted Round Robin (WRR)/WRR+SP
Security algorithms: HTTPS/SSH/SSH-2/SSL/TLS
SSH/SSL support: Yes
Static port security: Yes
Multicast Listener Discovery (MLD) snooping: MLD v1/v2
Multicast support: Yes
GARP VLAN Registration Protocol (GVRP): Yes
IPv4 & IPv6 features: IPv4/IPv6 access-control list (ACL)/IPv6 ping/IPv6 portal/IPv6 tracert
Management protocols: SNMP v1/v2c/v3
Form factor: 1U
LED indicators: Yes
Number of fans: 3
Product colour: Black
Rack mounting: Yes
Redundant fans support: Yes
Flash memory: 32
Internal memory: 256
Memory type: DRAM
AC input frequency: 50/60
AC input voltage: 100 – 240
Power consumption (max): 629.1
Power source: AC/PoE
Power supply included: Yes
Redundant power supply (RPS) support: Yes
Power over Ethernet (PoE): Yes
Power over Ethernet 4PPoE (PoE++) ports quantity: 8
Power over Ethernet plus (PoE+) ports quantity: 16
Total Power over Ethernet (PoE) budget: 500
Heat dissipation: 2153.45
Operating relative humidity (H-H): 10 – 90
Operating temperature (T-T): 0 – 40
Storage relative humidity (H-H): 5 – 90
Storage temperature (T-T): -40 – 70
Depth: 330
Height: 44
Width: 440
Cables included: AC
Quick start guide: Yes
Rack mount kit: Yes
Sustainability compliance: Yes
Compliance certificates: CE/Federal Communications Commission (FCC)/RoHS
Series: Omada
Model name: SG3428XPP-M2
Units per Shipping Box: 1
Unit Calculated Volume: 0.02355
Unit Calculated Weight: 6.2
