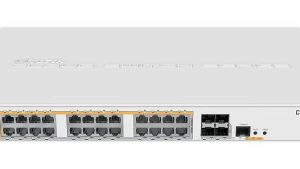

Switch|TP-LINK|Omada|SG3428XMPP|Rack|24x10Base-T / 100Base-TX / 1000Base-T|4xSFP+|1xConsole|1|PoE+ ports 16|500 Watts|SG3428XMPP
781,70 €
1 laos
Tellitud: 0
Saadaval olevad esemed: 1
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
XS
0 ( 000 )
23
32
44
55
S
24
23
32
44
55
M
25
23
32
44
55
L
26
23
32
44
55
M
29
23
32
44
55
L
32
23
32
44
55
M
34
23
32
44
55
4 - Päeva Transport
apr. 10 apr. 14
Kirjeldus
Tootja kood (MPN): SG3428XMPP
ELKO kood: 1420719
Description:
Empowering the High-Power Devices with Gigabit PoE++ Ports
Easily Build a Whole 10G Multi-gigabit Network
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
- 8× Gigabit 802.af/at/bt PoE++ ports (Max 90 W PoE budget for each port)
- 16× Gigabit 802.3af/at PoE+ ports (Max 30 W budget for each port)
- 500 W total PoE budget*
- Centralized cloud management via the web or the Omada app†
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing, VLAN, ACL, QoS, IGMP Snooping, OAM, and DDM
- ERPS supports rapid protection and recovery in a ring topology
- Durable metal casing and rack-mountable design
Summary: TP-Link Omada SG3428XMPP. Switch type: Managed, Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45/Micro-USB. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at. Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Vendor Homepage: https://www.tp-link.com/ae/business-networking/omada-switch-poe/sg3428xmpp/#specifications
Category Code: SWI
Unit Box Height: 0.47
Unit Box Length: 0.53
Unit Box Width: 0.1
ARP inspection: Yes
Cloud-managed: Yes
Configuring Location Settings (CLI): Yes
Quality of Service (QoS) support: Yes
Switch layer: L2+
Switch type: Managed
System event log: Yes
Web-based management: Yes
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Console port: RJ-45/Micro-USB
Power connector: AC-in jack
SFP+ module slots quantity: 4
10G support: Yes
Broadcast storm control: Yes
Flow control support: Yes
Head-of-line (HOL) blocking: Yes
Link aggregation: Yes
Networking standards: IEEE 802.3af/IEEE 802.3at
Port mirroring: Yes
Rate limiting: Yes
Spanning tree protocol: Yes
VLAN support: Yes
Forwarding rate: 95.23
Jumbo frames: 9000
Jumbo frames support: Yes
MAC address table: 16000
Packet buffer memory: 12
Store-and-forward: Yes
Switching capacity: 128
Access Control List (ACL): Yes
Authentication: Auto VLAN,Guest VLAN
BPDU filtering/protection: Yes
DHCP features: DHCP client/DHCP relay/DHCP server
IGMP snooping: Yes
IP-MAC-Port binding: Yes
MAC address filtering: Yes
SSH/SSL support: Yes
Static port security: Yes
Multicast support: Yes
Form factor: 1U
LED indicators: Yes
Number of fans: 3
Product colour: Black
Rack mounting: Yes
Reset button: Yes
AC input frequency: 50/60
AC input voltage: 100 – 240
Power consumption (max): 486.2
Power source: AC
Power supply included: Yes
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 30
Power over Ethernet 4PPoE (PoE++) ports quantity: 8
Power over Ethernet plus (PoE+) ports quantity: 16
Total Power over Ethernet (PoE) budget: 500
Heat dissipation: 1658.78
Operating relative humidity (H-H): 10 – 90
Operating temperature (T-T): 0 – 40
Storage relative humidity (H-H): 5 – 90
Storage temperature (T-T): -40 – 70
Depth: 330
Height: 44
Width: 440
Cables included: AC
Quick start guide: Yes
Certification: CE, FCC, RoHS
Series: Omada
Model name: SG3428XMPP
Units per Shipping Box: 1
Unit Calculated Volume: 0.02355
Unit Calculated Weight: 6.2
