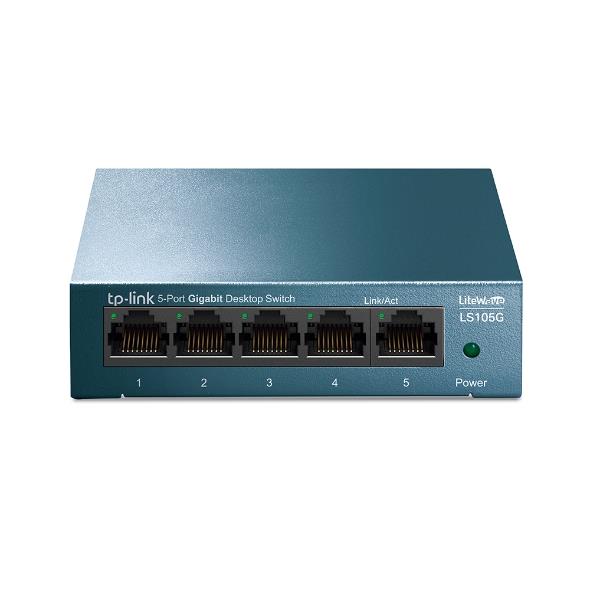

Switch|TP-LINK|LS105G|5x10Base-T / 100Base-TX / 1000Base-T|LS105G

Tootja kood (MPN): LS105G
ELKO kood: 1269402
Description:

Increase Your Network Speed and Save Energy

Let LiteWave Bring You Lighter Network Life
The TP-Link LiteWave Series Unmanaged Switches provide easy and affordable way to expand your wired network. They are easy to use and reliable. With these plug-and-play switches, you can expand your network connections to multiple devices instantly. With all ports support Auto-MDI/MDIX, there’s no need to worry about the type of cable to use.

Go Green with Your Ethernet
The LiteWave Series also supports energy-efficient technology, helping you save power and money. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!

Durable Metal Casing
The interior components of LS105G are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, LS105G delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.

Use Where You Need, However You Need
The LS105G is fully compatible with networked devices such as computers, printers, webcams, IPTVs. It has a wide range of application scenarios and is suitable for networking in school dormitories, surveillance, homes, and small businesses.

• 10/100/1000Mbos Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
• Green Ethernet technology saves power
• IEEE 802.3X flow control provides reliable data transfer
• Steel housing, desktop or wall-mounting design
• Support 802.1p/DSCP QoS function
• Plug and play, no configuration needed

Summary: TP-Link 5-Port 10/100/1000Mbps Desktop Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Wall mountable
Vendor Homepage: https://www.tp-link.com/uk/business-networking/unmanaged-switch/ls105g/#overview
Category Code: SWI
Unit Box Height: 0.093
Unit Box Length: 0.13
Unit Box Width: 0.125
Quality of Service (QoS) support: Yes
Switch type: Unmanaged
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity: 5
Power connector: DC-in jack
10G support: No
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Networking standards: IEEE 802.1p/IEEE 802.3ab/IEEE 802.3i/IEEE 802.3u/IEEE 802.3x
Forwarding rate: 7.4
Jumbo frames: 16000
Jumbo frames support: Yes
MAC address table: 2000
Packet buffer memory: 1
Switching capacity: 10
Housing material: Metal
LED indicators: Activity/LAN/Power
Product colour: Blue
Rack mounting: No
Wall mountable: Yes
Input current: 0.6
Input voltage: 5
Power consumption (max): 2.776
Power source: DC
Power supply included: Yes
Power over Ethernet (PoE): No
Heat dissipation: 9.466
Operating relative humidity (H-H): 10 – 90
Operating temperature (T-T): 0 – 40
Storage relative humidity (H-H): 5 – 90
Storage temperature (T-T): -40 – 70
Depth: 98
Height: 25
Width: 99.8
Quick start guide: Yes
Package depth: 128
Package height: 92
Package weight: 290
Package width: 125
Certification: CE, FCC, RoHS
Harmonized System (HS) code: 85176990
Model: LS105G
Model name: LS105G
Units per Pallet: 0
Units per Shipping Box: 36
Unit Calculated Volume: 0.001787
Unit Calculated Weight: 0.372
