Switch|TP-LINK|ES205G|Switch type Managed|5xRJ-45 ports|RJ-45 Ports Type Gigabit Ethernet (10/100/1000)|ES205G

Tootja kood (MPN): ES205G
ELKO kood: 1428286
Description:

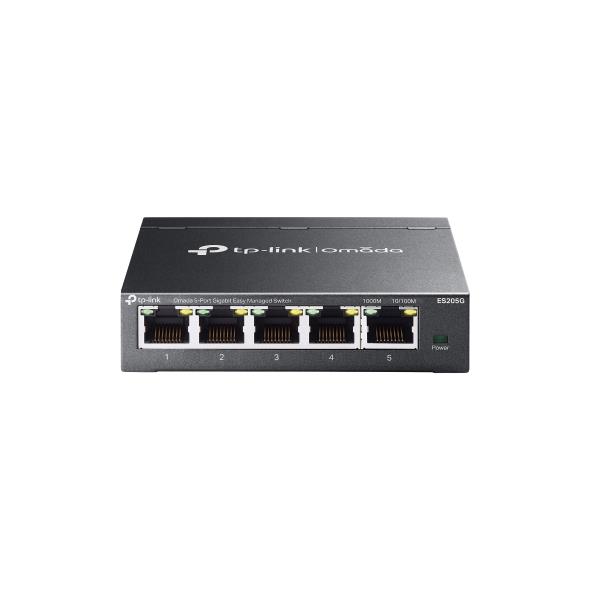

Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+

Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.

– Easy to Use
– Hardware, Software, or Cloud-Based Controllers
– Centralized Management via Web or Omada App
– Zero-Touch Provisioning (ZTP)

Abundant Functions for Reliable Surveillance Networking
– Transmission Distance up to 250 m
– Priority Video Quality Guaranteed
– Secure Traffic Separation via Port Isolation
– PoE Auto Recovery

Multiple Application Scenarios

Surveillance
Works with IP Cameras

Conference Call
Works with IP Phones

Wi-Fi Coverage
Works with Access Points

Wired Connections
Works with Non-PoE Devices such as PCs and Printers

Compact and Durable Metal Casing, Featuring Desktop/Wall Mounting and a Fanless Design

• 5× 10/100/1000Mbps RJ45 ports (4× 802.3at/af-compliant PoE+)
• 65W Power Budget, with up to 30W for each PoE port*
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralized Cloud Management via the web or the Omada app†
• Up to 250m PoE**, QoS△, PoE Auto Recovery‡, and Port Isolation for reliable surveillance networking
• Automatic Loop Prevention, VLAN, and IGMP Snooping
• Fanless design for silent operation
• Durable metal casing and desktop/wall mounting design

Summary: TP-Link Omada 5-Port Gigabit Easy Managed Switch with 4-Port PoE+. Switch type: Managed. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 8000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3at, IEEE 802.3x. DC input voltage: 53.5 V. Power over Ethernet (PoE). Wall mountable
Vendor Homepage: https://www.tp-link.com/au/business-networking/omada-switch-easy-managed/es205g/#highlights
Category Code: SWI
Unit Box Height: 0.125
Unit Box Length: 0.13
Unit Box Width: 0.09
Cloud-managed: Yes
Quality of Service (QoS) support: Yes
Switch type: Managed
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
10G support: No
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Flow control support: Yes
Link aggregation: Yes
Networking standards: IEEE 802.1ab/IEEE 802.1p/IEEE 802.1Q/IEEE 802.3at/IEEE 802.3x
Port mirroring: Yes
Virtual LAN features: MTU VLAN/Port-based VLAN/Tagged VLAN
VLAN support: Yes
Transmission distance (max): 0.25
Forwarding rate: 7.4
Jumbo frames: 15
Jumbo frames support: Yes
MAC address table: 8000
Packet buffer memory: 4
Store-and-forward: Yes
Switching capacity: 10
DHCP features: DHCP client
IGMP snooping: Yes
Loop protection: Yes
LED indicators: Yes
Product colour: Black
Reset button: Yes
Wall mountable: Yes
Fanless: Yes
DC input voltage: 53.5
Power source: AC/DC
Power supply included: Yes
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 4
Power over Ethernet (PoE) power per port: 30
Power over Ethernet plus (PoE+) ports quantity: 4
Total Power over Ethernet (PoE) budget: 65
Operating relative humidity (H-H): 10 – 90
Operating temperature (T-T): 0 – 40
Storage relative humidity (H-H): 5 – 90
Storage temperature (T-T): -40 – 70
Depth: 98
Height: 25
Width: 100
User guide: Yes
Package type: Box
Compliance certificates: CE/Federal Communications Commission (FCC)/RoHS
Model name: ES205G
Unit Calculated Volume: 0.00146
Unit Calculated Weight: 0.45
