Switch|TP-LINK|Desktop/pedestal|16x10Base-T / 100Base-TX|PoE+ ports 16|TL-SL1218P

Tootja kood (MPN): TL-SL1218P
ELKO kood: 1311791
Description:

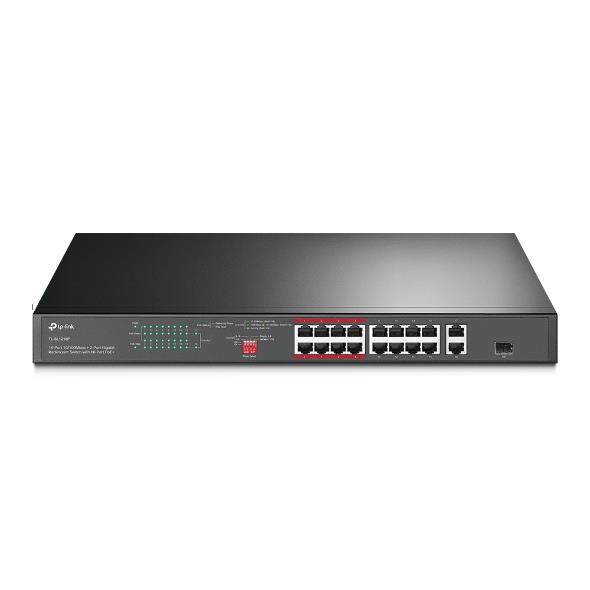

Professional 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount Switch with 16-Port PoE+
Plug and Play, with PoE Transmission for Surveillance up to 250 m

Dedicated 16-Port PoE+ Switch (150 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 150 W PoE power budget for the 16× PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

Ideal for IP Surveillance—Up to 250 m Transmission
With extend mode, the PoE transmission distance reaches up to 250 m—perfect for IP Camera deployment in large areas.

Ideal for IP Surveillance —Higher Performance and Security
Priority Mode and Isolation Mode make surveillance smoother and safer.

Priority Video Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–8 when one-touch Priority Mode is on.

One-Click Traffic Separation for Ports 1-16
With one click, Isolation Mode easily divides traffic for ports 1–16 to avoid snooping and tampering. This enables the switch to isolate broadcast storm, improving LAN security and data transmission.

Smooth HD Video Monitoring
2× gigabit RJ45 ports and 1× combo gigabit SFP slot ensure smooth streaming even when 16× HD IP cameras work simultaneously.

Intelligent Power Management to Prevent Power Overload
When your total power consumption exceeds 150 W, Intelligent Power Management automatically cuts lower priority ports’ power to ensure high-priority ports’ power supply. This protects the device from power overload operation. It also automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.

Wide Operating Temperature with Good Heat Dissipation
Durable metal casing and professional heat dissipation design ensure the wide operating temperature (0–50℃) with reliability.

Multiple Application Scenarios
The TL-SL1218P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.

• 16× PoE+ 10/100 Mbps RJ45 ports, 2× Gigabit RJ45 ports, and 1× combo Gigabit SFP slot
• High PoE power budget with up to 30 W for each PoE port and 150 W for all PoE ports
• Up to 250 m data and power transmission under extend mode specially designed for surveillance system
• Priority mode for ports 1–8 to guarantees the quality of sensitive applications like video monitor
• Isolation Mode allows one-click client traffic separation for higher security and performance
• Easy to use, with no configuration and installation needed

Summary: TP-Link 16-Port 10/100 Mbps + 2-Port Gigabit Rackmount PoE Switch with 16-Port PoE+. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 18. MAC address table: 8000 entries, Switching capacity: 7.2 Gbit/s. Networking standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Vendor Homepage: https://www.tp-link.com/uk/business-networking/poe-switch/tl-sl1218p/
Category Code: SWI
Unit Box Height: 0.08
Unit Box Length: 0.53
Unit Box Width: 0.25
Switch type: Unmanaged
Traffic classification: Yes
Basic switching RJ-45 Ethernet ports quantity: 18
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Combo SFP ports quantity: 1
Fast Ethernet (copper) ports quantity: 16
Gigabit Ethernet (copper) ports quantity: 2
10G support: No
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Cable types supported: Cat3/Cat4/Cat5/Cat5e/Cat6
Networking standards: IEEE 802.3af/IEEE 802.3at/IEEE 802.3x
Forwarding rate: 5.36
Jumbo frames: 10000
Jumbo frames support: Yes
MAC address table: 8000
Packet buffer memory: 4.1
Switching capacity: 7.2
Form factor: 1U
Housing material: Metal
LED indicators: Yes
Number of fans: 2
Product colour: Black
Rack mounting: Yes
AC input frequency: 50 – 60
AC input voltage: 100 – 240
Power consumption (max): 172.8
Power source: AC
Power supply included: Yes
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) power per port: 30
Power over Ethernet plus (PoE+) ports quantity: 16
Total Power over Ethernet (PoE) budget: 150
Heat dissipation: 589.25
Operating relative humidity (H-H): 10 – 90
Operating temperature (T-T): 0 – 50
Storage relative humidity (H-H): 5 – 90
Storage temperature (T-T): -40 – 70
Depth: 180
Height: 44
Width: 440
Cables included: AC
Quick start guide: Yes
Package depth: 528
Package height: 80
Package weight: 2800
Package width: 250
Certification: CE, FCC, RoHS
Harmonized System (HS) code: 85176990
Model: TL-SL1218P
Units per Shipping Box: 6
Unit Calculated Volume: 0.01335
Unit Calculated Weight: 3.06
