Switch|TP-LINK|8x10Base-T / 100Base-TX|TL-SF1008P
39,85 €
1 laos
Tellitud: 0
Saadaval olevad esemed: 1
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
XS
0 ( 000 )
23
32
44
55
S
24
23
32
44
55
M
25
23
32
44
55
L
26
23
32
44
55
M
29
23
32
44
55
L
32
23
32
44
55
M
34
23
32
44
55
4 - Päeva Transport
apr. 10 apr. 14
Kirjeldus
Tootja kood (MPN): TL-SF1008P
ELKO kood: 1119307
Description:
What This Product Does

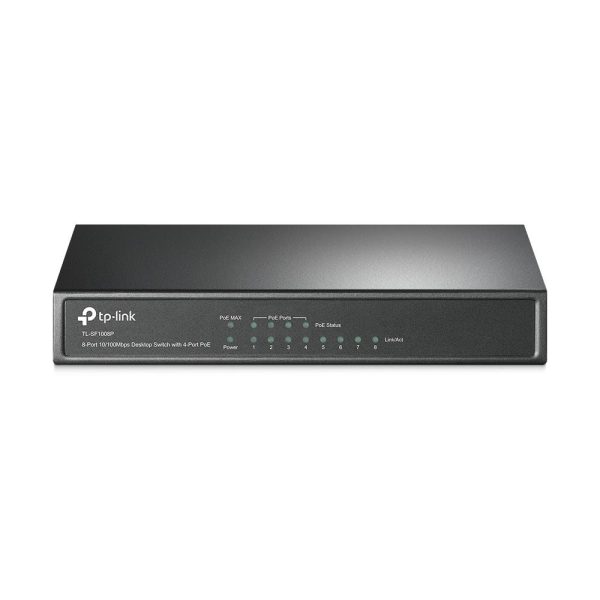

TL-SF1008P is an 8 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Power over Ethernet
4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
-Overload Arrangement
TL-SF1008P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 57W, a priority will be arranged among the PoE ports, then the system will cut o‑ the power of the lowest-priority port.
-Port Priority Function
Priority (port-1=port-2=port-3>port-4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 57W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 12W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 12W, no power will be supplied to Port 4.
Easy To Use
TL-SF1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-LINK’s TL-SF1008P 8-Port 10/100Mbps Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- Supports PoE power up to 15.4W for each PoE port
- Supports PoE power up to 57W for all PoE ports
- Requires no configuration and installation
Summary: TP-Link 8-Port 10/100Mbps Desktop PoE Switch with 4-Port. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 2000 entries, Switching capacity: 1.6 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3af, IEEE 802.3u, IEEE 802.3x. DC input voltage: 53.5 V. Power connector: DC-in jack. Power over Ethernet (PoE). Wall mountable
Vendor Homepage: https://www.tp-link.com/au/products/details/cat-42_TL-SF1008P.html#overview
Category Code: SWI
Unit Box Height: 0.07
Unit Box Length: 0.28
Unit Box Width: 0.225
Switch type: Unmanaged
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity: 8
Power connector: DC-in jack
10G support: No
Auto MDI/MDI-X: Yes
Auto-negotiation: Yes
Cable types supported: Cat3/Cat4/Cat5/Cat5e
Copper ethernet cabling technology: 100BASE-TX/10GBASE-T
Flow control support: Yes
Full duplex: Yes
Half duplex: Yes
MAC address auto-aging supported: Yes
MAC address auto-learning supported: Yes
Networking standards: IEEE 802.3/IEEE 802.3af/IEEE 802.3u/IEEE 802.3x
Forwarding rate: 1.1904
MAC address table: 2000
Store-and-forward: Yes
Switching capacity: 1.6
IPv4 & IPv6 features: IPv6 portal
Housing material: Metal
LED indicators: Yes
Product colour: Black
Rack mounting: No
Stackable: No
Wall mountable: Yes
Fanless: Yes
AC input frequency: 50
AC input voltage: 220
DC input voltage: 53.5
Input current: 1.31
Power consumption (max): 66
Power source: DC/PoE
Power supply included: No
Power over Ethernet (PoE): Yes
Power over Ethernet plus (PoE+) ports quantity: 8
Total Power over Ethernet (PoE) budget: 57
Heat dissipation: 248.93
Operating relative humidity (H-H): 10 – 90
Operating temperature (T-T): 0 – 40
Storage relative humidity (H-H): 5 – 90
Storage temperature (T-T): -40 – 70
Depth: 98
Height: 27
Width: 171
User guide: Yes
AC adapter included: Yes
Package depth: 280
Package height: 68
Package type: Box
Package weight: 970
Package width: 223
Sustainability compliance: Yes
Compliance certificates: CE/Federal Communications Commission (FCC)/RoHS
Harmonized System (HS) code: 85176990
Model: TL-SF1008P
Units per Shipping Box: 1
Unit Calculated Volume: 0.00441
Unit Calculated Weight: 0.96
