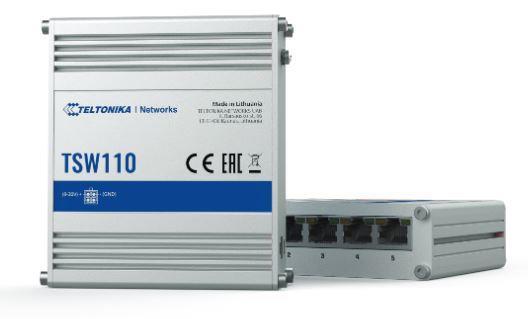

Switch|TELTONIKA|TSW110000000|Switch type Unmanaged|Switch layer L2|5xRJ-45 ports|RJ-45 Ports Type Gigabit Ethernet (10/100/1000)|Power over Ethernet (PoE) Yes|TSW110
49,70 €
4 laos
Tellitud: 0
Saadaval olevad esemed: 4
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
XS
0 ( 000 )
23
32
44
55
S
24
23
32
44
55
M
25
23
32
44
55
L
26
23
32
44
55
M
29
23
32
44
55
L
32
23
32
44
55
M
34
23
32
44
55
4 - Päeva Transport
veebr. 26 märts 02
Kirjeldus
Tootja kood (MPN): TSW110
ELKO kood: 1436740
Description:
PLUG-N-PLAY
No additional configuration needed
DURABILITY
Rugged aluminium housing
MOUNTING
DIN rail and surface mounting options
STATUS LEDS
1 x Power, 10 x Ethernet
9-30 V
Wide range of supported power supply voltages
GIGABIT ETH
5 x Gigabit Ethernet with speeds up to 1000 Mbps
- TSW110 is a layer 2 unmanaged switch, which is a simplified version of our earlier product – TSW100
- Possible to power up through the first LAN port
- It has five 10/100/1000 Mbps Ethernet ports for an economical high-bandwidth solution
- It offers a wide range of supported power supply voltages (9-30 V)
- Ideal for professional high bandwidth applications to provide reliable data connection
Summary: Teltonika TSW110. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u. DC input voltage: 30 V. Power over Ethernet (PoE)
Vendor Homepage: https://teltonika-networks.com/product/tsw110/
Category Code: SWI
Unit Box Height: 0.07
Unit Box Length: 0.175
Unit Box Width: 0.15
Switch layer: L2
Switch type: Unmanaged
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
10G support: No
Auto MDI/MDI-X: Yes
Ethernet LAN data rates: 10,100,1000
Networking standards: IEEE 802.3/IEEE 802.3ab/IEEE 802.3az/IEEE 802.3u/IEEE 802.3x
Jumbo frames: 9216
Jumbo frames support: Yes
MAC address table: 2000
Packet buffer memory: 0.128
Switching capacity: 10
DIN rail mounting: Yes
Housing material: Aluminium
International Protection (IP) code: IP30
LED indicators: Yes
Product colour: Blue/Grey
AC input voltage: 100 – 240
DC input voltage: 30
Power consumption (typical): 1.8
Power supply included: Yes
Power over Ethernet (PoE): Yes
Operating relative humidity (H-H): 10 – 90
Operating temperature (T-T): -40 – 75
Depth: 85
Height: 30
Weight: 227
Width: 100
Quick start guide: Yes
Package type: Box
Model: TSW110
Model name: TSW110000000
Units per Shipping Box: 1
Unit Calculated Volume: 0.001837
Unit Calculated Weight: 0.393
