Switch|TELTONIKA|TSW101000000|PoE ports 4|60 Watts|TSW101
79,61 €
20 laos
Tellitud: 0
Saadaval olevad esemed: 20
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
XS
0 ( 000 )
23
32
44
55
S
24
23
32
44
55
M
25
23
32
44
55
L
26
23
32
44
55
M
29
23
32
44
55
L
32
23
32
44
55
M
34
23
32
44
55
4 - Päeva Transport
apr. 10 apr. 14
Kirjeldus
Tootja kood (MPN): TSW101
ELKO kood: 1435098
Description:

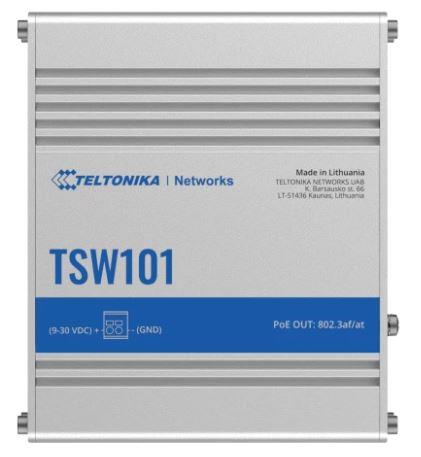

AUTOMOTIVE POE+ SWITCH
Our first-ever switch for the automotive industry features five Gigabit Ethernet ports with PoE+ support to connect multiple devices to the network and power them up using the same interfaces. Enjoy reliable high bandwidth connectivity in a simple, economical, and easy-to-install solution.
Summary: Teltonika TSW101. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. MAC address table: 2000 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u. Power connector: Terminal block (2-pin). Power over Ethernet (PoE)
Vendor Homepage: https://teltonika-networks.com/products/switches/tsw101
Category Code: SWI
Unit Box Height: 0.15
Unit Box Length: 0.17
Unit Box Width: 0.035
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Power connector: Terminal block (2-pin)
10G support: No
Auto MDI/MDI-X: Yes
Ethernet LAN data rates: 10,100,1000
Networking standards: IEEE 802.3/IEEE 802.3az/IEEE 802.3u
Jumbo frames: 9216
Jumbo frames support: Yes
MAC address table: 2000
Switching capacity: 10
Housing material: Aluminium
International Protection (IP) code: IP30
LED indicators: Power/Status
Product colour: Metallic
Input voltage: 9 – 30
Power consumption (max): 2.31
Power consumption (typical): 0.64
Power source: DC
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 4
Power over Ethernet (PoE) power per port: 30
Power over Ethernet (PoE) type supported: Passive PoE
Total Power over Ethernet (PoE) budget: 120
Operating relative humidity (H-H): 10 – 90
Operating temperature (T-T): -40 – 75
Depth: 32
Height: 95
Weight: 354
Width: 115
Certification: CE, REACH, RoHS, WEEE
TSW101 CE
TSW101 UKCA
TSW101 FCC
TSW101 IC
TSW101 CB
TSW101 RCM
E-Mark
Harmonized System (HS) code: 851762
Model: TSW101
Model name: TSW101000000
Units per Shipping Box: 1
Unit Calculated Volume: 0.0008925
Unit Calculated Weight: 0.44
