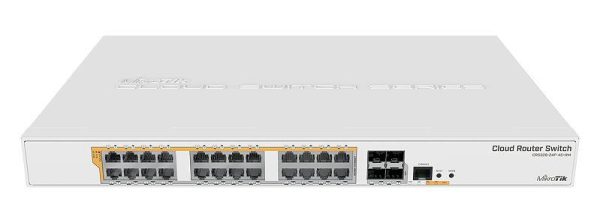

Switch|MIKROTIK|Type L3|Rack|24x10Base-T / 100Base-TX / 1000Base-T|4xSFP+|1xRJ45|CRS328-24P-4S+RM

Tootja kood (MPN): CRS328-24P-4S+RM
ELKO kood: 1236894
Description:

CRS328-24P-4S+RM is a 28 independent port switch, it has 24 Gigabit Ethernet ports, which offer different power output options: Passive PoE, low voltage PoE, 802.3af/at (Type 1 “PoE” / Type 2 “PoE+”) with auto-sensing. PoE-Out is passed over mode B pins (4,5+)(7,8-). The four SFP+ ports provide up to 10 Gbps connectivity options via either optical fiber or Ethernet modules (not included).

CRS328-24P-4S+RM comes in a 1U rackmount case with 100-240 V AC 500 W power supply built-in. The device consumes up to 44 W leaving guaranteed 450 W (3×150 W per every 8 Ethernet ports) to power your PoE devices. Each port can provide up to 30 W of power with any power output option you choose.

The device has a “Dual boot” feature that allows you to choose between two operating systems – RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with disruptive price, providing best price/performance on the market.

• CPU temperature monitor
• Current Monitor
• PCB temperature monitor
• Voltage Monitor
• Mode button

Summary: Mikrotik CRS328-24P-4S+RM. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24, Console port: RJ-45. MAC address table: 16000 entries, Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.3ad. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
Vendor Homepage: https://mikrotik.com/product/crs328_24p_4s_rm
Category Code: SWI
Unit Box Height: 0.125
Unit Box Length: 0.59
Unit Box Width: 0.39
Quality of Service (QoS) support: Yes
Switch layer: L2/L3
Switch type: Managed
System event log: Yes
Basic switching RJ-45 Ethernet ports quantity: 24
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Console port: RJ-45
SFP+ module slots quantity: 4
Auto-sensing: Yes
Broadcast storm control: Yes
Link aggregation: Yes
Networking standards: IEEE 802.1Q/IEEE 802.3ad
Number of VLANs: 4000
Port mirroring: Yes
VLAN support: Yes
Forwarding rate: 95.2
Jumbo frames: 10218
Jumbo frames support: Yes
MAC address table: 16000
Switching capacity: 128
Throughput: 64000
Access Control List (ACL): Yes
IGMP snooping: Yes
Management protocols: SNMP
Form factor: 1U
LED indicators: Yes
Number of fans: 2
Product colour: White
Rack mounting: Yes
Built-in processor: Yes
Flash memory: 16
Internal memory: 512
Mean time between failures (MTBF): 200000
Processor frequency: 800
Processor manufacturer: ARM
AC input voltage: 100 – 240
Number of power supply units: 2
Power consumption (max): 44
Power source: AC
Power supply included: Yes
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 24
Power over Ethernet (PoE) power per port: 30
Power over Ethernet (PoE) type supported: Passive PoE/PoE+
Power over Ethernet (PoE) voltage: 26
Total Power over Ethernet (PoE) budget: 450
Operating temperature (T-T): -20 – 60
Depth: 300
Height: 44
Width: 443
Cables included: AC
Rack mount kit: Yes
Harmonized System (HS) code: 85176990
Units per Shipping Box: 1
Unit Calculated Volume: 0.02876
Unit Calculated Weight: 4.8
