Switch|DAHUA|PoE ports 4|60 Watts|SF1005P
34,15 €
1 laos
Tellitud: 0
Saadaval olevad esemed: 1
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
XS
0 ( 000 )
23
32
44
55
S
24
23
32
44
55
M
25
23
32
44
55
L
26
23
32
44
55
M
29
23
32
44
55
L
32
23
32
44
55
M
34
23
32
44
55
4 - Päeva Transport
veebr. 10 veebr. 14
Kirjeldus
Tootja kood (MPN): SF1005P
ELKO kood: 1436363
Description:

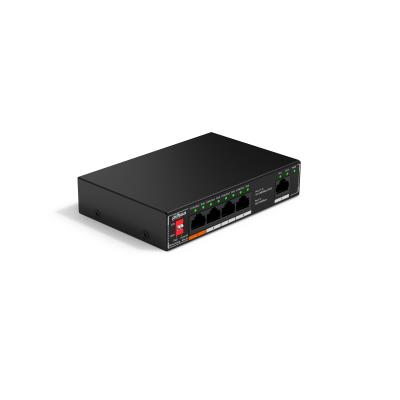

DH-SF1005P is an unmanaged desktop switch with 4 × 10/100 Mbps PoE Ports. It provides 4 × 10/100 Mbps Ethernet ports and 1 × 10/100 Mbps uplink ports. The product is equipped with two types of transmission modes (Extend Mode On and Extend Mode Off). It also supports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.
Intelligent PoE
Provides control over power consumption and offers real-time monitoring to ensure power supplies receive priority with important ports and to prevent malfunctions caused by changes in power consumption. Supports ultra wide power supplies and is able to adapt to IPC power fluctuations.
Hi-PoE 60W (Orange Port)
In addition to the IEEE802.3af and IEEE802.3at standards, orange port also supports a maximum power output of 60W for powering high- power devices.
PoE Watchdog
Adopts the innovative PoE Watchdog. PoE Watchdog can be switched on by dialing or turning on the WEB page switch. It enables the switch to automatically detect port status and restart failed ports to recover connection in case of IPC connection exception. This enables intelligent operation and maintenance management in its truest sense, effectively reducing manual maintenance costs.
Long Distance PoE
Breaking the IEEE 100 m transmission limit, the device supports 250 m long distance PoE transmission with a more flexible networking.
8-pin Assignment PoE Power Supply
The 8-pin Ethernet port supports power supply, to enhance front-end and rear-end compatibility.
Reduce cable loss and promote loading capacity.
- Intelligent PoE
- Hi-PoE 60W (orange port)
- 8-pin assignment PoE power supply
- Long distance PoE
- PoE watchdog
- Wide working temperature
Summary: Dahua Technology PoE SF1005P. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. Switching capacity: 1.8 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. DC input voltage: 48 – 57 V. Power over Ethernet (PoE). Wall mountable
Vendor Homepage: https://www.dahuasecurity.com/products/All-Products/Transmission/IT-Channel-Products/PoE-Switch/SF1005P
Category Code: SWI
Unit Box Height: 0.08
Unit Box Length: 0.27
Unit Box Width: 0.24
Switch layer: L2
Switch type: Unmanaged
Basic switching RJ-45 Ethernet ports quantity: 5
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity: 5
Uplink ports quantity: 1
10G support: No
Cable types supported: Cat5e/Cat6
Copper ethernet cabling technology: 100BASE-TX/10BASE-T
Ethernet LAN data rates: 10,100
Flow control support: Yes
Full duplex: Yes
Networking standards: IEEE 802.3/IEEE 802.3u/IEEE 802.3x
Forwarding rate: 0.744
Packet buffer memory: 0.125
Switching capacity: 1.8
LED indicators: Yes
Product colour: Black
Rack mounting: No
Wall mountable: Yes
DC input voltage: 48 – 57
Power consumption (max): 60
Power source: DC/PoE
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 4
Total Power over Ethernet (PoE) budget: 60
Operating relative humidity (H-H): 5 – 95
Operating temperature (T-T): -10 – 55
Depth: 85
Height: 26
Weight: 300
Width: 130
Model: SF1005P
Units per Pallet: 0
Units per Shipping Box: 1
Unit Calculated Volume: 0.005184
Unit Calculated Weight: 0.94
