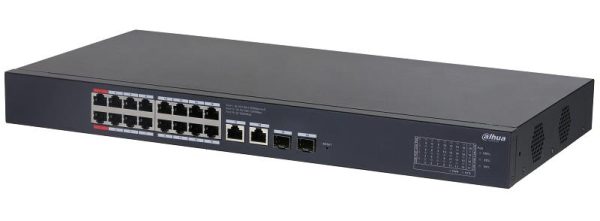

Switch|DAHUA|Desktop/pedestal|Rack|16x10Base-T / 100Base-TX / 1000Base-T|2xSFP|PoE ports 16|CS4220-16GT-240
213,55 €
9 laos
Tellitud: 0
Saadaval olevad esemed: 9
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
XS
0 ( 000 )
23
32
44
55
S
24
23
32
44
55
M
25
23
32
44
55
L
26
23
32
44
55
M
29
23
32
44
55
L
32
23
32
44
55
M
34
23
32
44
55
4 - Päeva Transport
apr. 13 apr. 17
Kirjeldus
Tootja kood (MPN): CS4220-16GT-240
ELKO kood: 1432589
Description:
Highly intuitive, the Smart Managed Switch can manage local networks. With the DoLynk Care platform, it can also perform cloud management. The switch performs operation and maintenance using
topology visualization on front-end, transmission and back-end storage devices that are in the security system and IT system. With its full metal design, the switch has great heat dissipation and can operate in
temperatures ranging -10°C to 55°C. It offers EMC and has protection against overvoltage, overcurrent, static electricity, lightning strikes, pulses and other types of interference. For the PoE series Smart
Managed Switch, power is supplied up to 250 meters away. The orange port supplies up to 60 W and the red port provides up to 90 W. Also, link aggregation and STP are available on select models to ensure
the network remains stable. The switch can be used in small and medium-sized businesses such as supermarkets, offices, restaurants, cafés and hotels.
- Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x, IEEE802.3ab,IEEE802.3z standards
- Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt power supply standards
- Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE
- A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof
Summary: Dahua Technology CS4220-16GT-240. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 18. MAC address table: 8000 entries, Switching capacity: 40 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x, IEEE…. Power over Ethernet (PoE). Rack mounting
Vendor Homepage: https://transmission.dahuasecurity.com/en/product-list/Business/CloudManagementSolution/NetworkSwitch/CS4220-16GT-240
Category Code: SWI
Unit Box Height: 0.09
Unit Box Length: 0.54
Unit Box Width: 0.34
Cloud-managed: Yes
Switch layer: L2
Switch type: Managed
Web-based management: Yes
Basic switching RJ-45 Ethernet ports quantity: 18
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
SFP module slots quantity: 2
10G support: No
Flow control support: Yes
Networking standards: IEEE 802.3/IEEE 802.3ab/IEEE 802.3ae/IEEE 802.3at/IEEE 802.3bt/IEEE 802.3u/IEEE 802.3x/IEEE 802.3z
Number of VLANs: 32
Spanning tree protocol: Yes
VLAN support: Yes
Forwarding rate: 29.76
Jumbo frames: 15360
Jumbo frames support: Yes
MAC address table: 8000
Switching capacity: 40
DHCP features: DHCP client
Loop protection: Yes
Housing material: Metal
Product colour: Black
Rack mounting: Yes
Reset button: Yes
AC input frequency: 47/63
AC input voltage: 100 – 240
Power consumption (typical): 265
Power source: AC/DC/PoE
Power supply included: Yes
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 16
Total Power over Ethernet (PoE) budget: 240
Operating relative humidity (H-H): 5 – 95
Operating temperature (T-T): -10 – 55
Storage relative humidity (H-H): 5 – 95
Storage temperature (T-T): -40 – 70
Depth: 220
Height: 44
Weight: 2370
Width: 440
Package depth: 342
Package height: 90
Package weight: 3020
Package width: 540
Units per Pallet: 0
Units per Shipping Box: 5
Unit Calculated Volume: 0.01987
Unit Calculated Weight: 3.6
