Kirjeldus
Tootja kood (MPN): SF1008LP
ELKO kood: 1435621
Description:

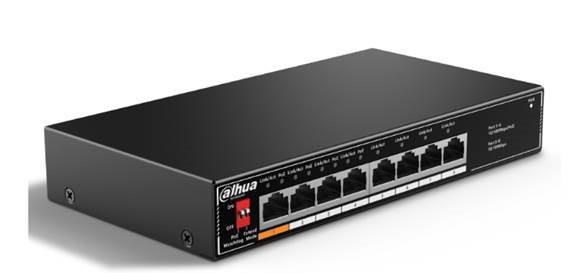

DH-SF1008LP is an unmanaged Desktop Switch with 4 × 10/100 Mbps PoE Ports. It provides 8 × 10/100 Mbps Ethernet ports. The product is equipped with two types of transmission modes (Extend Mode On/
Extend Mode Off). The Orange port supports the Hi-PoE standards. It also supports PoE watchdog to avoid manually maintenance and device restart, which can realize the intelligent management and reduce the cost.
Intelligent PoE
Provides control over power consumption and offers real-time monitoring to ensure power supplies receive priority with important ports and to prevent malfunctions caused by changes in power consumption. Supports ultra wide power supplies and is able to adapt to IPC power fluctuations.
Hi-PoE 60W (Orange Port)
In addition to the IEEE802.3af and IEEE802.3at standards, orange port also supports a maximum power output of 60W for powering high- power devices.
PoE Watchdog
Adopts the innovative PoE Watchdog. PoE Watchdog can be switched on by dialing or turning on the WEB page switch. It enables the switch to automatically detect port status and restart failed ports to recover
connection in case of IPC connection exception. This enables intelligent operation and maintenance management in its truest sense, effectively reducing manual maintenance costs.
Long Distance PoE
By dialing or enabling long-range transmission on the WEB interface, the transmission distance of a PoE port can be up to 250 m, meeting the requirements of wired transmission (bandwidth reduced to 10 Mbps).
8-pin Assignment PoE Power Supply
Supports 8-pin simultaneous power supply (1/2/4/5 positive, 3/6/7/8 negative). Signal lines and idle lines supply power at the same time. Compatibility with IPC is enhanced. Cable loss is reduced. Loading capacity is increased.
- Intelligent PoE
- Hi-PoE 60W (orange port)
- 8-pin assignment PoE power supply
- Long distance PoE
- PoE watchdog
- Wide working temperature
Summary: Dahua Technology PoE SF1008LP. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 2048 entries, Switching capacity: 1.8 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x. DC input voltage: 48 – 57 V. Power over Ethernet (PoE). Wall mountable
Vendor Homepage: https://www.dahuasecurity.com/products/All-Products/Transmission/IT-Channel-Products/PoE-Switch/SF1008LP
Category Code: SWI
CnCode: 85176200
Unit Box Height: 0.08
Unit Box Length: 0.27
Unit Box Width: 0.24
Switch layer: L2
Switch type: Unmanaged
Basic switching RJ-45 Ethernet ports quantity: 8
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Fast Ethernet (copper) ports quantity: 8
10G support: No
Auto MDI/MDI-X: Yes
Copper ethernet cabling technology: 100BASE-TX/10BASE-T
Ethernet LAN data rates: 10,100
Flow control support: Yes
Full duplex: Yes
Networking standards: IEEE 802.3/IEEE 802.3u/IEEE 802.3x
Forwarding rate: 1.19
MAC address table: 2048
Packet buffer memory: 0.768
Switching capacity: 1.8
Housing material: Metal
LED indicators: Yes
Product colour: Black
Rack mounting: No
Wall mountable: Yes
DC input voltage: 48 – 57
Power consumption (max): 60
Power source: DC/PoE
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 4
Operating relative humidity (H-H): 5 – 95
Operating temperature (T-T): -10 – 55
Storage relative humidity (H-H): 5 – 95
Storage temperature (T-T): -20 – 70
Depth: 100
Height: 30
Weight: 490
Width: 190
Sustainability compliance: Yes
Compliance certificates: CE
Units per Pallet: 0
Units per Shipping Box: 8
Unit Calculated Volume: 0.005809
Unit Calculated Weight: 1.19
