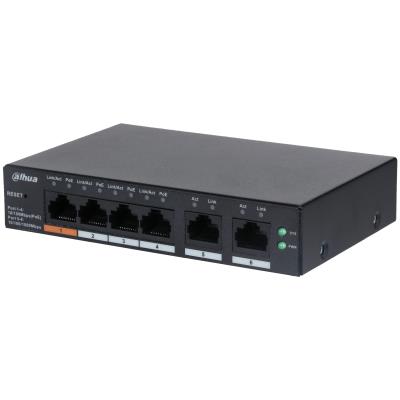

Switch|DAHUA|CS4006-4ET-60|Type L2|Desktop/pedestal|PoE ports 4|CS4006-4ET-60
54,93 €
14 laos
Tellitud: 0
Saadaval olevad esemed: 14
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
XS
0 ( 000 )
23
32
44
55
S
24
23
32
44
55
M
25
23
32
44
55
L
26
23
32
44
55
M
29
23
32
44
55
L
32
23
32
44
55
M
34
23
32
44
55
4 - Päeva Transport
apr. 10 apr. 14
Kirjeldus
Tootja kood (MPN): CS4006-4ET-60
ELKO kood: 1405013
Description:
Highly intuitive, the Smart Managed Switch can manage local networks. With the DoLynk Care platform, it can also perform cloud management. The switch performs operation and maintenance using topology visualization on front-end, transmission and back-end storage devices that are in the security system and IT system. With its full metal design, the switch has great heat dissipation and can operate in temperatures ranging -10°C to 55°C. It offers EMC and has protection against overvoltage, overcurrent, static electricity, lightning strikes, pulses and other types of interference. For the PoE series Smart
Managed Switch, power is supplied up to 250 meters away. The orange port supplies up to 60 W and the red port provides up to 90 W. Also, link aggregation and STP are available on select models to ensure
the network remains stable. The switch can be used in small and medium-sized businesses such as supermarkets, offices, restaurants, cafés and hotels.
Cloud Management
Devices can be managed through the DoLynk Care app and performs real-time monitoring of the network. The app also displays the status of devices, triggers alarms for errors in real time and sends
notifications.
Network Topology Management
Supports the LLDP protocol and is able to generate and display the network topology, so that you can quickly identify issues, and perform operation and maintenance remotely on devices that are in the
topology.
Long Distance PoE
The transmission distance of a PoE port can be up to 250 m, meeting the requirement of wired transmission (bandwidth reduced to 10 Mbps).
PoE Watchdog
Adopts the innovative PoE Watchdog. PoE Watchdog can be switched on by dialing/turning on the WEB page switch. It enables the switch to automatically detect port status and restart the failed ports to recover connection in case of IPC connection exception. This enables intelligent operation and maintenance management in its true sense and effectively reduces manual maintenance costs.
Loop Protection
When a loop is detected, the loop alarm will be triggered and the elimination mechanism will activate to prevent broadcast storms from occurring.
Hi-PoE 60W (Orange Port)
In addition to the IEEE802.3af and IEEE802.3at standards, orange port also supports a maximum power output of 60W for powering highpower devices.
- Meets the requirements of IEEE802.3,IEEE802.3u,IEEE802.3x,IEEE802.3ab standards
- Meets the requirements of IEEE802.3af, IEEE802.3at, Hi-PoE power supply standards
- Manages PoE power consumption and PoE power on/off. Supports Intelligent PoE
- A wide operating temperature range and a full metal casing that is fully-enclosed and dust-proof
Summary: Dahua Technology DH-CS4006-4ET-60. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 6. MAC address table: 8000 entries, Switching capacity: 4.8 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ad, IEEE 802.3u, IEEE 802.3x. Power over Ethernet (PoE). Wall mountable
Vendor Homepage: https://www.dahuasecurity.com/products/All-Products/Transmission/Cloud-Managed-Switches/CS4006-4ET-60
Category Code: SWI
Unit Box Height: 0.08
Unit Box Length: 0.265
Unit Box Width: 0.24
Switch layer: L2
Switch type: Managed
Web-based management: Yes
Basic switching RJ-45 Ethernet ports quantity: 6
Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
Fast Ethernet (copper) ports quantity: 4
Gigabit Ethernet (copper) ports quantity: 2
10G support: No
Networking standards: IEEE 802.3/IEEE 802.3ad/IEEE 802.3u/IEEE 802.3x
Number of VLANs: 32
VLAN support: Yes
Forwarding rate: 3.57
Jumbo frames: 9216
Jumbo frames support: Yes
MAC address table: 8000
Packet buffer memory: 4
Switching capacity: 4.8
DHCP features: DHCP client
Housing material: Metal
LED indicators: Uplink
Product colour: Black
Rack mounting: No
Wall mountable: Yes
Mean time between failures (MTBF): 2039105
Power consumption (max): 65
Power source: AC
Power supply included: Yes
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) ports quantity: 4
Power over Ethernet (PoE) power per port: 30
Total Power over Ethernet (PoE) budget: 60
Ethernet interface type: Fast Ethernet/Gigabit Ethernet
Operating relative humidity (H-H): 5 – 95
Operating temperature (T-T): -10 – 55
Storage relative humidity (H-H): 5 – 95
Storage temperature (T-T): -40 – 70
Depth: 90
Height: 26
Weight: 280
Width: 130
Package depth: 265
Package height: 76
Package weight: 920
Package width: 238
Model name: CS4006-4ET-60
Units per Pallet: 0
Units per Shipping Box: 8
Unit Calculated Volume: 0.005733
Unit Calculated Weight: 1
