NET ROUTER 1000M 7PORT/RB5009UPR+S+IN MIKROTIK
290,15 €
4 laos
Tellitud: 0
Saadaval olevad esemed: 4
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
XS
0 ( 000 )
23
32
44
55
S
24
23
32
44
55
M
25
23
32
44
55
L
26
23
32
44
55
M
29
23
32
44
55
L
32
23
32
44
55
M
34
23
32
44
55
4 - Päeva Transport
apr. 10 apr. 14
Kirjeldus
Tootja kood (MPN): RB5009UPR+S+IN
ELKO kood: 1381193
Description:
It’s all about the power…

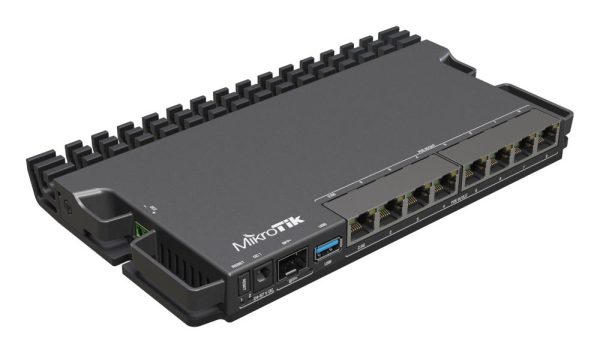

This version of the RB5009 has all the bells and whistles of the previous model: Gigabit Ethernet, 2.5 Gigabit Ethernet, and a 10 Gigabit SFP+ cage for fiber connectivity. It has the speed, the power, and the durability. But this time, we have added PoE-in & PoE-out on all eight Ethernet ports. Combined with the 2-pin connector and the DC jack, you’re getting 10 separate ways of powering. Dual redundant power supplies would usually take your uninterrupted uptime to the next level. RB5009UPr+S+IN takes it one step above that!
All power options support a wide voltage range of 24 – 57 V. However, you can not mix the voltages. If you’re using PoE-out to power other devices, the board will choose the source with the highest voltage (DC jack or the 2-pin connector) to power those.
Each PoE-out port can supply up to 25W of power. All the ports combined are limited to 130W, which should be enough for most setups. You can specify maximum available power from your power sources manually, if necessary. When it comes to PoE-out features, the new RB5009 can trade blows with our legendary PoE switches: CRS354 & CRS328. In the smallest possible form-factor and for the best price on the market!
Protect your uptime, protect your tranquility!
So what exactly happens if there is a problem with one of your power sources? Here’s a quick example: you have 24V on the DC jack, 48V on the 2-pin connector, and 57V on the PoE-in. The board itself gets powered by the highest voltage input – the PoE-in. If there’s a problem, RB5009 will fall back to the second highest voltage – the 2-pin connector. And if that fails – there’s the 24V option on the DC jack.
What about the PoE-out devices? Once again – the highest voltage wins. PoE-out devices will draw power from the 48V source on the 2-pin connector. If that fails – the 24V on the DC jack come into play. The board will always reserve 20 watts to power itself. If there is not enough power for all the PoE-out ports, it will start disabling the ones with the lowest priority. You can set the port priority manually.
This tiny form-factor shines anywhere: from confined research facilities and offices to huge corporate server rooms. And don’t forget that you can mount FOUR of these routers in a single 1U rackmount space
With the new RB5009, we want to empower all the small and medium ISPs that are always on the lookout for the most cost-effective and robust solutions. It is a perfect addition to our previous GPEN devices – a line of products designed to replace the expensive GPON solutions.
With so many powering options and a durable metallic case, the new RB5009 redefines affordable reliability.
Summary: Mikrotik RB5009UPR+S+IN. Networking standards: IEEE 802.3af, IEEE 802.3at, Ethernet interface type: 2.5 Gigabit Ethernet, Gigabit Ethernet, Cabling technology: 10/100/1000Base-T(X). USB version: 3.2 Gen 1 (3.1 Gen 1). Processor model: 88F7040, Processor frequency: 350 MHz, Internal storage capacity: 1 GB. Product colour: Black. Power consumption (typical): 150 W, Power source type: PoE
Vendor Homepage: https://mikrotik.com/product/rb5009upr_s_in#fndtn-specifications
Category Code: ROU
Unit Box Height: 0.08
Unit Box Length: 0.23
Unit Box Width: 0.14
3G/4G USB modem compatibility: No
DSL WAN: No
Ethernet WAN: No
SFP WAN: No
SIM card slot: No
Cabling technology: 10/100/1000Base-T(X)
Ethernet interface type: 2.5 Gigabit Ethernet/Gigabit Ethernet
Networking standards: IEEE 802.3af/IEEE 802.3at
DC-in jack: Yes
Ethernet LAN (RJ-45) ports: 8
Power over Ethernet (PoE) ports quantity: 8
SFP+ module slots quantity: 1
USB ports quantity: 1
USB version: 3.2 Gen 1 (3.1 Gen 1)
Manual: Yes
Certification: CE, EAC, ROHS
Internal memory: 1024
Internal storage capacity: 1
Operating system installed: RouterOS
Processor frequency: 350
Processor model: 88F7040
Temperature monitoring: Yes
Voltage monitoring: Yes
Product colour: Black
Power consumption (typical): 150
Power over Ethernet (PoE): Yes
Power source type: PoE
Operating temperature (T-T): -40 – 60
Model: RB5009UPr+S+IN
Units per Shipping Box: 1
Unit Calculated Volume: 0.002576
Unit Calculated Weight: 1.26
