NB ACC DOCKING STATION/USB CSV-3103D CLUB3D

Tootja kood (MPN): CSV-3103D
ELKO kood: 1448469
Description:

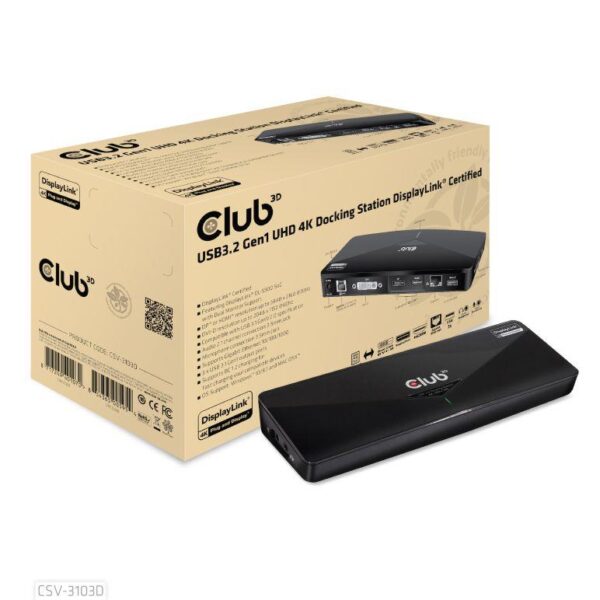

SenseVision USB 3.0 4K Docking Station

The Club 3D Universal USB 3.0 4K Docking station is designed for all your connectivity needs. With the built-in USB 3.0 ports, the docking station enables you to enjoy the super speed data transmission (up to 5Gbps) of your USB peripherals, reducing cable clutter and bringing data and display connectivity to your notebook or tablet via a single USB 3.0 uplink port.

Dual Monitor support allows you to chose from either the DP or HDMI™ output plus a DVI output. It supports display resolution up to 4K at 30Hz for single Monitor setup or full HD at 60Hz for Dual Monitor setups. It offers separate connections for your Speakers or Headset and Microphone. You can even charge your Mobil Phone thru the BC1.2 Fast Charge Port in a manner of minutes.

Functionality is also dependent on the functionality of the connected devices.

BC 1.2 charging
Quick charge your USB enabled devices. It charges three times faster than a standard computer USB 2.0 port.
Share

• Compatible with USB 3.0 specification
• Max supported resolution for single screen setup is: up to 3840 x 2160 @30Hz
• Max supported resolution for dual screen setup is: up to 2 x 1920 x 1200 @60Hz
• Support audio 2.1 channel
• Support Gigabit Ethernet
• Support BC1.2 charging (Back port x1)

Summary: CLUB3D CSV-3103D The Club 3D Universal USB 3.1 Gen 1 UHD 4K Docking station DisplayLink™. Connectivity technology: Wired, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A, HDMI version: 1.4a. Ethernet LAN data rates: 10,100,1000 Mbit/s. Product colour: Black, Maximum digital resolution: 3840 x 2160 pixels, Maximum analog resolution: 2048 x 1152 pixels. Power source type: AC. Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64,…
Vendor Homepage: https://club-3d.com/index.php/products/reader.en/product/sensevision-usb-30-4k-docking-station.html
Category Code: NBK
Unit Box Height: 0.13
Unit Box Length: 0.21
Unit Box Width: 0.105
Audio (L/R) out: 1
Connectivity technology: Wired
DC-in jack: Yes
DisplayPorts quantity: 1
DVI-I ports quantity: 1
HDMI ports quantity: 1
HDMI version: 1.4a
Headphone connectivity: USB
Headphone outputs: 1
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-A
Line-out: Yes
Microphone in: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10/100/1000
Card reader integrated: No
Certification: CE, RoHS, FCC
Charging function: Yes
Compatibility: Lenovo
Dell
Acer
Asus.
MSI.
Toshiba
Apple
HP
Razer
LED indicators: Power
Maximum analog resolution: 2048 x 1152
Maximum digital resolution: 3840 x 2160
Optical drive included: No
Plug and Play: Yes
Product colour: Black
Reset button: No
Built-in speaker(s): No
Power source type: AC
Windows operating systems supported: Window/Windows 10 Education/Windows 10 Education x64/Windows 10 Enterprise/Windows 10 Enterprise x64/Windows 10 Home/Windows 10 Home x64/Windows 10 Pro/Windows 10 Pro x64/Windows 7 Ultimate x64/Windows 8.1/Windows 8.1 Enterprise/Windows 8.1 Enterprise x64
Depth: 74.5
Height: 26.3
Weight: 200
Width: 189
AC adapter included: Yes
Cables included: USB
Quick start guide: Yes
User guide: Yes
Paper/cardboard packaging weight: 178
Plastic packaging weight: 50
Total paper/cardboard packaging weight: 0
Total plastic packaging weight: 0
Compliance certificates: RoHS
Harmonized System (HS) code: 8473 3020
Number of microphone inputs: 1
Model: CSV-3103D
Units per Pallet: 0
Units per Shipping Box: 1
Unit Calculated Volume: 0.002867
Unit Calculated Weight: 0.59
