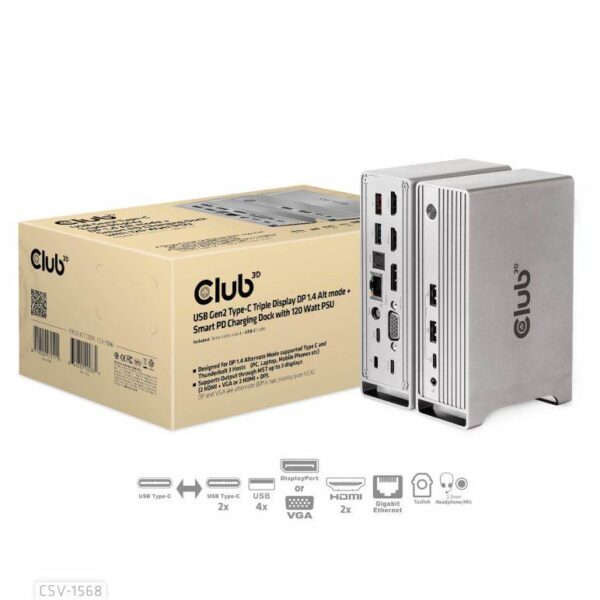

NB ACC DOCKING STATION/USB-C 120W CSV-1568 CLUB3D

Tootja kood (MPN): CSV-1568
ELKO kood: 1448481
Description:

The Club 3D CSV-1568 USB Gen2 Type-C Triple Display DP™ Alt mode + Smart PD Charging Dock with 120 Watt PSU, is an integrated solution combining Video, Data, Power, Ethernet and Audio. It has 4 videos (output 3 videos simultaneously under MST mode) for video transmission, 4 USB data ports (2 USB-A 10G, 1 Type-C 10G, 1 USB-A 5G) for data transmission, 1 USB-A smart charging port for quick charging, 1 Gigabit Ethernet for super fast Ethernet, 2 audio ports (3.5mm audio, Toslink) for enjoying music. Besides, this dock is equipped with dual power jack (Type-C PD Charging or 120W DC power supply).

It supports all DP Alt mode1.4/1.2 supported Type-C and Thunderbolt™ 3 host (PC, laptop, mobile phone, etc.) under Windows and under MacOS X based on Intel you will only get limited SST Function or Single display Only.

• Designed for DP 1.4 Alternate Mode supported Type C and Thunderbolt 3 Hosts (PC, Laptop, Mobile Phones etc.)
• Supports Output through MST up to 3 displays (2 HDMI + VGA or 2 HDMI + DP). DP and VGA are alternate (DP has priority over VGA)
• When 3 Displays are connected – 16.2Gbps bandwidth will be shared
• Single Display Support – HDMI max 4K60Hz, DP Max 4K60Hz, VGA max 1920*1200 60Hz
• DP and HDMI support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2
• DP and HDMI support deep color 8/10 bit
• DP and HDMI support HDR
• DP and HDMI support HDCP2.2 & 1.4
• DisplayPort supports DP++ which enables to connect a passive DP to HDMI port to connect HDMI display
• Support Gigabit Ethernet 10/100/1000M
• Support USB3.2 Gen2 with max 10Gbps data transfer
• Support smart charging
• Support Digital audio with max 96KHz/24bit sampling rate
• Support dual power supplies: Type-C PD charging or DC Jack
• Type-C female supports max 100W PD Charging with fast role swap of PD3.0, support smart power which allows to distribute power according to actual consumption of the connected devices
• Max 120W power supply from DC Adapter, support smart power according to actual consumption of the connected devices, the host can get power ranging from 60W to 100W

Summary: CLUB3D Docking station(Metal casing)1x USB Gen2 Type-C Female (data) 2x USB Gen2 Type-A Female 1x USB Gen1 Type-A Female 1x USB Type-A (RED) Smart Charging port 5V/2.4A Max. • 2x HDMI™ (DP Alt Mode) 1x DP™ (DP Alt Mode) hdr 1x VGA 1x RJ45 1 + 120 Watt. Connectivity technology: Docking, Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C, USB Power Delivery up to: 100 W. Product colour: Metallic, Data transfer rate: 16.2 Gbit/s, Maximum refresh rate: 60 Hz. Power source type: DC, Power connector: USB Type-C, AC input voltage: 100 – 240 V. Width: 139 mm, Depth: 90 mm, Height: 44 mm. Quantity per pack: 1 pc(s), Package width: 225 mm, Package depth: 155 mm
Vendor Homepage: https://www.club-3d.com/en/detail/2580/usb_gen2_type_c_triple_display_dp_1.4_alt_mode_smart_pd_charging_dock_with_120_watt_psu/
Category Code: NBK
Unit Box Height: 0.095
Unit Box Length: 0.225
Unit Box Width: 0.16
Combo headphone/mic port: Yes
Connectivity technology: Docking
DC-in jack: Yes
DisplayPort version: 1.4
DisplayPorts quantity: 1
HDCP: Yes
HDCP version: 1.4/2.2
HDMI ports quantity: 2
Headphone connectivity: 3.5 mm
Host interface: USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Thunderbolt 3 Power Delivery: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB Power Delivery (USB PD): Yes
USB Power Delivery revision: 3.0
USB Power Delivery up to: 100
USB Type-C DisplayPort Alternate Mode: Yes
VGA (D-Sub) ports quantity: 1
Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Brand compatibility: Apple
Card reader integrated: Yes
Certification: Meets ROHS, FCC, and CE EMI requirements
Compatibility: Lenovo
Dell
Acer
Asus
MSI
Toshiba
Apple
HP
Razer
Country of origin: China
Data transfer rate: 16.2
High Dynamic Range (HDR) supported: Yes
Key lock: Yes
Maximum refresh rate: 60
Plug and Play: Yes
Product colour: Metallic
AC input voltage: 100 – 240
Power cable length: 1
Power connector: USB Type-C
Power consumption (max): 120
Power source type: DC
Power supply: 120
Mac operating systems supported: Yes
Windows operating systems supported: Yes
Depth: 90
Height: 44
Weight: 563
Width: 139
Package depth: 155
Package height: 97
Package weight: 1359
Package width: 225
Quantity per pack: 1
AC adapter included: Yes
Quick start guide: Yes
Stand included: Yes
Paper/cardboard packaging weight: 168
Plastic packaging weight: 5
Total paper/cardboard packaging weight: 0
Total plastic packaging weight: 0
Harmonized System (HS) code: 8473 3020
Special features: In the box:
CSV-1568 Docking Station
PowerSupply Input:100-110/240VAC, Output: up to 120W
USB Gen2 Type-C cable 10G, 20V5A M/M, 1 m / 3.28 ft
Detachable stand
Quick Install Guide
Voltage: 20.5
Model: CSV-1568
Units per Pallet: 0
Units per Shipping Box: 1
Unit Calculated Volume: 0.00342
Unit Calculated Weight: 1.39
