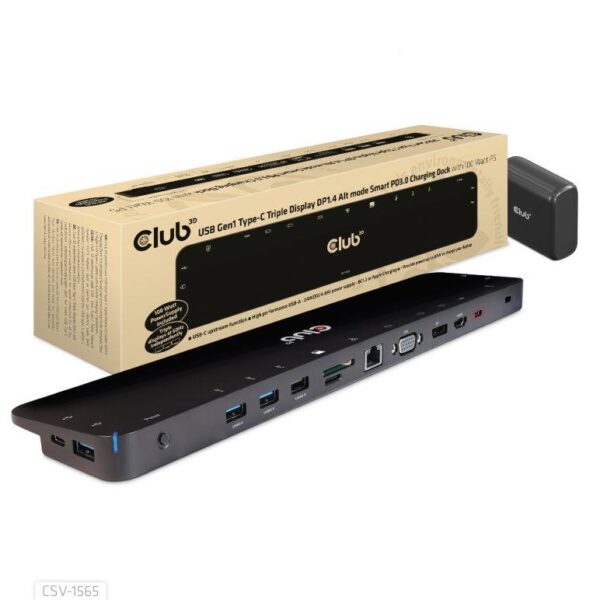

NB ACC DOCKING STATION/USB-C 100W CSV-1565 CLUB3D
216,90 €
5 laos
Tellitud: 0
Saadaval olevad esemed: 5
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
XS
0 ( 000 )
23
32
44
55
S
24
23
32
44
55
M
25
23
32
44
55
L
26
23
32
44
55
M
29
23
32
44
55
L
32
23
32
44
55
M
34
23
32
44
55
4 - Päeva Transport
apr. 13 apr. 17
Kirjeldus
Tootja kood (MPN): CSV-1565
ELKO kood: 1448464
Description:
The Club-3D CSV-1565 USB Gen1 Type-C Triple Display DP1.4 Alt mode Smart PD3.0 Charging Dock is an integrated solution combining Video, Data, Power, Ethernet and Audio especially for frequent travellers. The Three different Video ports(HDMI™, DisplayPort™, VGA) allow you to enjoy 3 different images(1x HDMI™ 4K60Hz+1x DP™ 4K60Hz+1x VGA 1920×1080@60Hz) or videos on 3 different displays(1x 4K30Hz+2x1080p@60Hz) outputs under MST mode simultaneously. The USB Type-A ports and USB Type-C data port allow you to connect multiple USB devices to the host. The USB Type-C charging port allows you to provide power for this Dock and can charge the host PC at the same time by connecting a PD3.0 power Adapter, no need to carry your Notebooks PowerSupply. So in general the user is travelling lighter. The Micro SD and SD/MMC ports allow you to read information in the memory card onto the host. The 3.5mm audio port allows enjoying music of the host via a headset. Besides, with the Gigabit Ethernet port, you can enjoy high speed Ethernet on the host. It supports all DP1.4 Alt mode supported hosts. (PC, Laptop, Mobile phone, etc.) Dynamic Current Detection and Power Distribution, the product no longer intercepts the fixed power from the external PD3.0 Power Supply, but intercepts it according to the actual power consumed by itself, so that the PC can be dynamically charged more power. For Video Signal the source device needs to support DisplayPort™1.4 Alt Mode.
- Features:
- Supports DP1.4 Alt Mode and PD 3.0
- Supports max. 5Gbps data transmission on the USB Gen1 Type-C ports
- One USB Gen1 Type-C Data port
- One USB Gen1 Type-C port supports PD3.0 charging with max 100W(20V/5A) Bundled with 100W Power Supply
- 1x HDMI™ 4K60Hz
- 1x DP™ 4K60Hz
- 1x VGA 1920×1080@60Hz
- Triple Display support(1x 4K30Hz+2x1080p@60Hz) outputs under MST mode
- One port IEEE 802.3 Ethernet support for 10M/100M/1000Mbps
- SD- and Micro-SD Slots work simultaneously
- Audio port(Stereo), supports both micro- and head-phone, Max 96Khz sampling rate
- Supports Dynamic Current Detection and Power Distribution, the product no longer intercepts the fixed power from the external PD3.0 PowerSupply, but intercepts it according to the actual power consumed by itself, so that the PC can be dynamically charged more power
Summary: CLUB3D USB Gen1 Type-C Triple Display DP1.4 Alt mode Smart PD3.0 Charging Dock with 100 Watt Power Supply. Connectivity technology: Docking, Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C. Product colour: Black. Paper/cardboard packaging weight: 239 g. Harmonized System (HS) code: 8473 3020
Vendor Homepage: https://club-3d.com/en/detail/2629/usb_gen1_type_c_triple_display_dp1.4_alt_mode_smart_pd3.0_charging_dock_with_100_watt_power_supply/
Category Code: NBK
Unit Box Height: 0.11
Unit Box Length: 0.37
Unit Box Width: 0.105
Combo headphone/mic port: Yes
Connectivity technology: Docking
DisplayPort version: 1.4
DisplayPorts quantity: 1
HDMI ports quantity: 1
Headphone outputs: 1
Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Microphone in: Yes
USB 2.0 ports quantity: 5
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 2
Ethernet LAN: Yes
Ethernet LAN (RJ-45) ports: 1
Card reader integrated: Yes
Product colour: Black
Paper/cardboard packaging weight: 239
Plastic packaging weight: 0
Total paper/cardboard packaging weight: 0
Total plastic packaging weight: 0
Harmonized System (HS) code: 8473 3020
Model: CSV-1565
Units per Pallet: 0
Units per Shipping Box: 1
Unit Calculated Volume: 0.004274
Unit Calculated Weight: 0.73
