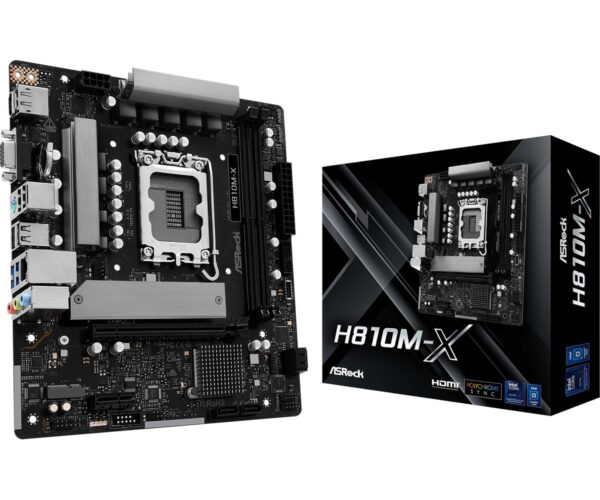

Mainboard|ASROCK|Intel H810|LGA1851|Micro-ATX|Memory DDR5|Memory slots 2|H810M-X

Tootja kood (MPN): H810M-X
ELKO kood: 1451041
Description:

H810M-X
X Series motherboard offers a compact, high-value solution, balancing performance, versatility, and reliability for both professional and daily tasks.

The ASRock X-Series motherboard provides a high-value solution, balancing performance and versatility within a compact form factor. It’s highly capable in handling a wide range of tasks, from professional productivity to everyday usage, striking an excellent balance between affordability, reliability, and efficiency.

High Speed M.2 Solution

Hyper M.2 Gen4 x4
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Intelligent Cooling Design

Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.

Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!

• Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
• 6+1+1+1+1 Power Phase
• 2 x DDR5 DIMMs
• Supports Dual Channel, up to 6400
• 1 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
• Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 D-Sub
• Realtek ALC897 7.1 CH HD Audio Codec
• 4 SATA3
• 1 Hyper M.2 (PCIe Gen4x4)
• 1 USB 3.2 Gen1 Type-C (Front)
• 4 USB 3.2 Gen1 (2 Rear, 2 Front)
• 6 USB 2.0 (4 Rear, 2 Front)
• Realtek 2.5G LAN

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.

Summary: Asrock H810M-X. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Vendor Homepage: https://www.asrock.com/MB/Intel/H810M-X/index.asp
Category Code: MBI
Unit Box Height: 0.06
Unit Box Length: 0.28
Unit Box Width: 0.24
Compatible processor series: Intel Core Ultra (Series 2)
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
ECC ?ompatibility: Non-ECC
Maximum internal memory: 128
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 2
Supported memory clock speed (max): 6400
Supported memory types: DDR5-SDRAM
Unbuffered memory: Yes
Number of HDDs supported: 4
Number of storage drives supported: 5
Supported storage drive interfaces: M.2,SATA III
Supported storage drive types: HDD & SSD
Parallel processing technology support: Not supported
12V power connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Number of chassis fan connectors: 1
Number of CPU fan connectors: 1
Number of SATA III connectors: 4
RGB LED pin header: Yes
TPM connector: Yes
USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
DisplayPort version: 1.4
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
Line-in: Yes
Microphone in: Yes
PS/2 ports quantity: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
VGA (D-Sub) ports quantity: 1
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
LAN controller: Dragon RTL8125BG
Wi-Fi: No
Audio output channels: 7.1
Certification: – FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
Compatible operating systems: Microsoft Windows 11 64-bit
Component for: PC
Motherboard chipset: Intel H810
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Product colour: Multicolour
Windows operating systems supported: Windows 11 x64
Number of M.2 (M) slots: 1
PCI Express x1 (Gen 4.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
BIOS memory size: 256
BIOS type: UEFI AMI
Depth: 193
Width: 220
Model: H810M-X
Units per Pallet: 0
Units per Shipping Box: 20
Unit Calculated Volume: 0.0044225
Product Net Weight: 0.5
Unit Calculated Weight: 0.95
