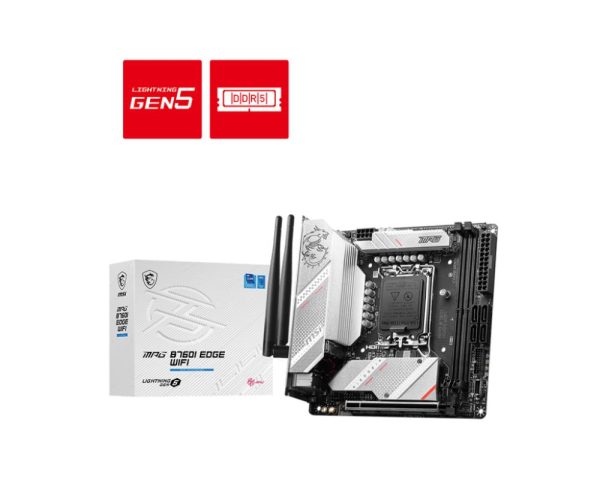

Mainboard|MSI|Intel B760 Express|LGA1700|Mini-ITX|Memory DDR5|Memory slots 2|1xPCI-Express 16x|2xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|5xUSB 3.2|1xUSB-C|1xRJ45|3xAudio port|MPGB760IEDGEWIFI

Tootja kood (MPN): MPGB760IEDGEWIFI
ELKO kood: 1401111
Description:

MPG B760I EDGE WIFI employs silver white color scheme to show off different personality and identity. Besides being stylish, it is also powerful.

BE AHEAD, POP YOUR STYLE
The MPG series brings out fashionable products by showing extremely unique styles and expressing a conceited attitude towards the challenge of the gaming world. With extraordinary performance and style, the MPG series defines the future of gaming fashion.

Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation, ensuring even high-end processors to run in full speed.

Pump Fan Support
Control watercooling pump speeds for best flow and noise control.

7W/mK Thermal Pad
High quality 7W/mK MOSFET thermal pads and extra choke thermal pads ensure all cores running in high performcance.

M.2 Shield Frozr
Keeps M.2 SSDs safe while preventing throttling, making them run faster.

8-Layer Server Grade PCB
8-layer PCB with 2oz thickened copper provides higher performance and long-lasting system stability without any compromise.

LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.

FAST AND FUTURE-READY STORAGE
MSI MPG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.

• Supports 13th /12th Gen Intel® Core™ / Pentium® / Celeron® processors for LGA 1700 socket
• Supports DDR5 Memory, up to 7200+(OC) MHz
• Lightning Fast Game experience: PCIe 5.0 slots, Lightning Gen 4 x4 M.2, USB 3.2 Gen 2
• Enhanced Power Design: Direct 8+1+1 phases power, Core Boost, Memory Boost
• Premium Thermal Solution: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
• 2.5G LAN and Intel Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
• AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience
• High Quality PCB: 8-layer PCB made by server grade level material
• Pre-installed I/O Shield: Better EMI protection and more convenience for installation

Summary: MSI MPG B760I EDGE WIFI. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: mini ATX, Motherboard chipset family: Intel
Vendor Homepage: https://www.msi.com/Motherboard/MPG-B760I-EDGE-WIFI/Overview
Category Code: MBI
Unit Box Height: 0.195
Unit Box Length: 0.23
Unit Box Width: 0.085
Audio chip: Realtek ALC897
Audio output channels: 7.1
Component for: PC
Motherboard chipset: Intel B760
Motherboard chipset family: Intel
Motherboard form factor: mini ATX
Power source type: ATX
Product colour: Black/Silver
Windows operating systems supported: Windows 10/Windows 11
Compatible processor series: Intel® Celeron®/Intel® Pentium® Gold
Maximum number of SMP processors: 1
Processor manufacturer: Intel
Processor socket: LGA 1700
Supported processor sockets: LGA 1700
ECC сompatibility: Non-ECC
Maximum internal memory: 96
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 2
Supported memory clock speed (max): 7200
Supported memory clock speeds: 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200
Supported memory types: DDR5-SDRAM
RAID levels: 0/1/10/5
RAID support: Yes
Supported storage drive interfaces: M.2,SATA III
On-board graphics card: No
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Front panel audio connector: Yes
Front panel connector: Yes
Number of SATA III connectors: 4
RGB LED pin header: Yes
TPM connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
DisplayPort version: 1.4
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 2
HDMI version: 2.1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
Bluetooth: Yes
Bluetooth version: 5.3
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
Wi-Fi standards: 802.11a/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 2
BIOS memory size: 256
BIOS type: UEFI AMI
System Management BIOS (SMBIOS) version: 3.5
Depth: 170
Width: 170
Model: MPG B760I EDGE WIFI
Units per Shipping Box: 10
Unit Calculated Volume: 0.004576
Unit Calculated Weight: 1.085
