Kirjeldus
Tootja kood (MPN): PROB760-PII
ELKO kood: 1414514
Description:
Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.
Chipset Heatsink
The chipset heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.
OPTIMIZED FOR WATER COOLING
Designed to support the most popular All-In-One & customized water cooling solutions on the market. A dedicated water pump PIN header supports up to 3 amp, giving you full control of the water pump speed. A clearly marked ‘keep-out-zone’ allows for easy and safe installation and a perfect fit.
LIGHTNING GEN 4 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s.
REINFORCED,
HEAVY SOLDERED CONNECTIONS
Secure to the motherboard with extra solder points and support the weight of heavy graphics cards.
FAST AND FUTURE-READY STORAGE
MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.
THE ISOLATED ANALOGY STRUCTURE FOR AUDIO CONNECTORS
To provide clear voice, MSI develops a unique structure – Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR5 Memory, Dual Channel DDR5 7000+MHz (OC)
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper and server grade level material
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
- Intel Turbo USB 10Gbps: Powered by Intel USB 10Gbps controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- 2.5G LAN: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience

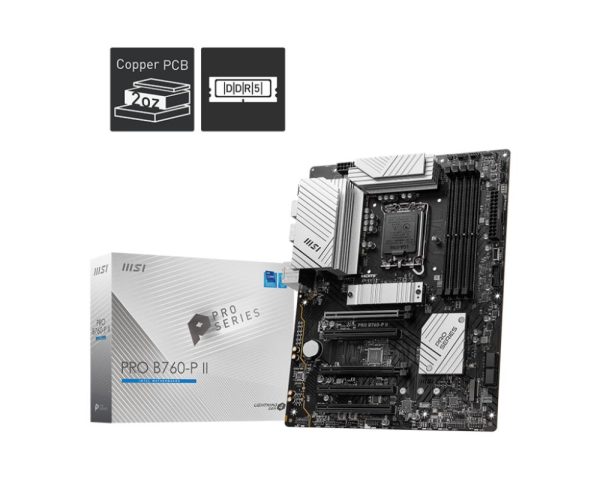

Summary: MSI PRO B760-P II. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Pentium® Gold. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 4.0, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125-BG. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel
Vendor Homepage: https://www.msi.com/Motherboard/PRO-B760-P-II/Overview
Category Code: MBI
Unit Box Height: 0.27
Unit Box Length: 0.345
Unit Box Width: 0.07
Audio chip: Realtek ALC897
Audio output channels: 7.1
Component for: PC
Motherboard chipset: Intel B760
Motherboard chipset family: Intel
Motherboard form factor: ATX
Windows operating systems supported: Windows 10 x64/Windows 11 x64
Compatible processor series: Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Pentium® Gold
Maximum internal memory supported by processor: 256
Processor manufacturer: Intel
Processor socket: LGA 1700
ECC сompatibility: Non-ECC
Maximum internal memory: 256
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 7000
Supported memory clock speeds: 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000
Supported memory types: DDR5-SDRAM
Unbuffered memory: Yes
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID levels: 0/1/10/5
RAID support: Yes
Supported storage drive interfaces: PCI Express 4.0,SATA III
12V power connector: Yes
ATX Power connector (24-pin): Yes
Chassis intrusion connector: Yes
CPU fan connector: Yes
Front panel audio connector: Yes
Front panel connector: Yes
Number of SATA III connectors: 4
Power fan connector: Yes
S/PDIF out connector: Yes
USB 2.0 connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 4
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
DisplayPort version: 1.4
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
LAN controller: Realtek RTL8125-BG
Wi-Fi: No
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x1 (Gen 4.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x4 (Gen 4.x) slots: 1
ACPI version: 6.4
BIOS memory size: 256
BIOS type: UEFI AMI
Clear CMOS button: Yes
Clear CMOS jumper: Yes
System Management BIOS (SMBIOS) version: 3.5
Depth: 304.8
Width: 243.84
Cables included: SATA
Drivers included: Yes
Model: PRO B760-P II
Units per Shipping Box: 10
Unit Calculated Volume: 0.007252
Unit Calculated Weight: 1.51
