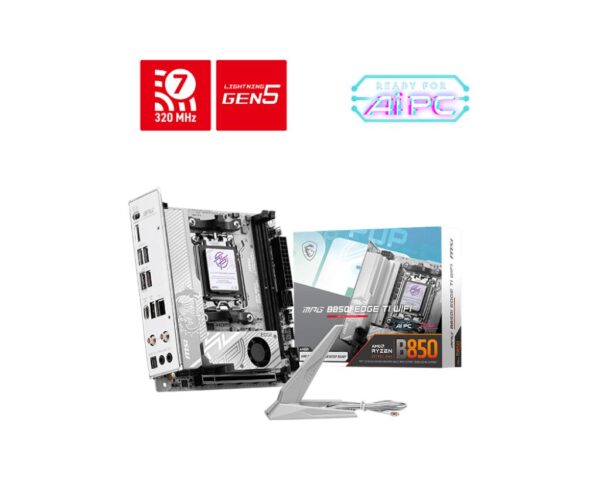

Mainboard|MSI|AMD B850|SAM5|Mini-ITX|Memory DDR5|Memory slots 2|MPGB850IEDGETIWIFI
310,62 €
29 laos
Tellitud: 0
Saadaval olevad esemed: 29
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
XS
0 ( 000 )
23
32
44
55
S
24
23
32
44
55
M
25
23
32
44
55
L
26
23
32
44
55
M
29
23
32
44
55
L
32
23
32
44
55
M
34
23
32
44
55
4 - Päeva Transport
dets. 22 dets. 26
Kirjeldus
Tootja kood (MPN): MPG B850I EDGE TI WIFI
ELKO kood: 1443625
Description:
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
Wi-Fi 7
The latest wireless solution with a new 160MHz channel, achieving a maximum transmission speed of 2.9Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Frozr Heatsink Design
Designed with the patented fan and double ball bearings to provide best performance for enthusiast gamers and prosumers.
Dual M.2 Connectors
Onboard 2x M.2 Connectors with one PCIe 5.0 solution, strengthened by M.2 Shield Frozr.
Lightning USB 20G
Built-in USB 3.2 Gen 2×2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
Audio Boost 5
Isolated audio with a high quality audio processor for the most
immersive gaming experience
Summary: MSI B850I EDGE TI WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, NVMe, SATA III, RAID levels: 0, 1. USB connector type: USB Type-A, USB Type-C. Ethernet interface type: 5 Gigabit Ethernet, LAN controller: Realtek RTL8126, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Vendor Homepage: https://www.msi.com/Motherboard/MPG-B850I-EDGE-TI-WIFI/Specification
Category Code: MBA
CnCode: 84733020
Unit Box Height: 0.06
Unit Box Length: 0.225
Unit Box Width: 0.275
Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
ECC ?ompatibility: non-ECC
Maximum internal memory: 128
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 2
Supported memory clock speed (max): 8200
Supported memory types: DDR5-SDRAM
Unbuffered memory: Y
RAID levels: 0/1
RAID support: Y
Supported storage drive interfaces: M.2,NVMe,SATA III
On-board graphics card: N
ATX Power connector (24-pin): Y
Chassis intrusion connector: Y
CPU fan connector: Y
Number of chassis fan connectors: 6
Number of CPU fan connectors: 1
Number of SATA III connectors: 2
RGB LED pin header: Y
TPM connector: Y
USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
S/PDIF out port: Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2×2 Type-C ports quantity: 1
USB connector type: USB Type-A/USB Type-C
Bluetooth: Y
Bluetooth version: 5.4
Ethernet interface type: 5 Gigabit Ethernet
Ethernet LAN: Y
LAN controller: Realtek RTL8126
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi: Y
Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
Audio output channels: 7.1
Component for: PC
Motherboard chipset: AMD B850
Motherboard chipset family: AMD
Motherboard form factor: Mini ITX
Product colour: Grey
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 5.x) slots: 1
Depth: 170
Width: 170
Antenna included: Y
Cables included: SATA
Screws included: Y
Quick installation guide: Y
Model: MPG B850I EDGE TI WIFI
Units per Pallet: 0
Units per Shipping Box: 10
Unit Calculated Volume: 0.004394
Unit Calculated Weight: 1.28
