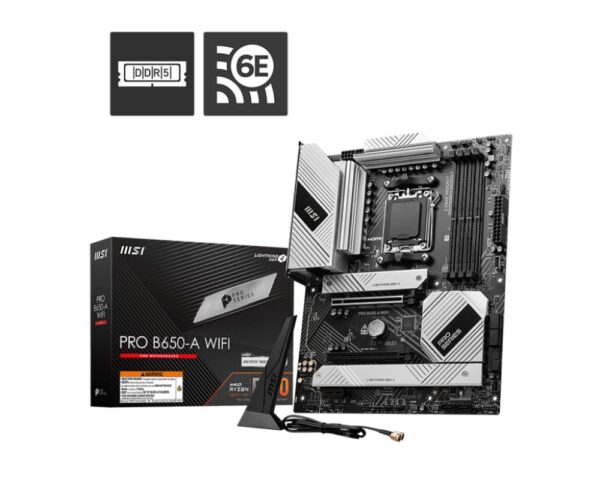

Mainboard|MSI|AMD B650|SAM5|ATX|Memory DDR5|Memory slots 4|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 2x|1xPCI-Express 4.0 16x|3xM.2|1xHDMI|1xDisplayPort|2xUSB 2.0|7xUSB 3.2|1xUSB-C|1xOptical S/PDIF|1xRJ45|3xAudio port|PROB650-AWIFI
184,05 €
12 laos
Tellitud: 0
Saadaval olevad esemed: 12
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
XS
0 ( 000 )
23
32
44
55
S
24
23
32
44
55
M
25
23
32
44
55
L
26
23
32
44
55
M
29
23
32
44
55
L
32
23
32
44
55
M
34
23
32
44
55
4 - Päeva Transport
dets. 17 dets. 21
Kirjeldus
Tootja kood (MPN): PRO B650-A WIFI
ELKO kood: 1439807
Description:
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 7600+MHz (OC)
- Enhanced Power Design: 14+2 DRPS with 80A SPS, dual 8-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop work
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Lightning Fast experience: PCIe 4.0 slots, Lightning Gen 4 x4 M.2 with M.2 Shield Frozr, USB 3.2 Gen 2×2
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience
Summary: MSI PRO B650-A WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory channels: Dual-channel. Supported storage drive interfaces: M.2, PCI Express, Supported storage drive types: HDD & SSD, RAID levels: 0, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6E (802.11ax), Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax). Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
Vendor Homepage: https://www.msi.com/Motherboard/PRO-B650-A-WIFI
Category Code: MBA
CnCode: 84733020
Unit Box Height: 0.07
Unit Box Length: 0.345
Unit Box Width: 0.27
Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Maximum internal memory supported by processor: 256
Processor manufacturer: AMD
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
ECC ?ompatibility: non-ECC
Maximum internal memory: 256
Memory channels: Dual-channel
Number of memory slots: 4
Supported memory clock speed (max): 7600
Supported memory clock speeds: 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600
Supported memory types: DDR5-SDRAM
Unbuffered memory: Y
Number of HDDs supported: 9
Number of storage drives supported: 6
RAID levels: 0/10/5
RAID support: Y
Supported storage drive interfaces: M.2,PCI Express
Supported storage drive types: HDD & SSD
On-board graphics card: N
Parallel processing technology support: Not supported
Chassis intrusion connector: Y
CPU fan connector: Y
Front panel audio connector: Y
Front panel connector: Y
Number of SATA III connectors: 6
RGB LED pin header: Y
TPM connector: Y
USB 2.0 connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
DisplayPort version: 1.4
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
S/PDIF out port: Y
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Bluetooth: Y
Bluetooth version: 5.3
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Y
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi: Y
Wi-Fi standards: 802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
Audio chip: Realtek ALC4080
Audio output channels: 7.1
Component for: PC
Motherboard chipset: AMD B650
Motherboard chipset family: AMD
Motherboard form factor: ATX
Product colour: Black
Windows operating systems supported: Windows 10 x64/Windows 11 x64
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 22110
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2580
3rd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 2280
Number of M.2 (M) slots: 3
PCI Express x8 (Gen 3.x) slots: 1
PCI Express x8 (Gen 4.x) slots: 2
ACPI version: 6.4
BIOS memory size: 256
BIOS type: UEFI AMI
System Management BIOS (SMBIOS) version: 3.4
Depth: 304.8
Width: 243.84
Cables included: SATA
Model: PRO B650-A WIFI
Units per Shipping Box: 5
Unit Calculated Volume: 0.008375
Unit Calculated Weight: 2
