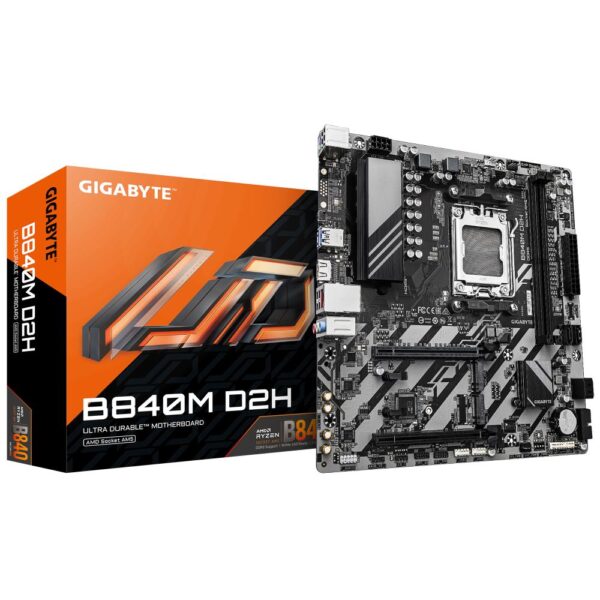

Mainboard|GIGABYTE|SAM5|Micro-ATX|Memory DDR5|Memory slots 2|1xPCI-Express 3.0 4x|1xPCI-Express 4.0 16x|2xM.2|1xHDMI|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|B840MD2H
117,42 €
Laost otsas
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
XS
0 ( 000 )
23
32
44
55
S
24
23
32
44
55
M
25
23
32
44
55
L
26
23
32
44
55
M
29
23
32
44
55
L
32
23
32
44
55
M
34
23
32
44
55
4 - Päeva Transport
dets. 18 dets. 22
Kirjeldus
Tootja kood (MPN): B840M D2H
ELKO kood: 1439963
Description:
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- X3D Turbo Mode to unleash new era gaming performance
- AMD Socket AM5 : Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital 5+2+2 phases VRM solution
- Dual Channel DDR5 : 2*DIMMs with AMD EXPO Memory Module Support
- EZ-Latch : PCIe x16 Slot with Quick Release Design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 4.0 x4
- Fast Networking : 2.5GbE LAN
Summary: GIGABYTE B840M D2H Motherboard – AMD Ryzen 9000 CPUs, 5+2+2 Phases VRM, up to 7600MHz DDR5, 1xPCIe 4.0 + 1xPCIe 3.0 M.2, 2.5GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125
Vendor Homepage: https://www.gigabyte.com/
Category Code: MBA
CnCode: 84733020
Unit Box Height: 0.058
Unit Box Length: 0.269
Unit Box Width: 0.264
Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
ECC ?ompatibility: non-ECC
Maximum internal memory: 128
Maximum internal memory per slot: 64
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 2
Supported memory clock speed (max): 7600
Supported memory clock speeds: 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600
Supported memory types: DDR5-SDRAM
Unbuffered memory: Y
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID levels: 0/1/10
RAID support: Y
Supported storage drive interfaces: M.2,PCI Express 4.0,SATA III
Supported storage drive types: HDD & SSD
DirectX version: 12.0
HDCP: Y
Maximum resolution: 4096 x 2160
Parallel processing technology support: Not supported
ATX Power connector (24-pin): Y
CPU fan connector: Y
EPS power connector (8-pin): Y
Front panel audio connector: Y
Front panel connector: Y
Number of chassis fan connectors: 1
Number of CPU fan connectors: 2
Number of EPS power connectors (8-pin): 1
Number of RGB LED pin headers: 3
Number of SATA III connectors: 4
Number of water pump connectors: 1
RGB LED pin header: Y
TPM connector: Y
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Headphone outputs: 1
Line-in: Y
Microphone in: Y
PS/2 ports quantity: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Y
LAN controller: Realtek RTL8125
Wi-Fi: N
Audio chip: Realtek ALC897
Audio output channels: 7.1
Component for: PC
Cooling type: Passive
Motherboard chipset: AMD B840
Motherboard chipset family: AMD
Motherboard form factor: Micro ATX
PC health monitoring: FAN/Temperature/Voltage/Water cooling
Power source type: ATX
Product colour: Dark brown
Windows operating systems supported: Windows 10 x64/Windows 11 x64
1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2580
2nd M.2 highest PCI Express generation: 3.0
2nd M.2 largest key size: 2280
Number of M.2 (M) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
ACPI version: 5.0
BIOS memory size: 256
BIOS type: UEFI AMI
Clear CMOS jumper: Y
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Battery weight: 3
Lithium weight per battery: 0.07
Number of battery cells: 1
Package depth: 265
Package height: 54
Package weight: 1026.4
Package width: 265
Products per shipping (inner) case: 1
Depth: 244
Height: 35
Width: 244
Batteries included: Y
Bundled software: Norton® Internet Security (OEM version)
LAN bandwidth management software
Screws included: Y
Warranty period: 3
Weight: 940
Model: B840M D2H
Units per Shipping Box: 10
Unit Calculated Volume: 0.004769
Unit Calculated Weight: 1.04
