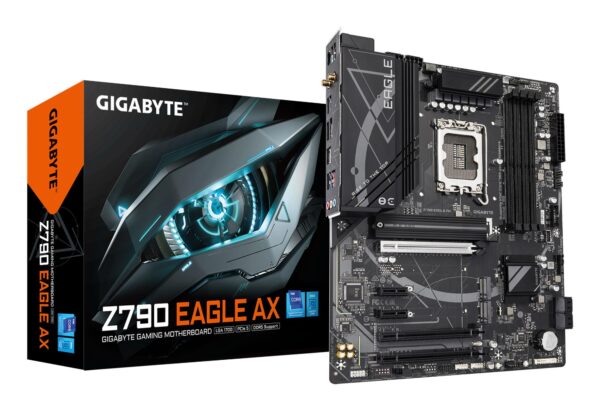

Mainboard|GIGABYTE|Intel Z790 Express|LGA 1700|ATX|RAM DDR5-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|3xNumber of M.2 (M) slots|Z790EAGLEAX1.2

Tootja kood (MPN): Z790 EAGLE AX 1.2
ELKO kood: 1453820
Description:

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

• Supports Intel Core 14th/ 13th /12th processors
• Unparalleled Performance：Twin 12*+1+１ Phases Digital VRM Solution
• Dual Channel DDR5：4*DIMMs with XMP 3.0 Memory Module Support
• Next Generation Storage：3*PCIe 4.0 x4 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
• EZ-Latch：PCIe 5.0×16 Slot with Quick Release Design
• Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
• Extended Connectivity：DP, HDMI, Rear USB-C 10Gb/s
• Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card* 6+6 phases parallel power design

Summary: GIGABYTE Z790 EAGLE AX Motherboard – Supports Intel Core 14th Gen CPUs, 12+1+１Phases Digital VRM, up to 7600MHz DDR5 (OC), 3xPCIe 4.0 M.2, Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9,…. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. USB connector type: USB Type-A, USB Type-C
Vendor Homepage: https://www.gigabyte.com
Category Code: MBI
CnCode: 84733020
Unit Box Height: 0.08
Unit Box Length: 0.27
Unit Box Width: 0.34
Audio chip: Realtek ALC897
Audio output channels: 7.1
Component for: PC
Motherboard chipset: Intel Z790 Express
Motherboard chipset family: Intel
Motherboard form factor: ATX
PC health monitoring: Fan/Temperature/Voltage/Water cooling
Power source type: ATX
Product colour: Brown
Windows operating systems supported: Windows 10 x64/Windows 11 x64
Compatible processor series: Intel® Celeron®/Intel® Core™ i3/Intel® Core™ i5/Intel® Core™ i7/Intel® Core™ i9/Intel® Pentium® Gold
Maximum internal memory supported by processor: 192
Maximum number of SMP processors: 1
Processor manufacturer: Intel
Processor socket: LGA 1700
Supported processor sockets: LGA 1700
ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 192
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 7600
Supported memory clock speeds: 4400/4800/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200/7400/7600
Supported memory module capacities: 12GB/16GB/1GB/2GB/32GB/48GB/4GB/8GB
Supported memory types: DDR5-SDRAM
Unbuffered memory: Yes
Number of HDDs supported: 4
Number of storage drives supported: 7
RAID levels: 0/1/10/5
RAID support: Yes
Supported storage drive interfaces: M.2,SATA III
Supported storage drive types: HDD & SSD
Discrete graphics support: Yes
HDCP: Yes
Maximum resolution: 4096 x 2304
On-board graphics card: No
Parallel processing technology support: Not supported
12V power connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Front panel connector: Yes
Number of EATX power connectors: 2
Number of SATA III connectors: 4
RGB LED pin header: Yes
Thunderbolt headers: 2
Total number of SATA connectors: 4
TPM connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
DisplayPort version: 1.2
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Headphone outputs: 1
Microphone in: Yes
PS/2 ports quantity: 1
S/PDIF out port: Yes
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2×2 Type-C ports quantity: 1
USB connector type: USB Type-A/USB Type-C
WiFi-AP antenna jack: 2
Bluetooth: Yes
Bluetooth version: 5.3
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
WLAN controller model: Intel Wi-Fi 6E AX211
Number of M.2 (M) slots: 3
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
ACPI version: 5.0
BIOS memory size: 256
BIOS type: UEFI AMI
Clear CMOS button: Yes
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Battery weight: 3
Country of origin: China
Lithium weight per battery: 0.07
Number of battery cells: 1
Package depth: 270
Package height: 80
Package weight: 1807.5
Package width: 335
Products per shipping (inner) case: 1
Depth: 244
Height: 35
Width: 305
Antenna included: Yes
Batteries included: Yes
Bundled software: Norton® Internet Security (OEM version)
LAN bandwidth management software
Cables included: SATA
Warranty period: 3
Units per Pallet: 0
Units per Shipping Box: 8
Unit Calculated Volume: 0.009973
Unit Calculated Weight: 1.84
