Tootja kood (MPN): B860M A ELT WF6E ICE 1.0
ELKO kood: 1432822
Description:
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- Twin Hybrid Digital 12+1+2+1 Phases 60A DrMOS VRM
- Dual Channel DDR5：4*DIMMs
- PCIe 5.0 x16 with PCIE UD Slot & EZ-Latch Plus
- EZ-Latch Plus for M.2 SSDs installation
- Fully Covered MOSFET Heatsinks/M.2 Thermal Guard(Ext.) with EZ-Latch Click
- Realtek 2×2 Wi-Fi 6E with WIFI EZ-Plug
- 2.5GbE LAN, USB 4.0 Type-C, USB 3.2 Gen2 Type-C
- Q-Flash Plus

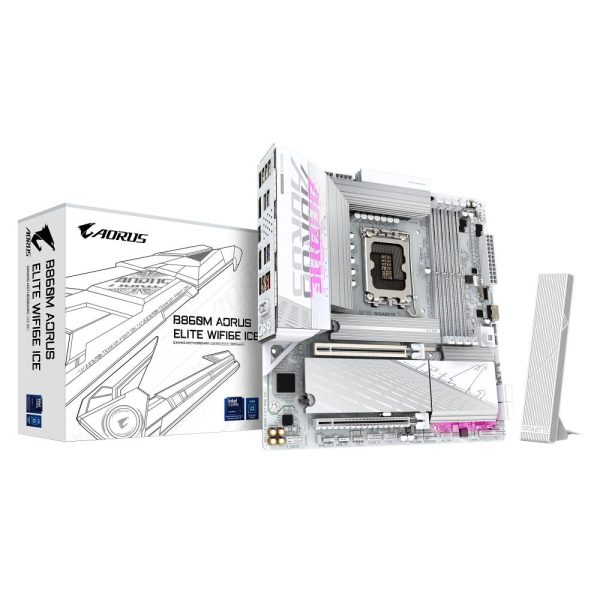

Summary: GIGABYTE B860M AORUS ELITE WF6E ICE Motherboard – Intel Core Ultra Series CPUs, 12+1+2+1 Phases VRM, up to 9200MHz DDR5, 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5GbE LAN, WIFI 6E, USB 4. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Vendor Homepage: https://www.gigabyte.com/
Category Code: MBI
CnCode: 84733020
Unit Box Height: 0.27
Unit Box Length: 0.275
Unit Box Width: 0.07
Compatible processor series: Intel Core Ultra (Series 1)/Intel Core Ultra (Series 2)
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Supported processor sockets: LGA 1851
ECC ?ompatibility: ECC & Non-ECC
Maximum internal memory: 256
Maximum internal memory per slot: 64
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 9200
Supported memory clock speeds: 5600/6400/9200
Supported memory types: DDR5-SDRAM
Unbuffered memory: Yes
Number of HDDs supported: 4
Number of storage drives supported: 7
RAID levels: 0/1/10/5
RAID support: Yes
Supported storage drive interfaces: M.2,SATA III
Supported storage drive types: HDD & SSD
DirectX version: 12.0
HDCP: Yes
Maximum resolution: 4096 x 2160
Parallel processing technology support: Not supported
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Front panel connector: Yes
Number of chassis fan connectors: 4
Number of CPU fan connectors: 2
Number of EPS power connectors (8-pin): 2
Number of RGB LED pin headers: 4
Number of SATA III connectors: 4
Number of water pump connectors: 2
RGB LED pin header: Yes
TPM connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Digital audio optical out: 1
DisplayPort version: 2.1
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Headphone outputs: 1
Line-in: Yes
S/PDIF out port: Yes
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
USB4 Gen 2×2 ports quantity: 1
WiFi-AP antenna jack: 2
Bluetooth: Yes
Bluetooth version: 5.3
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
LAN controller: Realtek RTL8125
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
WLAN controller model: Intel Wi-Fi 6E AX211
Audio chip: Realtek ALC897
Audio output channels: 7.1
Component for: PC
Cooling type: Passive
Motherboard chipset: Intel B860
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
PC health monitoring: Fan/Temperature/Voltage/Water cooling
Power source type: ATX
Product colour: White
Windows operating systems supported: Windows 11 x64
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2580
3rd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 25110
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
ACPI version: 5.0
BIOS memory size: 256
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Battery weight: 3
Country of origin: China
Lithium weight per battery: 0.07
Number of battery cells: 1
Package depth: 268
Package height: 68
Package weight: 1902.5
Package width: 270
Products per shipping (inner) case: 1
Depth: 244
Height: 35
Width: 244
Antenna included: Yes
Batteries included: Yes
Bundled software: Norton Internet Security (OEM version)
LAN bandwidth management software
Screws included: Yes
Warranty period: 3
Weight: 1700
Model: B860M AORUS ELITE WIFI6E ICE
Units per Shipping Box: 8
Unit Calculated Volume: 0.004032
Product Net Weight: 1.4
Unit Calculated Weight: 1.9
