Mainboard|GIGABYTE|AMD X870E|Socket AM5|ATX|RAM DDR5-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|5xNumber of M.2 (M) slots|GIGABYTE X870E AORUS MASTER X3D|X870EAMASTERX
605,91 €
4 laos
Tellitud: 0
Saadaval olevad esemed: 4
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
XS
0 ( 000 )
23
32
44
55
S
24
23
32
44
55
M
25
23
32
44
55
L
26
23
32
44
55
M
29
23
32
44
55
L
32
23
32
44
55
M
34
23
32
44
55
4 - Päeva Transport
apr. 10 apr. 14
Kirjeldus
Tootja kood (MPN): X870E A MASTER X
ELKO kood: 1455630
Description:

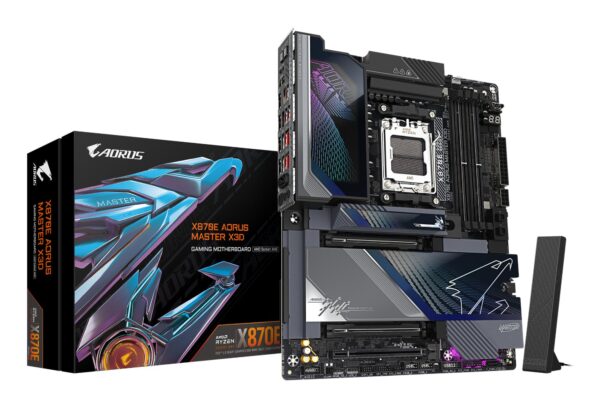

GIGABYTE X870E AORUS MASTER X3D
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
- X3D Turbo Mode 2.0 : Incredible X3D performance unleashed by AI
- Dual Channel DDR5: 4DIMMs with AMD EXPO Memory Module Support. DDR5 OC up to 9000MT/s
- AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
- Digital twin 18+2+2 phases VRM solution
- PCIe EZ-Latch Plus Duo: One click for screwless & quick release on dual PCIe slots
- WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
- M.2 EZ-Latch Click & Plus: Quick Release & Screwless Design on M.2 slots and heatsinks
- Ultra-Fast Storage: 5M.2 slots, including PCIe 5.0 x4
- Fast Networking: 10GbE LAN + 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
- Extended Connectivity: HDMI, Dual USB4 Type-C with DP-Alt, Front QC-USB 65W
Summary: GIGABYTE X870E AORUS MASTER X3D Motherboard – Supports AMD Ryzen 9000 CPUs, 18+2+2 Phases Digital VRM, up to 9000Hz DDR5 (OC), 2xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 10GbE LAN, USB 4. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 4096 x 2304 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8126, Realtek RTL8127, Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Vendor Homepage: https://www.gigabyte.com/Motherboard/X870E-AORUS-MASTER-X3D
Category Code: MBA
CnCode: 84733020
Unit Box Height: 0.095
Unit Box Length: 0.31
Unit Box Width: 0.34
Audio chip: Realtek ALC1220-VB/ESS 9118
Audio output channels: 7.1
Component for: PC
Cooling type: Passive
Motherboard chipset: AMD X870E
Motherboard chipset family: AMD
Motherboard form factor: ATX
PC health monitoring: CPU/Fan/Temperature/Voltage/Water cooling
Power source type: ATX
Product colour: Black
Windows operating systems supported: Windows 11 x64
Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
ECC сompatibility: Non-ECC
Maximum internal memory: 256
Maximum internal memory per slot: 64
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 9000
Supported memory clock speeds: 4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000/8200/8400/8600/8800/9000
Supported memory types: DDR5-SDRAM
Unbuffered memory: Yes
Number of HDDs supported: 2
Number of storage drives supported: 7
RAID levels: 0/1/10/5
RAID support: Yes
Supported storage drive interfaces: M.2,PCI Express 4.0,PCI Express 5.0,SATA III
Supported storage drive types: HDD & SSD
DirectX version: 12.0
HDCP: Yes
HDCP version: 2.3
Maximum resolution: 4096 x 2304
Parallel processing technology support: Not supported
ATX Power connector (24-pin): Yes
Chassis intrusion connector: Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Front panel connector: Yes
Number of chassis fan connectors: 6
Number of CPU fan connectors: 2
Number of EPS power connectors (8-pin): 2
Number of noise detection headers: 1
Number of RGB LED pin headers: 5
Number of SATA III connectors: 2
Number of temperature sensor headers: 2
Number of water pump connectors: 2
RGB LED pin header: Yes
TPM connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2×2 connectors: 1
Digital audio optical out: 1
DisplayPort version: 1.4
Ethernet LAN (RJ-45) ports: 2
HDMI ports quantity: 1
HDMI version: 2.1
Headphone outputs: 1
Line-in: Yes
S/PDIF out port: Yes
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 7
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 2×2 Type-C ports quantity: 1
USB4 Gen 2×2 ports quantity: 2
WiFi-AP antenna jack: 2
Bluetooth: Yes
Bluetooth version: 5.4
Ethernet interface type: 10 Gigabit Ethernet/2.5 Gigabit Ethernet/5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet
Ethernet LAN: Yes
LAN controller: Realtek RTL8126/Realtek RTL8127
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi: Yes
Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
WLAN controller model: MediaTek MT7927
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 2580
2nd M.2 highest PCI Express generation: 5.0
2nd M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 2280
4th M.2 highest PCI Express generation: 4.0
4th M.2 largest key size: 2280
5th M.2 highest PCI Express generation: 4.0
5th M.2 largest key size: 2280
Number of M.2 (M) slots: 5
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 2
ACPI version: 5.0
BIOS memory size: 512
BIOS type: UEFI AMI
Clear CMOS button: Yes
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Battery capacity: 220
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Battery weight: 3
Country of origin: Taiwan
Lithium weight per battery: 0.07
Number of battery cells: 1
Package depth: 310
Package height: 92
Package weight: 4330
Package width: 340
Products per shipping (inner) case: 1
Depth: 244
Height: 35
Width: 305
Antenna included: Yes
Batteries included: Yes
Bundled software: Norton® Internet Security (OEM version)
Screws included: Yes
Warranty period: 3
Weight: 3780
Model: GIGABYTE X870E AORUS MASTER X3D
Units per Pallet: 0
Units per Shipping Box: 3
Unit Calculated Volume: 0.01531
Unit Calculated Weight: 4.35
