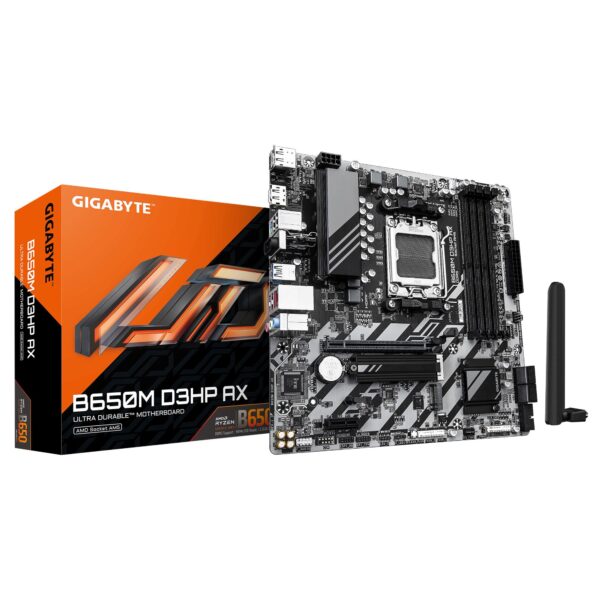

Mainboard|GIGABYTE|AMD B650|SAM5|Micro-ATX|Memory DDR5|Memory slots 4|B650MD3HPAX1.3
142,30 €
14 laos
Tellitud: 0
Saadaval olevad esemed: 14
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
XS
0 ( 000 )
23
32
44
55
S
24
23
32
44
55
M
25
23
32
44
55
L
26
23
32
44
55
M
29
23
32
44
55
L
32
23
32
44
55
M
34
23
32
44
55
4 - Päeva Transport
dets. 25 dets. 29
Kirjeldus
Tootja kood (MPN): B650M D3HP AX 1.3
ELKO kood: 1446751
Description:
Elevate your computing experience with GIGABYTE’s renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you’re a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
- AMD Socket AM5：Supports AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors
- Unparalleled Performance：5+2+2 Phases Digital VRM Solution
- Dual Channel DDR5：4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
- SuperSpeed Storage：PCIe 4.0 x4 M.2 Connector
- EZ-Latch：PCIe x16 Slot with Quick Release Design
- Fast Networks：Wi-Fi 6E 802.11ax & 2.5GbE LAN
- Extended Connectivity：2*DP, HDMI
- Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Summary: GIGABYTE B650M D3HP AX Motherboard – AMD Ryzen 9000 Series CPUs, 5+2+2 Phases VRM, up to 8000MHz DDR5 (OC), 2xPCIe 4.0 M.2, WIFI 6E, 2.5GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Realtek RTL8125, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Vendor Homepage: https://www.gigabyte.com/
Category Code: MBA
CnCode: 84733020
Unit Box Height: 0.07
Unit Box Length: 0.27
Unit Box Width: 0.27
Audio chip: Realtek ALC897
Audio output channels: 7.1
Component for: PC
Cooling type: Passive
Motherboard chipset: AMD B650
Motherboard chipset family: AMD
Motherboard form factor: micro ATX
PC health monitoring: Fan/Temperature/Voltage
Power source type: ATX
Product colour: Brown
Windows operating systems supported: Windows 10 x64/Windows 11 x64
Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
ECC сompatibility: Non-ECC
Maximum internal memory: 256
Maximum internal memory per slot: 64
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 8000
Supported memory clock speeds: 4800/5200/5600/6000/6200/6400/6600/6800/7000/7200/7600/7800/8000
Supported memory types: DDR5-SDRAM
Unbuffered memory: Yes
Number of HDDs supported: 4
Number of storage drives supported: 6
RAID levels: 0/1/10
RAID support: Yes
Supported storage drive interfaces: M.2,SATA III
Supported storage drive types: HDD & SSD
DirectX version: 12.0
Discrete graphics support: Yes
HDCP: Yes
Maximum resolution: 4096 x 2160
Parallel processing technology support: Not supported
12V power connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Front panel connector: Yes
Number of chassis fan connectors: 2
Number of CPU fan connectors: 1
Number of EPS power connectors (8-pin): 1
Number of RGB LED pin headers: 3
Number of SATA III connectors: 4
RGB LED pin header: Yes
TPM connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
DisplayPort version: 1.4
DisplayPorts quantity: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes
PS/2 ports quantity: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Bluetooth: Yes
Bluetooth version: 5.3
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
LAN controller: Realtek RTL8125
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)
WLAN controller model: Realtek RTL8852CE
1st M.2 highest PCI Express generation: 4.0
1st M.2 largest key size: 2580
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 22110
Number of M.2 (M) slots: 2
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
ACPI version: 5.0
BIOS memory size: 256
BIOS type: UEFI AMI
Clear CMOS jumper: Yes
Desktop Management Interface (DMI) version: 2.7
System Management BIOS (SMBIOS) version: 2.7
Battery technology: Lithium-Manganese Dioxide (LiMnO2)
Battery type: CR2032
Battery weight: 3
Country of origin: China
Lithium weight per battery: 0.07
Number of battery cells: 1
Package depth: 268
Package height: 68
Package weight: 1203
Package width: 270
Products per shipping (inner) case: 1
Depth: 244
Height: 35
Width: 244
Antenna included: Yes
Batteries included: Yes
Bundled software: Norton® Internet Security (OEM version)
LAN bandwidth management software
Screws included: Yes
Warranty period: 3
Model: B650M D3HP AX 1.3
Units per Pallet: 0
Units per Shipping Box: 10
Unit Calculated Volume: 0.006058
Unit Calculated Weight: 1.19
