Kirjeldus
Tootja kood (MPN): PRIME B850-PLUS
ELKO kood: 1437636
Description:

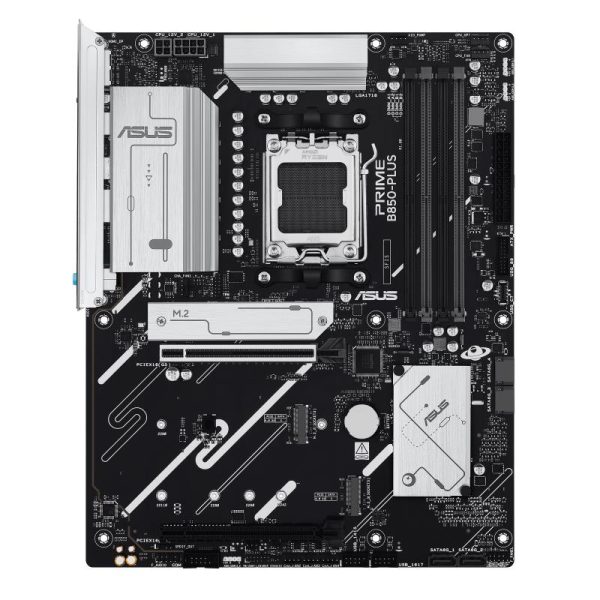

Prime B850-PLUS-CSM
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B850-PLUS-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Summary: ASUS PRIME B850-PLUS-CSM. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: AMD
Vendor Homepage: https://www.asus.com/motherboards-components/motherboards/csm/prime-b850-plus-csm/
Category Code: MBA
CnCode: 84733020
Unit Box Height: 0.27
Unit Box Length: 0.355
Unit Box Width: 0.07
Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5
Supported processor sockets: Socket AM5
ECC ?ompatibility: ECC & non-ECC
Maximum internal memory: 256
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory types: DDR5-SDRAM
Unbuffered memory: Y
Number of HDDs supported: 4
Number of storage drives supported: 7
RAID levels: 0/1/10/5
RAID support: Y
Supported storage drive interfaces: M.2,SATA III
Supported storage drive types: HDD & SSD
Parallel processing technology support: Not supported
12V power connector: Y
ATX Power connector (24-pin): Y
Chassis intrusion connector: Y
CPU fan connector: Y
EPS power connector (8-pin): Y
Front panel audio connector: Y
Number of chassis fan connectors: 4
Number of COM connectors: 1
Number of CPU fan connectors: 1
Number of SATA III connectors: 4
S/PDIF out connector: Y
Thunderbolt headers: 1
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
Line-in: Y
Microphone in: Y
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Y
Wi-Fi: N
Audio output channels: 7.1
Component for: PC
Cooling type: Passive
Motherboard chipset: AMD B850
Motherboard chipset family: AMD
Motherboard form factor: ATX
Product colour: Black/White
Windows operating systems supported: Windows 10 x64/Windows 11
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 22110
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
BIOS memory size: 256
BIOS type: UEFI AMI
Depth: 244
Width: 305
Cables included: SATA
Screws included: Y
Model: PRIME B850-PLUS
Units per Shipping Box: 5
Unit Calculated Volume: 0.007992
Unit Calculated Weight: 1.74
