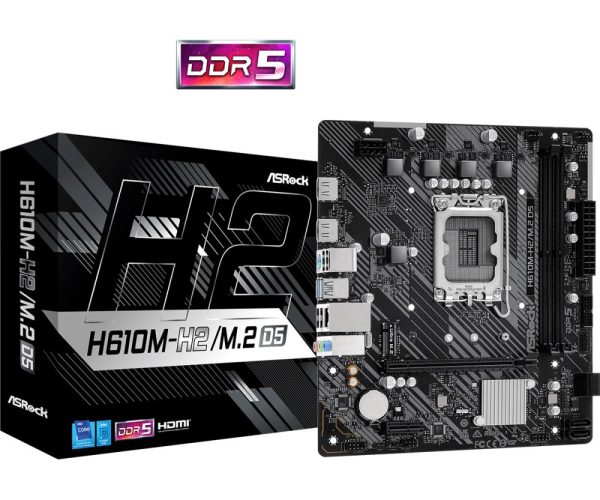

Mainboard|ASROCK|Intel H610|LGA1700|Micro-ATX|Memory DDR5|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|2xHDMI|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|H610M-H2/M.2D5
73,93 €
30 laos
Tellitud: 0
Saadaval olevad esemed: 30
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
XS
0 ( 000 )
23
32
44
55
S
24
23
32
44
55
M
25
23
32
44
55
L
26
23
32
44
55
M
29
23
32
44
55
L
32
23
32
44
55
M
34
23
32
44
55
4 - Päeva Transport
dets. 17 dets. 21
Kirjeldus
Tootja kood (MPN): H610M-H2/M.2D5
ELKO kood: 1405952
Description:
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Ultra M.2 32Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
step1: Install Auto Driver Installer
step2: Update drivers needed
step3: Done!
Dual HDMI Outputs
Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
- Supports 14th, 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 3+1+1 Phase Power Design
- Supports DDR5 5600MHz*
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: 2 HDMI
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
- 4 USB 3.2 Gen1 (2 Rear, 2 Front)
- 6 USB 2.0 (4 Rear, 2 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer
Summary: Asrock H610M-H2/M.2 D5. Processor manufacturer: Intel, Processor socket: LGA 1700. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek 8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Vendor Homepage: https://www.asrock.com/MB/Intel/H610M-H2M.2%20D5/index.asp#Overview
Category Code: MBI
Unit Box Height: 0.06
Unit Box Length: 0.277
Unit Box Width: 0.241
Maximum number of SMP processors: 1
Processor manufacturer: Intel
Processor socket: LGA 1700
Maximum internal memory: 96
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 2
Supported memory types: DDR5-SDRAM
Supported storage drive interfaces: M.2,SATA III
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Front panel audio connector: Yes
Number of SATA III connectors: 4
TPM connector: Yes
USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 2
Line-in: Yes
Microphone in: Yes
PS/2 ports quantity: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
LAN controller: Realtek 8111H
Wi-Fi: No
Audio output channels: 7.1
Component for: PC
Motherboard chipset: Intel H610
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Windows operating systems supported: Windows 10 x64/Windows 11 x64
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
BIOS memory size: 128
BIOS type: UEFI AMI
Depth: 193
Width: 220
Model: H610M-H2/M.2 D5
Units per Shipping Box: 20
Unit Calculated Volume: 0.004544
Product Net Weight: 0.7
Unit Calculated Weight: 0.76
