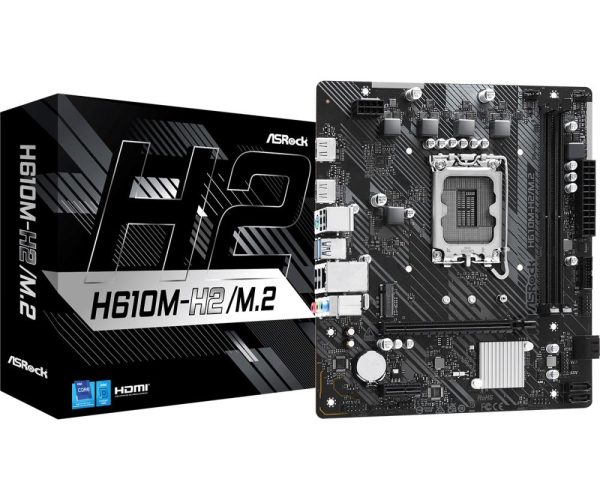

Mainboard|ASROCK|Intel H610|LGA1700|Micro-ATX|Memory DDR4|Memory slots 2|1xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|1xM.2|2xHDMI|4xUSB 2.0|2xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|H610M-H2/M.2
67,53 €
21 laos
Tellitud: 0
Saadaval olevad esemed: 21
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
XS
0 ( 000 )
23
32
44
55
S
24
23
32
44
55
M
25
23
32
44
55
L
26
23
32
44
55
M
29
23
32
44
55
L
32
23
32
44
55
M
34
23
32
44
55
4 - Päeva Transport
apr. 10 apr. 14
Kirjeldus
Tootja kood (MPN): H610M-H2/M.2
ELKO kood: 1429032
Description:
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Ultra M.2 32Gb/s (PCIe Gen3 x4)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
– step1: Install Auto Driver Installer
– step2: Update drivers needed
– step3: Done!
Dual HDMI Outputs
Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- 3+1+1 Phase Power Design
- 2 x DDR4 DIMMs
- Supports Dual Channel, up to 3200
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options: 2 HDMI
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Ultra M.2 (PCIe Gen3 x4)
- 4 USB 3.2 Gen1 (2 Rear, 2 Front)
- 6 USB 2.0 (4 Rear, 2 Front)
- Realtek Gigabit LAN
- Supports ASRock Auto Driver Installer
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.
Summary: Asrock H610M-H2/M.2. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen,…. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Vendor Homepage: https://www.asrock.com/mb/Intel/H610M-H2M.2/index.asp
Category Code: MBI
CnCode: 84733020
Unit Box Height: 0.06
Unit Box Length: 0.28
Unit Box Width: 0.24
Audio chip: Realtek ALC897
Audio output channels: 7.1
Certification: – FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
Component for: PC
Motherboard chipset: Intel H610
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Product colour: Multicolour
Windows operating systems supported: Windows 10 x64/Windows 11 x64
Compatible processor series: in/Intel Core i3 12th Gen/Intel Core i3 13th Gen/Intel Core i3 14th Gen/Intel Core i5 12th Gen/Intel Core i5 13th Gen/Intel Core i5 14th Gen/Intel Core i7 12th Gen/Intel Core i7 13th Gen/Intel Core i7 14th Gen/Intel Core i9 12th Gen/Intel Core i9 13th Gen
Processor manufacturer: Intel
Processor socket: LGA 1700
ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 64
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 2
Supported memory clock speed (max): 3200
Supported memory types: DDR4-SDRAM
Unbuffered memory: Yes
Supported storage drive interfaces: M.2,SATA III
Supported storage drive types: HDD & SSD
HDCP: Yes
12V power connector: Yes
ATX Power connector (24-pin): Yes
Chassis intrusion connector: Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Number of chassis fan connectors: 1
Number of CPU fan connectors: 1
Number of SATA III connectors: 4
TPM connector: Yes
USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 2
Line-in: Yes
Microphone in: Yes
PS/2 ports quantity: 1
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet interface type: Fast Ethernet/Gigabit Ethernet
Ethernet LAN: Yes
LAN controller: Realtek RTL8111H
Wi-Fi: No
Number of M.2 (M) slots: 1
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
BIOS memory size: 128
BIOS type: UEFI AMI
Depth: 193
Width: 220
Model: H610M-H2/M.2
Units per Shipping Box: 20
Unit Calculated Volume: 0.004511
Unit Calculated Weight: 0.758
