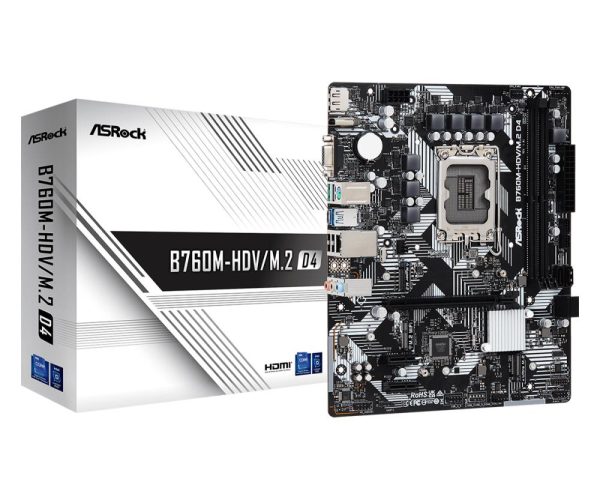

Mainboard|ASROCK|Intel B760 Express|LGA1700|Micro-ATX|Memory DDR4|Memory slots 2|2xPCI-Express 3.0 1x|1xPCI-Express 4.0 16x|2xM.2|1x15pin D-sub|1xHDMI|1xDisplayPort|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xPS/2|1xRJ45|3xAudio port|B760M-HDV/M.2D4
91,15 €
15 laos
Tellitud: 0
Saadaval olevad esemed: 15
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
XS
0 ( 000 )
23
32
44
55
S
24
23
32
44
55
M
25
23
32
44
55
L
26
23
32
44
55
M
29
23
32
44
55
L
32
23
32
44
55
M
34
23
32
44
55
4 - Päeva Transport
dets. 13 dets. 17
Kirjeldus
Tootja kood (MPN): B760M-HDV/M.2D4
ELKO kood: 1393844
Description:
5+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
High Speed M.2 Solution(PCIe Gen4 x4)
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
3 Graphics Outputs
Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
- ‧Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
- 5+1+1 Power Phase
- Supports DDR4 5333MHz (OC)
- 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, DisplayPort, D-Sub
- Realtek ALC887/897 7.1 CH HD Audio Codec
- 4 SATA3, 1 Hyper M.2 (PCIe Gen4x4)
- 1 Ultra M.2 (PCIe Gen3x4 & SATA)
- 1 USB 3.2 Gen1 Type-C (Rear)
- 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
- 5 USB 2.0 (2 Rear, 3 Front)
- Realtek 1G LAN
- Supports ASRock Auto Driver Installer
Summary: Asrock B760M-HDV/M.2 D4. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 5, 10. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H. Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: Intel
Vendor Homepage: https://www.asrock.com/mb/Intel/B760M-HDVM.2%20D4/index.asp#Specification
Category Code: MBI
Unit Box Height: 0.06
Unit Box Length: 0.28
Unit Box Width: 0.242
Compatible processor series: Intel Core i3/Intel Core i5/Intel Core i7/Intel Core i9
Maximum number of SMP processors: 1
Processor manufacturer: Intel
Processor socket: LGA 1700
ECC ?ompatibility: Non-ECC
Maximum internal memory: 64
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 2
Supported memory clock speeds: 3200/4400/5333
Supported memory types: DDR4-SDRAM
Unbuffered memory: Yes
RAID levels: 0/1/10/5
RAID support: Yes
Supported storage drive interfaces: M.2,SATA III
HDCP: Yes
Parallel processing technology support: Not supported
ATX Power connector (24-pin): Yes
Chassis intrusion connector: Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Front panel connector: Yes
Number of SATA III connectors: 4
TPM connector: Yes
USB 2.0 connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
DisplayPort version: 1.4
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
Line-in: Yes
Microphone in: Yes
PS/2 ports quantity: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
VGA (D-Sub) ports quantity: 1
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
LAN controller: Realtek RTL8111H
Wi-Fi: No
Audio chip: Realtek ALC897
Audio output channels: 7.1
Certification: – FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)
Component for: PC
Motherboard chipset: Intel B760
Motherboard chipset family: Intel
Motherboard form factor: micro ATX
Windows operating systems supported: Windows 10 Education x64/Windows 11 x64
Number of M.2 (M) slots: 1
PCI Express x1 (Gen 3.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
BIOS memory size: 128
BIOS type: UEFI AMI
Depth: 201
Width: 244
Cables included: SATA
Model: B760M-HDV/M.2 D4
Units per Shipping Box: 1
Unit Calculated Volume: 0.004066
Product Net Weight: 0.65
Unit Calculated Weight: 0.76
