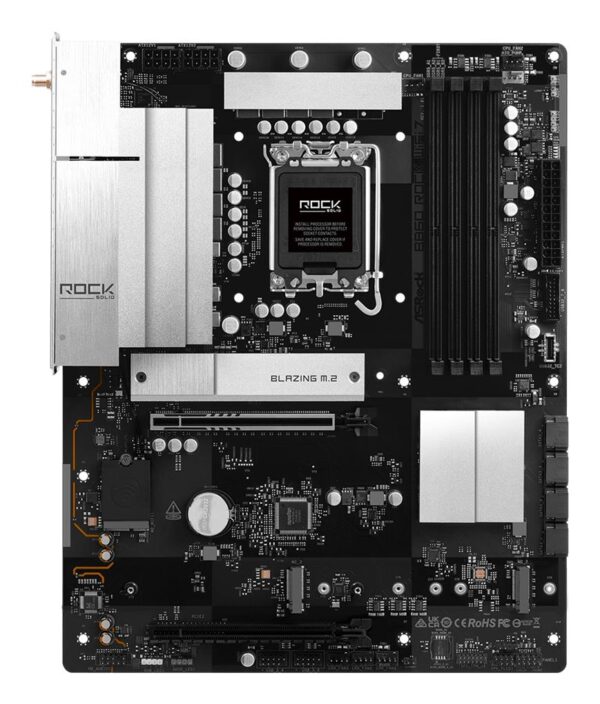

Mainboard|ASROCK|B860 Rock WiFi 7|Intel B860|LGA 1851 (Socket V1)|ATX|RAM DDR5-SDRAM|4xSlots|Wi-Fi Yes|Bluetooth Yes|3xNumber of M.2 (M) slots|B860ROCKWIFI7

Tootja kood (MPN): B860 ROCK WIFI 7
ELKO kood: 1459033
Description:

Performance
Optimized VRM Design
VRM Design
8+1+1+1+1 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers stable and reliable performance while maintaining low operating temperatures for advanced gamers as well.

Dr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

Power Connector
Hi-Density Power Connector
CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.

6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it’s able to support the latest memory modules with most extreme memory performance!

DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

High Speed M.2 Solution
PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

Hyper M.2 Gen4 x4
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Intelligent Cooling Design
Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

PWM/DC Fan Support
ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.

Fan-Tastic Tuning
ASRock Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system’s cooling performance and noise reduction requirements.

Connectivity
Wi-Fi 7
Enhanced VR Experience
Wi-Fi 7 offers higher data throughput, lower latency, and Multi-link Operation. These features ensure a smooth and real-time interactive experience, making the VR/AR experience more immersive and connected.

Wi-Fi 7 802.11be
Latest WiFi 7 technology delivers extreme wireless internet speeds and low latency, with higher throughput and Multi-RU as well as puncturing technology. The new WiFi 7(802.11be) technology is able to accelerate cloud-based gaming, 8K video streaming, and video conferencing.

Multi-link Operation(MLO)
Multi-link Operation (MLO) enables the simultaneous use of multiple bands and channels, boosting speed and throughput while reducing latency for a smoother, faster internet experience.

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Stylish Design
POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

DIY Friendly
Reinforced Steel Slot [PCIe 5.0 Version]
The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
– Extra anchor points
– Stronger latch
– Ensure signal stability
– Make sure heavy graphics cards to be well-installed.

EZ Setting
Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.

Pre-Installed IO Shield
ASRock strives offer only the cutting edge technology with the most user-friendly design. The pre-installed IO Shield design makes motherboard to be well-installed in the chassis precisely for preventing any interferences and speed up the set-up process.

EZ Installation
Post Status Checker
Displays the real-time status of CPU, DRAM, VGA, and BOOT device with colored LEDs during startup. A simple and efficient way to check system operation at a glance.

Toolless SSD Installation
SSD installation is simplified with a quick release latch, making the installation super easy & simple.

• Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
• 8+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA
• 4 x DDR5 DIMMs, Supports Dual Channel, up to 8666+ (OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16
• Graphics Output Options: 1 HDMI
• Realtek ALC897 7.1 CH HD Audio Codec
• 1 Blazing M.2 (PCIe Gen5x4), 2 Hyper M.2 (PCIe Gen4x4), 4 SATA3
• 2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front), 8 USB 3.2 Gen1 (6 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)
• Realtek 2.5G LAN
• 802.11be Wi-Fi 7 + Bluetooth

Summary: Asrock B860 Rock WiFi 7. Processor manufacturer: Intel, Processor socket: LGA 1851 (Socket V1), Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 4.0, PCI Express 5.0, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 3840 x 2160 pixels. USB connector type: USB Type-A, USB Type-C
Vendor Homepage: https://asrock.com/MB/Intel/B860%20Rock%20WiFi%207/index.asp
Category Code: MBI
Unit Box Height: 0.075
Unit Box Length: 0.35
Unit Box Width: 0.28
Audio chip: Realtek ALC897
Audio output channels: 7.1
Component for: PC
Motherboard chipset: Intel B860
Motherboard chipset family: Intel
Motherboard form factor: ATX
Product colour: Black
Windows operating systems supported: Windows 11 x64
Compatible processor series: Intel Core Ultra (Series 2)
Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Supported processor sockets: LGA 1851
ECC сompatibility: Non-ECC
Maximum internal memory: 256
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 8666
Supported memory types: DDR5-SDRAM
Unbuffered memory: Yes
Number of storage drives supported: 7
RAID levels: 0/1/10/5
RAID support: Yes
Supported storage drive interfaces: PCI Express 4.0,PCI Express 5.0,SATA III
Supported storage drive types: HDD & SSD
HDCP: Yes
HDCP version: 2.3
High Dynamic Range (HDR) supported: Yes
Maximum resolution: 3840 x 2160
Parallel processing technology support: Not supported
12V power connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Number of chassis fan connectors: 4
Number of CPU fan connectors: 2
Number of EPS power connectors (8-pin): 2
Number of RGB LED pin headers: 1
Number of SATA III connectors: 4
Number of water pump connectors: 1
RGB LED pin header: Yes
TPM connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Headphone outputs: 3
Line-in: Yes
Microphone in: Yes
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 6
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
USB connector type: USB Type-A/USB Type-C
WiFi-AP antenna jack: 2
Bluetooth: Yes
Bluetooth version: 5.4
Ethernet interface type: 2.5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet
Ethernet LAN: Yes
LAN controller: Dragon RTL8125BG
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi: Yes
Wi-Fi standards: 802.11a/802.11b/802.11g/Wi-Fi 4 (802.11n)/Wi-Fi 5 (802.11ac)/Wi-Fi 6 (802.11ax)/Wi-Fi 6E (802.11ax)/Wi-Fi 7 (802.11be)
1st M.2 highest PCI Express generation: 5.0
1st M.2 largest key size: 2280
2nd M.2 highest PCI Express generation: 4.0
2nd M.2 largest key size: 2280
3rd M.2 highest PCI Express generation: 4.0
3rd M.2 largest key size: 2280
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
BIOS memory size: 256
BIOS type: UEFI AMI
Depth: 244
Width: 305
Antenna included: Yes
Cables included: SATA
Compliance certificates: CE/Federal Communications Commission (FCC)
Model: B860 Rock WiFi 7
