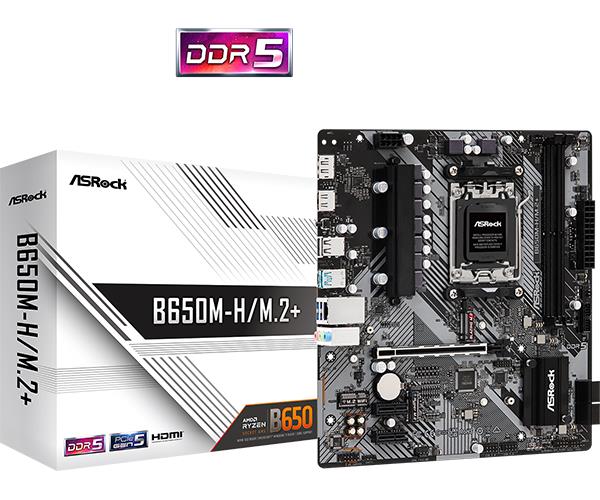

Mainboard|ASROCK|AMD B650|SAM5|Micro-ATX|Memory DDR5|Memory slots 2|1xPCI-E|2xPCI-Express 4.0 1x|1xPCI-Express 4.0 16x|1xM.2|1xHDMI|1xDisplayPort|1xAudio-In|1xAudio-Out|1xMicrophone|2xUSB 2.0|3xUSB 3.2|1xUSB-C|1xRJ45|B650M-H/M.2+

Tootja kood (MPN): B650M-H/M.2+
ELKO kood: 1405947
Description:

Optimized VRM Design
Featuring sturdy components optimized for AMD Ryzen™ 7000X3D series processors, offering enhanced performance for gamers.

6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, giving a stable and reliable system.

Reinforced Steel Slot
[PCIe 4.0 Version]
The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.

Audio That Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
●Static Noise Suppression
●Echo Cancellation
●Lateral Sound Cancellation
●Voice Stabilizer

Ultimate Gaming Experience

●Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

●Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

PCIe Gen5 Blazing M.2
The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.

USB 3.2 Gen1 Type-C
USB 3.2 Gen1 Type-C delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the rear panel of computer case.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.

Auto Driver Installer
Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
Step1: Install Auto Driver Installer
Step2: ADI will automatically download and install all necessary drivers.
Step3: Done!

BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.

• Supports AMD Socket AM5 Ryzen™ 8000 and 7000 Series Processors
• 6+1+1 Power Phase Dr.MOS, Supports up to 120W CPU
• 2 x DDR5 DIMMs, supports up to 6400+(OC)
• 1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key E for WiFi
• Integrated AMD RDNA™ 2 Graphics *
• Graphics Output Options: HDMI, DisplayPort
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 4 SATA3, 1 Blazing M.2 (PCIe Gen5 x4), 1 Hyper M.2 (PCIe Gen4 x4)
• 6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
• Realtek Gigabit LAN

Summary: Asrock B650M-H/M.2+. Processor manufacturer: AMD, Processor socket: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, RAID levels: 0, 1, 10. Graphics card family: AMD. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
Vendor Homepage: https://www.asrock.com/MB/AMD/B650M-HM.2+/index.asp#Overview
Category Code: MBA
Unit Box Height: 0.062
Unit Box Length: 0.28
Unit Box Width: 0.262
Maximum number of SMP processors: 1
Processor manufacturer: AMD
Processor socket: Socket AM5
ECC ?ompatibility: ECC & non-ECC
Maximum internal memory: 96
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 2
Supported memory types: DDR5-SDRAM
Unbuffered memory: Y
Number of storage drives supported: 6
RAID levels: 0/1/10
RAID support: Y
Supported storage drive interfaces: M.2,SATA III
Graphics card family: AMD
ATX Power connector (24-pin): Y
CPU fan connector: Y
Front panel audio connector: Y
Number of SATA III connectors: 4
TPM connector: Y
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
DisplayPort version: 1.4
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
Line-in: Y
Microphone in: Y
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Y
LAN controller: Realtek RTL8111H
Wi-Fi: N
Audio output channels: 7.1
Component for: PC
Motherboard chipset: AMD B650
Motherboard chipset family: AMD
Motherboard form factor: Micro ATX
Windows operating systems supported: Windows 10 x64/Windows 11 x64
Number of M.2 (M) slots: 1
PCI Express x1 (Gen 4.x) slots: 2
PCI Express x16 (Gen 4.x) slots: 1
BIOS type: UEFI AMI
Depth: 226
Width: 244
Model: B650M-H/M.2+
Units per Shipping Box: 10
Unit Calculated Volume: 0.005513
Unit Calculated Weight: 1.11
