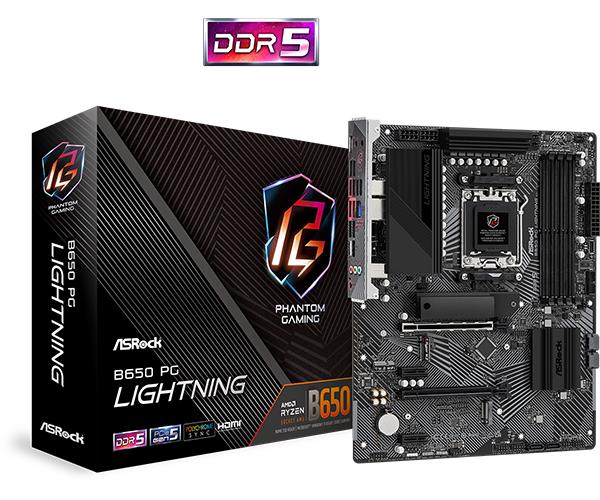

Mainboard|ASROCK|AMD B650|SAM5|ATX|Memory DDR5|Memory slots 4|2xPCI-Express 4.0 1x|2xPCI-Express 4.0 16x|3xM.2|1xHDMI|1xAudio-In|1xAudio-Out|1xMicrophone|4xUSB 2.0|7xUSB 3.2|2xUSB-C|1xRJ45|B650PGLIGHTNING
155,52 €
4 laos
Tellitud: 0
Saadaval olevad esemed: 4
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
XS
0 ( 000 )
23
32
44
55
S
24
23
32
44
55
M
25
23
32
44
55
L
26
23
32
44
55
M
29
23
32
44
55
L
32
23
32
44
55
M
34
23
32
44
55
4 - Päeva Transport
veebr. 26 märts 02
Kirjeldus
Tootja kood (MPN): B650PGLIGHTNING
ELKO kood: 1386732
Description:
- Supports AMD Ryzen™ 7000 Series Processors
- 14+2+1 Phase Power Design, SPS
- 4 x DDR5 DIMMs, supports up to 6600+(OC)
- 1 PCIe 5.0 x16, 1 PCIe 3.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key-E for WiFi
- Graphics Output Options: 1 HDMI
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 1 Blazing M.2 (PCIe Gen5x4), 1 Hyper M.2 (PCIe Gen4x4), 1 M.2 (PCIe Gen3x2 & SATA3), 4 SATA3
- 1 USB 3.2 Gen2x2 Type-C (Front), 1 USB 3.2 Gen2 Type-C (Rear), 1 USB 3.2 Gen2 Type-A (Rear), 4 USB 3.2 Gen1 (2 Rear, 2 Front), 9 USB 2.0 (6 Rear, 3 Front)
- Killer 2.5G LAN
- 802.11ax Wi-Fi 6E + Bluetooth
Summary: Asrock B650 PG Lightning. Processor manufacturer: AMD, Processor socket: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA II, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Graphics card family: AMD, Graphics card: AMD RDNA 2. Ethernet interface type: 2.5 Gigabit Ethernet, LAN controller: Dragon RTL8125BG, Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Vendor Homepage: https://www.asrock.com/mb/AMD/B650%20PG%20Lightning/index.asp
Category Code: MBA
Unit Box Height: 0.08
Unit Box Length: 0.36
Unit Box Width: 0.3
Audio output channels: 7.1
Component for: PC
Motherboard chipset: AMD B650
Motherboard chipset family: AMD
Motherboard form factor: ATX
Windows operating systems supported: Windows 10 x64/Windows 11 x64
Processor manufacturer: AMD
Processor socket: Socket AM5
ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 128
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speeds: 6400/6600/6666/6800
Supported memory types: DDR5-SDRAM
Unbuffered memory: Yes
RAID levels: 0/1/10
RAID support: Yes
Supported storage drive interfaces: M.2,SATA II
Supported storage drive types: HDD & SSD
Graphics card: AMD RDNA 2
Graphics card family: AMD
HDCP: Yes
On-board graphics card: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Number of SATA III connectors: 4
RGB LED pin header: Yes
TPM connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
Line-in: Yes
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 7
USB 3.2 Gen 2×2 Type-C ports quantity: 1
Bluetooth: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
Ethernet LAN: Yes
LAN controller: Dragon RTL8125BG
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi: Yes
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 1
BIOS memory size: 256
BIOS type: UEFI AMI
Depth: 244
Width: 305
Cables included: SATA
Model: B650 PG Lightning
Units per Shipping Box: 1
Unit Calculated Volume: 0.00864
Unit Calculated Weight: 1.71
