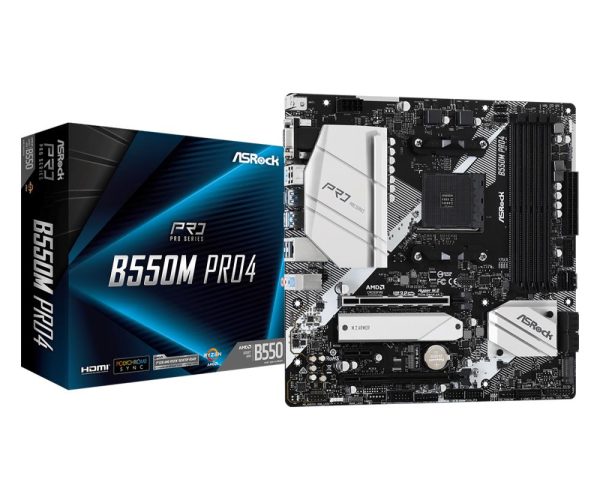

Mainboard|ASROCK|AMD B550|SAM4|MicroATX|1xPCI-Express 3.0 1x|1xPCI-Express 3.0 16x|1xM.2|1xPCI-Express 4.0 16x|Memory DDR4|Memory slots 4|1x15pin D-sub|1xHDMI|1xDisplayPort|2xUSB 2.0|1xUSB type C|5xUSB 3.2|1xPS/2|1xRJ45|3xAudio port|B550MPRO4

Tootja kood (MPN): B550MPRO4
ELKO kood: 1305223
Description:

IT’S TIME FOR B550 MOTHERBOARDS
Everything You Need For Computing

Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

2oz Copper PCB
2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it’s able to support the latest DDR4 memory modules with most extreme memory performance!

RULE YOUR OWN LIGHTING WAY – POLYCHROME RGB
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

A SOLID M.2-SOLUTION PERFORMER
Dual M.2 For SSD, Supports Type 22110 M.2
Ready for higher capacity and even faster Type 22110 M.2 NVMe SSD to fulfill the need of performance. Hyper M.2 socket that supports PCIe Gen4 x4 while M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode.
M.2 Armors
Good M.2 SSD protection is important for longevity and stability. ASRock provides a completed M.2 armor solution that makes SSDs to run in a certain low temperature.

Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.

Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.

Post Status Checker
An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.

• Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
• 8 Power Phase Design, Digi Power
• Supports DDR4 4733+ (OC)
• 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
• Graphics Output Options: HDMI, DisplayPort, D-Sub
• AMD CrossFireX™
• 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
• 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
• 2 USB 3.2 Gen2 (Rear Type A+C), 8 USB 3.2 Gen1 (4 Front, 4 Rear)
• Realtek Gigabit LAN

Summary: Asrock B550M Pro4. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Parallel processing technology support: CrossFireX, Quad-GPU CrossFireX, Maximum resolution: 5120 x 2880 pixels. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
Vendor Homepage: https://www.asrock.com/mb/AMD/B550M%20Pro4/#Overview
Category Code: MBA
CnCode: 84733020
Unit Box Height: 0.26
Unit Box Length: 0.06
Unit Box Width: 0.28
Audio chip: Realtek ALC1200
Audio output channels: 7.1
Certification: FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)
Component for: PC
Motherboard chipset: AMD B550
Motherboard chipset family: AMD
Motherboard form factor: micro ATX
PC health monitoring: CPU/Fan/Temperature/Voltage
Windows operating systems supported: Windows 10 x64/Windows 11 x64
Compatible processor series: AMD Ryzen 3000 Series
Maximum number of SMP processors: 1
Processor manufacturer: AMD
Processor socket: Socket AM4
Supported processor sockets: Socket AM4
ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 128
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speed (max): 4733
Supported memory clock speeds: 2133/2400/2667/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4533/4600/4666/4733
Supported memory module capacities: 16GB/32GB/4GB/8GB
Supported memory types: DDR4-SDRAM
Unbuffered memory: Yes
RAID levels: 0/1/10
RAID support: Yes
Supported storage drive interfaces: M.2,SATA III
Supported storage drive types: HDD & SSD
DirectX version: 12.0
HDCP: Yes
Maximum resolution: 5120 x 2880
Number of displays supported: 3
Parallel processing technology support: CrossFireX/Quad-GPU CrossFireX
12V power connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
EPS power connector (8-pin): Yes
Front panel audio connector: Yes
Front panel connector: Yes
Number of chassis fan connectors: 4
Number of COM connectors: 1
Number of SATA II connectors: 6
RGB LED pin header: Yes
TPM connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
DisplayPort version: 1.4
DisplayPorts quantity: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Microphone in: Yes
PS/2 ports quantity: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
VGA (D-Sub) ports quantity: 1
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
LAN controller: Realtek RTL8111H
Wake-on-LAN ready: Yes
Wi-Fi: No
Number of M.2 (M) slots: 3
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
ACPI version: 5.1
BIOS memory size: 256
BIOS type: UEFI AMI
System Management BIOS (SMBIOS) version: 2.3
Harmonized System (HS) code: 84733020
Depth: 244
Height: 70
Width: 244
Cables included: SATA
Drivers included: Yes
Weight: 465
Units per Shipping Box: 20
Unit Calculated Volume: 0.005011
Unit Calculated Weight: 1.39
