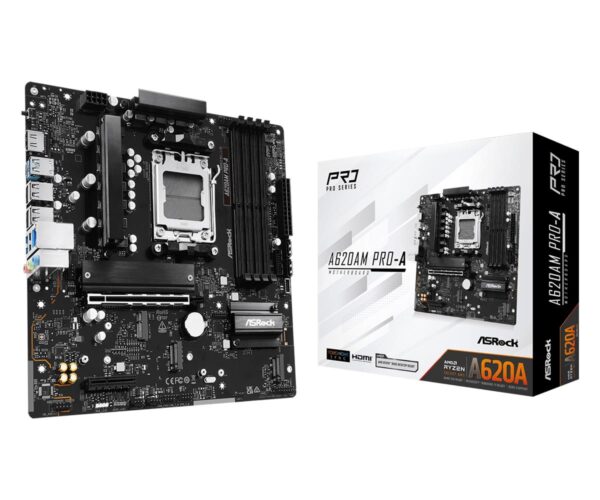

Mainboard|ASROCK|AMD A620|Socket AM5|micro ATX|RAM DDR5-SDRAM|4xSlots|On-board graphics card Yes|3xNumber of M.2 (M) slots|A620AM Pro-A|A620AMPRO-A

Tootja kood (MPN): A620AM PRO-A
ELKO kood: 1448200
Description:

Optimized for stability, durability, and efficiency. It combines reliable performance, user-friendly features and streamlined style for daily computing tasks.

Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

Dr. MOS
Dr.MOS is an integrated power stage optimized for synchronous buck-set down voltage applications, delivering higher current and better thermal efficiency than traditional MOSFETs, ensuring enhanced stability.

Hi-Density Power Connector
CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.

6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

DDR5 XMP & EXPO Support
Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

High Speed M.2 Solution

Hyper M.2 Gen4 x4
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Intelligent Cooling Design

Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

Connectivity

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Stylish Design

SignalRGB
SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

DIY Friendly

M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose wireless connections by M.2 (Key E) slot.

EZ Setting

Auto Driver Installer
No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.

BIOS Flashback
Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required.

Post Status Checker
Displays the real-time status of CPU, DRAM, VGA, and BOOT device with colored LEDs during startup. A simple and efficient way to check system operation at a glance.


• Optimized VRM Design
• 6 Layer PCB
• DDR5 XMP & EXPO Support
• High Speed M.2 Solution
• Intelligent Cooling Design
• POLYCHROME RGB
• M.2 (KEY E) For WiFi
• BIOS Flashback

Summary: Asrock A620AM PRO-A. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, NVMe, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Graphics card family: AMD, Graphics card: AMD RDNA 2, Maximum resolution: 3840 x 2160 pixels. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, LAN controller: Dragon RTL8125BG
Vendor Homepage: https://www.asrock.com/MB/AMD/A620AM%20Pro-A/index.asp#Overview
Category Code: MBA
Unit Box Height: 0.265
Unit Box Length: 0.295
Unit Box Width: 0.06
Audio chip: Realtek ALC897
Audio output channels: 7.1
Component for: PC
Cooling type: Passive
Motherboard chipset: AMD A620
Motherboard chipset family: AMD
Motherboard form factor: micro ATX
Product colour: Black
Windows operating systems supported: Windows 10 x64/Windows 11 x64
Compatible processor series: AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series
Processor manufacturer: AMD
Processor socket: Socket AM5
ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 256
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 4
Supported memory clock speeds: 8000
Supported memory types: DDR5-SDRAM
Unbuffered memory: Yes
Number of HDDs supported: 2
RAID levels: 0/1/10
RAID support: Yes
Supported storage drive interfaces: M.2,NVMe,SATA III
Supported storage drive types: HDD & SSD
Graphics card: AMD RDNA 2
Graphics card family: AMD
HDCP: Yes
HDCP version: 2.3
High Dynamic Range (HDR) supported: Yes
Maximum resolution: 3840 x 2160
On-board graphics card: Yes
Parallel processing technology support: Not supported
12V power connector: Yes
ATX Power connector (24-pin): Yes
Audio connector: Yes
CPU fan connector: Yes
Front panel audio connector: Yes
Number of chassis fan connectors: 3
Number of CPU fan connectors: 2
Number of RGB LED pin headers: 1
Number of SATA III connectors: 2
Number of water pump connectors: 1
RGB LED pin header: Yes
TPM connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
HDMI version: 2.1
Line-in: Yes
Microphone in: Yes
Rear speaker out: Yes
USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
Bluetooth: No
Ethernet interface type: 2.5 Gigabit Ethernet/Fast Ethernet/Gigabit Ethernet
Ethernet LAN: Yes
LAN controller: Dragon RTL8125BG
Wi-Fi: No
Number of M.2 (M) slots: 3
PCI Express x16 (Gen 4.x) slots: 1
BIOS flashback button: Yes
BIOS memory size: 256
BIOS type: UEFI AMI
AMD Extended Profiles for Overclocking (EXPO): Yes
Intel Extreme Memory Profile (XMP): Yes
Depth: 244
Width: 244
Cables included: SATA
M.2 standoff included: Yes
Screws included: Yes
Compliance certificates: CE/Federal Communications Commission (FCC)
PCI Express x4 (Gen 3.x) slots: 1
Model: A620AM Pro-A
Units per Pallet: 0
Units per Shipping Box: 10
Unit Calculated Volume: 0.005406
Unit Calculated Weight: 1.21
