Kirjeldus
Tootja kood (MPN): A520M-HVS
ELKO kood: 1309552
Description:

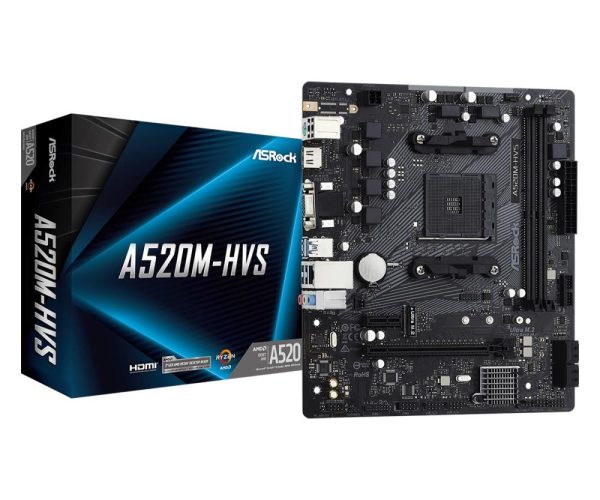

A520 MOTHERBOARD FOR EVERYONE
All Essentials You Need For Computing
Ultra M.2 32Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
- Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors(3000 and 4000 Series Processors)
- 6 Phase Power Design
- Supports DDR4 4733+ (OC)
- 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
- Graphics Output Options: D-Sub, HDMI
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- 4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
- 6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
- 6 x USB 2.0(2 x Rear, 4 x Front)
- Realtek Gigabit LAN
Summary: Asrock A520M-HVS. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen 3000 Series. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III. Graphics card family: AMD, Graphics card: Radeon Vega. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H
Vendor Homepage: https://www.asrock.com/mb/AMD/A520M-HVS/index.asp#Overview
Category Code: MBA
Unit Box Height: 0.51
Unit Box Length: 0.61
Unit Box Width: 0.0145
Audio output channels: 7.1
Component for: PC
Motherboard chipset: AMD A520
Motherboard chipset family: AMD
Motherboard form factor: micro ATX
Compatible processor series: AMD Ryzen 3000 Series
Processor manufacturer: AMD
Processor socket: Socket AM4
ECC сompatibility: Non-ECC
Maximum internal memory: 64
Memory channels: Dual-channel
Memory slots type: DIMM
Number of memory slots: 2
Supported memory clock speeds: 2133/2400/2666/2933/3200/3466/3600/3733/3800/3866/4000/4133/4200/4266/4333/4400/4466/4500/4533
Supported memory types: DDR4-SDRAM
Unbuffered memory: Yes
Number of HDDs supported: 5
Supported storage drive interfaces: M.2,SATA III
Graphics card: Radeon Vega
Graphics card family: AMD
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Front panel audio connector: Yes
Number of chassis fan connectors: 2
Number of COM connectors: 1
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Ethernet LAN (RJ-45) ports: 1
HDMI ports quantity: 1
Microphone in: Yes
PS/2 ports quantity: 1
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
VGA (D-Sub) ports quantity: 1
Ethernet interface type: Gigabit Ethernet
Ethernet LAN: Yes
LAN controller: Realtek RTL8111H
Wake-on-LAN ready: Yes
Wi-Fi: No
PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 3.x) slots: 1
BIOS type: UEFI AMI
Harmonized System (HS) code: 84733020
Depth: 201
Width: 230
Cables included: SATA
Drivers included: Yes
Units per Shipping Box: 20
Unit Calculated Volume: 0.00465
Unit Calculated Weight: 0.85
