KEYBOARD WRL V6 MAX/CARBON BLACK V6M-D3 KEYCHRON

Tootja kood (MPN): V6M-D3
ELKO kood: 1453765
Description:

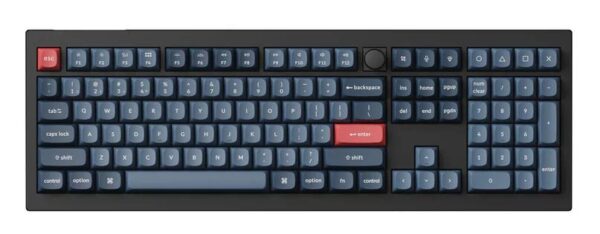

Keychron V6 Max
The V6 Max is a QMK custom mechanical keyboard with 2.4 GHz wireless and Bluetooth 5.1 connection. It has a full-size 100% layout and offers a gasket mount design, sound-absorbing foam, double-shot PBT keycaps, and more. The V6 Max is designed for a personalized experience and enhanced typing comfort.

2.4 GHz & Bluetooth Connection
Experience peak gaming performance on the fly with the 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the V6 Max via Bluetooth 5.1 to three devices.

All-around customizable keyboard
To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every parts the way you want.

Dual Receivers
For a better 2.4 GHz wireless experience, the V6 Max comes with Type-C and Type-A receivers. Enjoy the quick plug-and-play time. Or, put them away in the keyboard magnetic storage slot at the top right corner.

An Epic Core Inside The Keyboard
A powerful ARM architecture MCU equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box, which makes the latency hardly noticeable even in competitive games.

OSA Profile Double-shot PBT Keycaps
These double-shot PBT keycaps have a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

Switch Layouts Between macOS & Windows
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V6 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Gasket Mount Design
By adopting a gasket mount design along with a PC (Polycarbonate) plate, the V6 Max reduces acoustic resonance, delivering a softer and quieter typing experience with enhanced flexibility.

Program V6 Max with QMK & VIA
With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more.

Get the V6 Max keymap working on VIA
Since the VIA code for the V6 Max is still awaiting approval from Github, it is not yet automatically recognized. Please download the appropriate keymap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the V6 Max keymap working on VIA.

Hot-swappable
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.

South-facing RGB LED Lights
The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

Gateron Jupiter Switch
Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 3-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.
The banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.

Screw-In PCB Stabilizers
Even small part matters for your fingertip feel. We’ve integrated the PCB-mounted screw-in stabilizers for a smoother typing experience with less wobbliness on the big keys such as space bar, shift, enter, and delete. The Keychron V6Max also supports third-party screw-in PCB stabilizers.

• QMK/VIA Support
• Gasket Mount
• South-Facing RGB
• Support macOS & Win
• 1000 Hz Polling Rate
• Hot-Swappable
• 2.4 GHz & Bluetooth
• OSA PBT Keycaps

Summary: Keychron V6 MAX. Keyboard form factor: Full-size (100%). Keyboard style: Straight. Connectivity technology: Wireless, Device interface: RF Wireless + Bluetooth, Keyboard key switch: Mechanical. Backlight type: RGB LED. Recommended usage: Universal. Product colour: Black, Dark Blue
Vendor Homepage: https://www.keychron.com/products/keychron-v6-max-qmk-via-wireless-custom-mechanical-keyboard?_pos=2&_psq=V6M-D3&_ss=e&_v=1.0&variant=40912031744089
Category Code: KEY
CnCode: 84716060
Unit Box Height: 0.075
Unit Box Length: 0.485
Unit Box Width: 0.215
Bluetooth version: 5.1
Connectivity technology: Wireless
Device interface: RF Wireless + Bluetooth
Frequency band: 2.4
Key travel distance: 4
Keyboard form factor: Full-size (100%)
Keyboard key switch: Mechanical
Keyboard keys operating life: 80
Keycaps: Double shot
Keycaps material: Polybutylene terephthalate (PBT)
Multi-device support: Yes
Multimedia keys: Yes
Numeric keypad: Yes
Pointing device: No
Polling rate: 1000/90
Programmable hot keys: Yes
Recommended usage: Universal
Adjustable keyboard height: Yes
Backlight: Yes
Backlight type: RGB LED
Ergonomic design: Yes
Keyboard style: Straight
Material: ABS synthetics
Product colour: Black/Dark Blue
Hot-swap: Yes
Battery capacity: 4000
Battery life (max): 225
Battery recharge time: 5
Battery technology: Lithium Polymer (LiPo)
Keyboard battery type: Built-in battery
Power source type: Battery
USB Type-C charging port: Yes
Mouse included: No
Operating temperature (T-T): -10 – 50
Keyboard dimensions (WxDxH): 149 x 447.9 x 23.6
Keyboard weight: 1120
Number of products included: 1
Receiver included: Yes
Wireless receiver interface: USB Type-A
