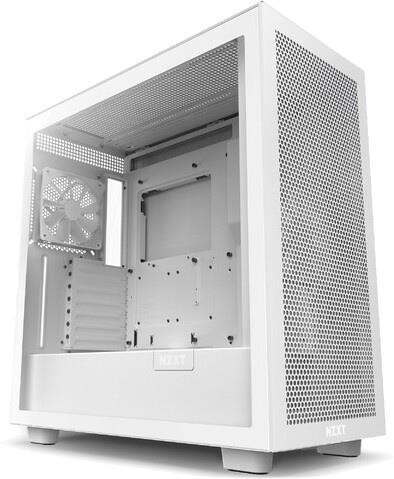

Case|NZXT|H7 Flow|MidiTower|ATX|EATX|MicroATX|MiniITX|Colour White|CM-H72FW-01
142,67 €
5 laos
Tellitud: 0
Saadaval olevad esemed: 5
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
XS
0 ( 000 )
23
32
44
55
S
24
23
32
44
55
M
25
23
32
44
55
L
26
23
32
44
55
M
29
23
32
44
55
L
32
23
32
44
55
M
34
23
32
44
55
4 - Päeva Transport
veebr. 27 märts 03
Kirjeldus
Tootja kood (MPN): CM-H72FW-01
ELKO kood: 1424582
Description:
The H7 Flow revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.
Dedicated GPU Cooling
Supports three bottom-mounted 120mm fans for direct GPU cooling in a narrow mid-tower footprint.
Angled H7 Flow showing front 3 120mm fansAngled H7 Flow showing front 3 120mm fans
Out-of-the-Box Performance
Comes equipped with 3 x 120mm front-mounted fans for exceptional out-of-the-box cooling performance.
Optimized for Airflow
High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
H7 Flow showing radiator size supportH7 Flow showing radiator size support
Large Radiator Support
Supports up to a 420mm radiator in front and 360mm radiator up top for max cooling potential.
Open Back of H7 Flow showing cable managementOpen Back of H7 Flow showing cable management
Easily Manage Cables
Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
10-Fan Capacity
Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
Top I/O Ports
Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
Exploded view of H7 Flow panelsExploded view of H7 Flow panels
Tool-less Panel Access
Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
- Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint
- Comes equipped with three front-mounted 120mm fans for exceptional out-of-the-box cooling
- High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust
- Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential
- Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing
- Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear
- Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel
- Tool-less access to the front, top, and side panels makes building and upgrading a breeze
Summary: NZXT H7 Flow. Form factor: Midi Tower, Type: PC, Product colour: White. Front fans installed: 3x 120 mm, Front fans diameters supported: 120,140 mm, Rear fans diameters supported: 120,140 mm. Supported HDD sizes: 2.5,3.5″. Width: 244 mm, Depth: 468 mm, Height: 544 mm
Vendor Homepage: https://nzxt.com/product/h7-flow#
Category Code: CAS
Unit Box Height: 0.57
Unit Box Length: 0.63
Unit Box Width: 0.325
Cable management: Yes
Form factor: Midi Tower
Material: SGCC/Tempered glass
Maximum CPU cooler height: 185
Maximum graphics card length: 410
Maximum PSU length: 200
Number of 2.5″ bays: 4
Number of 3.5″ bays: 2
On/off button: Yes
Product colour: White
Reset button: No
Side window: Yes
Supported motherboard form factors: ATX/EATX/micro ATX/Mini-ITX
Tempered glass panel(s): Yes
Type: PC
Power supply included: No
Audio output: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Fan 2 maximum air pressure: 1.05
Fan 2 maximum airflow: 60.2
Fan speed: 1200 – 1500
Fan speed control: No
Front fans diameters supported: 120/140
Front fans installed: 3x 120 mm
Front radiator sizes supported: 360/420
Maximum air pressure: 1.05
Maximum airflow: 60.2
Number of front fans supported (max): 3
Number of rear fans supported (max): 1
Number of top fans supported (max): 3
Rear fans diameters supported: 120/140
Rear radiator sizes supported: 140
Top fans diameters supported: 120/140
Top radiator sizes supported: 360
Supported HDD sizes: 2.5/3.5
Warranty period: 2
Depth: 468
Height: 544
Weight: 11130
Width: 244
Model name: H7 Flow
Units per Shipping Box: 1
Unit Calculated Volume: 0.1167
Unit Calculated Weight: 14
