Case|ASUS|ATX/micro ATX/Mini-ITX/EATX|Black|Midi Tower|PC|ROG Strix Helios II|GX601S/BK/TGROGSTRIXHELIO

Tootja kood (MPN): GX601S ROG STRIX HELIOS II
ELKO kood: 1448700
Description:

ROG Strix Helios II EATX mid-tower gaming case with dual tempered glass side panels, GPU support for up to 450mm in length, aluminum frame and front panel, GPU braces and 420mm radiator support

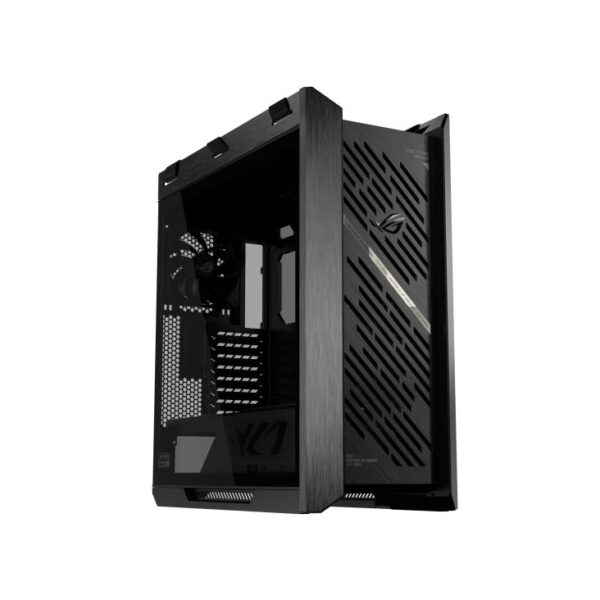

ROG Strix Helios II

Striking Looks. Cool Moves.

ROG Strix Helios II is a premium mid-tower gaming case featuring dual tempered glass side panels, a refined aluminum frame, and a diamond grille front panel with a 3D-structured front filter. It comes pre-installed with four 140 x 28 mm performance fans, delivering optimized airflow and enhanced thermal performance for demanding gaming setups. Engineered for expandability and performance, it’s ready for motherboards ranging from ITX to EATX and serious water-cooling setups as well – making it the perfect choice for a classic ROG showcase build.

Premium Design & Aesthetics

ROG Strix Helios II is made for showcase builds with dual 4mm-thick tempered glass side panels fitted in a refined brushed-aluminum frame. The aluminum front panel, featuring a diamond grille design, is manufactured using high-precision CNC milling technology and an anodizing process. The diagonal slashes on the front are inspired by race car elegance and individuality to make the Helios II unique. With rounded edges, a streamlined shape and hidden seams, this chassis is sleeker than ever.

Four Pre-Installed Performance Fans

The Helios II is designed to balance performance and acoustics: Four pre-installed 140mm fans with 28mm frames deliver strong airflow while maintaining a low 29 dB(A) noise level.

Ready For High-Performance Builds With Dual AIO Support

The ROG Strix Helios II is built to perform and primed for expansion, with ample space for GeForce RTX™ 5090 graphics cards or hardcore water-cooling setups. It can handle a ROG Ryuo IV SLC 360 ARGB AIO cooler and the 360mm radiator of the ROG Astral LC GeForce RTX 5090 at the same time. It features support for radiators up to 420mm in the front and 360mm at the top, with room reserved for installing the pump and reservoir of a custom loop.

Easy Installation & Maintenance

ROG Strix Helios II is designed with multiple mechanisms to provide the smoothest building experience, even for DIY novices. Meanwhile, keeping your rig clean is made easy with built-in dust filters and easy access to all areas.

Tool-Free Side Panel Design

Pushing a button at the rear of the case releases one of the side panels for tool-less access to the interior. Its tempered glass is hinged on the bottom to swing away and rest at an angle, or you can remove the panel completely and set it aside while you tinker.

Modular Fan & Radiator Mounts

Two removable brackets let you easily mount fans and radiators before installing the whole assembly into the case, simplifying your building experience.

Patented Graphics Card Slot Clamp

A tool-free graphics card slot clamp makes your PC building faster and hassle-free with a simple snap that secures your GPU firmly in place.

Rear Detachable PSU Bracket

For easier installation, a rear bracket detaches from the case so that a power supply can slide right in.

Dust Filters

The 3D-structured front filter provides ample space for the front fans while providing optimized airflow and acoustics. It combines forces with removable filters on the top and underside to provide all-round protection from dust, making cleaning and maintenance easier.

Effortless Cable Management

Keep your build sharp and tidy with flexible covers and a comprehensive cable management system. A cable grommet channel features velcro to let you neatly organize two sets of cables.

A multifunction cover with graphics card braces cleverly hides cabling while providing sturdy support to graphics cards. Its position can be adjusted to accommodate an ATX or EATX motherboard.

Front I/O Panel

The Helios II includes two USB 20Gbps Type-C ports with support for 60-watt fast charging where compatible.

ARGB Lighting Control

This LED-lit button toggles an integrated ARGB controller that supports Aura Sync lighting, enabling vast customization of colors and effects

Premium Fan Speed Control

PWM controls fan speeds automatically, making it easy to switch between light and heavy airflow as needed.

Ergonomic Case Straps

Easily carry your prized build to LAN parties with ergonomically X shape woven fabric straps that combine style and comfort, rigorously tested to support up to 50kg for reliable transport.

ROG Element

The front panel, Velcro straps and drive cage all feature the distinctive ROG logo, communicating futuristic luxury and elegance.

• Premium design: The Helios II is made for showcase builds, with aluminum front panel featuring diamond-grille design and 3D-structured filter to support effective cooling
• Optimal thermal performance: Pre-installed four 140 x 28mm performance fans deliver ultimate airflow
• Ready for the DIY experience: PC building is made easy with support for EATX motherboards and graphics cards up to 450mm long, plus a graphics card slot clamp and a rear detachable PSU bracket
• Tidy PC building: Effortless cable management is enabled by a multifunction cover with graphics card holders, a PSU shroud, a cable cover and rear cable clips
• Advanced I/O panel: This section features two USB 20Gbps Type-C® ports, four USB-A 3.0 ports, an ARGB-lighting control button and a fan-speed PWM control button
• Comfortable case straps: Easily carry your prized build to LAN parties with ergonomic and stylish X-shaped woven straps

Summary: ASUS ROG Strix Helios II GX601S. Form factor: Midi Tower, Type: PC, Product colour: Black. Front fans installed: 3x 140 mm, Front fans diameters supported: 120,140 mm, Rear fans installed: 1x 140 mm. Supported HDD sizes: 2.5,3.5″. Width: 250 mm, Depth: 565 mm, Height: 591 mm. Package width: 705 mm, Package depth: 390 mm, Package height: 740 mm
Vendor Homepage: https://rog.asus.com/cases/rog-strix-helios-ii/
Category Code: CAS
CnCode: 84733080
Unit Box Height: 0.74
Unit Box Length: 0.7
Unit Box Width: 0.39
Anti-dust filter: Yes
Cable management: Yes
Form factor: Midi Tower
Illumination: Yes
Illumination colour: Multi
Illumination location: Front
Material: Aluminium/Tempered glass
Maximum CPU cooler height: 190
Maximum graphics card length: 450
Maximum PSU length: 220
Number of 2.5″ bays: 4
Number of 3.5″ bays: 2
Number of expansion slots: 8
Number of internal 3.5″ bays: 2
On/off button: Yes
Product colour: Black
Reset button: Yes
RGB control button: Yes
Side window: Yes
Suitable for: Gaming
Supported motherboard form factors: ATX/EATX/micro ATX/Mini-ITX
Tempered glass panel(s): Yes
Type: PC
Power supply included: No
Audio input: Yes
Audio output: Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
Front fans diameters supported: 120/140
Front fans installed: 3x 140 mm
Front radiator sizes supported: 120/140/240/280/360/420
Liquid cooling capability: Yes
Number of front fans supported (max): 3
Number of rear fans supported (max): 1
Number of top fans supported (max): 3
Rear fans diameters supported: 120/140
Rear fans installed: 1x 140 mm
Rear radiator sizes supported: 120/140
Top fans diameters supported: 120/140
Top radiator sizes supported: 120/140/240/280/360
HDD/SSD combo cage: Yes
Number of HDDs supported: 6
Supported HDD sizes: 2.5/3.5
Depth: 565
Height: 591
Weight: 18000
Width: 250
Package depth: 390
Package height: 740
Package weight: 21000
Package width: 705
Model name: ROG Strix Helios II
Model: GX601S
Units per Pallet: 0
Units per Shipping Box: 1
Unit Calculated Volume: 0.202
Unit Calculated Weight: 22.1
