Kirjeldus
Tootja kood (MPN): EAP115
ELKO kood: 1200277
Description:
An Affordable, Scalable Business Wi-Fi Solution

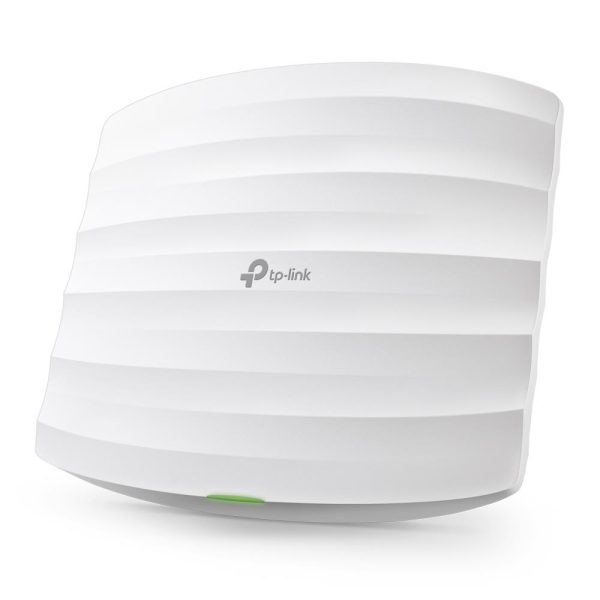

300Mbps Wireless N Ceiling Mount Access Point
Cloud Centralized Management
– Anytime, Anywhere
Omada Hardware Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Captive Portal
Guest Network with Facebook and SMS Support
Captive portal helps maintain only authorized guests to use the network, presenting devices with a convenient, user-friendly authentication method to grant Wi-Fi access. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your business.
Easy Mount Design and PoE
Timesaving and Flexible Deployment
The Omada EAP115 is designed for easy installation on any wall or ceiling. The Power over Ethernet (PoE) function allows your network cables to carry electrical power so you minimize on cable clutter. It’s one more hardwiring hassle you don’t have to worry about when operating your centralized management system.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
- Cloud centralized management and Omada app for ultra convenience and easy management
- Supports Power over Ethernet (802.3af) for convenient and affordable installation
- Simple mounting design for easy attachment to a wall or ceiling
- Secure guest network along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies
- Enterprise class Wi-Fi security help to decrease network security threats
- Multi-SSID divides multiple wireless networks for different user types
- Supports management vlan for an enhanced network management
Summary: TP-Link Omada 300Mbps Wireless N Ceiling Mount Access Point. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, HTTPS, SNMP, SSH, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK. Ethernet LAN data rates: 10,100,1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
Vendor Homepage: https://www.tp-link.com/uk/business-networking/omada-wifi-ceiling-mount/eap115/#specifications
Category Code: WAP
Unit Box Height: 0.07
Unit Box Length: 0.27
Unit Box Width: 0.25
2.4 GHz: Yes
5 GHz: No
6 GHz: No
Automatic channel selection: Yes
Cabling technology: 10/100Base-T(X)
Ethernet LAN data rates: 10/100/1000
Frequency band: 2.4 – 2.4835
Maximum data transfer rate: 300
Maximum data transfer rate (2.4 GHz): 300
Networking standards: IEEE 802.11b/IEEE 802.11g/IEEE 802.11n
Quality of Service (QoS) support: Yes
Rate limiting: Yes
Receiver sensitivity: 300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PER
Transmitting power (CE): 19
Transmitting power (FCC): 21
Virtual LAN features: VLAN mapping
VLAN support: Yes
Wi-Fi Multimedia (WMM)/(WME): Yes
Wireless isolation: Yes
Access Control List (ACL): Yes
MAC address filtering: Yes
Number of SSID supported: 8
Security algorithms: 128-bit WEP/152-bit WEP/64-bit WEP/HTTPS/SNMP/SSH/WPA/WPA2-Enterprise/WPA2-PSK/WPA-PSK
Service Set Identifier (SSID) features: Multiple SSIDs
System status alarm: Yes
Syslog: Yes
Web-based management: Yes
Ethernet LAN (RJ-45) ports: 1
WAN connection: Ethernet (RJ-45)/Wi-Fi
Output current: 1
Output voltage: 12
Power consumption (typical): 5
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) type supported: Passive PoE
Cable lock slot: Yes
Cable lock slot type: Kensington
LED indicators: Yes
On/off switch: Yes
Placement: Ceiling,Wall
Product colour: White
Reset button: Yes
Antenna direction type: Omni-directional
Antenna features: Integrated antenna
Antenna gain level (max): 3
Antenna type: Internal
Antennas quantity: 2
Minimum system requirements: Microsoft Windows 10/8/7/Vista/XP
Certification: CE, FCC, RoHS
Compliance certificates: CE/Federal Communications Commission (FCC)/RoHS
Depth: 180
Height: 47.5
Width: 180
Package depth: 268
Package height: 69
Package weight: 600
Package width: 246
Mounting kit: Yes
PoE adapter included: Yes
Quantity per pack: 1
Quick start guide: Yes
Operating relative humidity (H-H): 10 – 90
Operating temperature (T-T): 0 – 40
Storage relative humidity (H-H): 5 – 90
Storage temperature (T-T): -40 – 70
Sustainability compliance: Yes
Harmonized System (HS) code: 85176990
Series: Omada
Model name: EAP115
Units per Shipping Box: 1
Unit Calculated Volume: 0.004725
Unit Calculated Weight: 0.696
