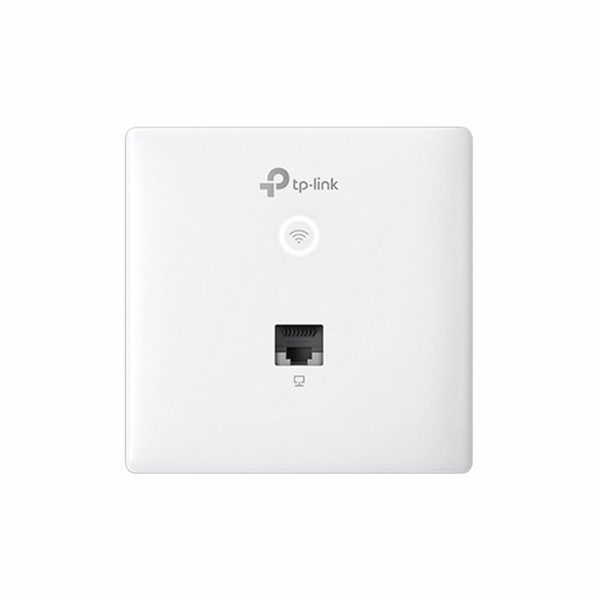

Access Point|TP-LINK|Omada|300 Mbps|IEEE 802.11a|IEEE 802.11b|IEEE 802.11g|IEEE 802.11n|2x10Base-T / 100Base-TX|Number of antennas 2|EAP115-WALL
32,19 €
3 laos
Tellitud: 0
Saadaval olevad esemed: 3
Delivery & Return
We want you to be happy with your purchase and we apologize if it is not. For whatever reason that you are not satisfied, we would be most happy to provide exchanges and returns for all items purchased from us if the following conditions are met.
Rules
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
Interpretation and Definitions
All exchanges and returns would need to be raised within 10 days of the invoice date for Singaporeorders, and 20 days for overseas orders. For local deliveries, there is an option to exchange at any of our boutiques within Singaporeor through our online portal at www.company.com. All requests for returns however, would need to be strictly made online at www.company.com for both local and overseas deliveries.
XS
0 ( 000 )
23
32
44
55
S
24
23
32
44
55
M
25
23
32
44
55
L
26
23
32
44
55
M
29
23
32
44
55
L
32
23
32
44
55
M
34
23
32
44
55
4 - Päeva Transport
apr. 10 apr. 14
Kirjeldus
Tootja kood (MPN): EAP115-WALL
ELKO kood: 1207351
Description:
Installation Made Easy
– Detach the faceplate of the junction box* with a screwdriver.
– Remove the faceplate of the EAP.
– Connect an in-wall Ethernet cable to the Uplink+POE port.
– Secure the access point to the wall using the nails provided.
– Press the faceplate back into position.
Perfectly Formed
The EAP115-Wall would blend seamlessly into any business setting with a refined, minimalist appearance. A slimline design includes casing that’s just 11 mm in thickness.
Effortless Deployment
With 802.3af Power over Ethernet supported there’s no need for additional wiring. Simply plug in existing Ethernet cables and you’re ready to go.
Complete Wireless Coverage
An EAP in each room guarantees a strong wireless signal and allows guests to enjoy their own private Wi-Fi network.
Cloud Centralized Management
– Anytime, Anywhere
Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
- Easy-mount construction allows installation into any standard EU-type data wall-box
- Compact, low-profile design fits discreetly with any existing interior style
- Free Auranet Controller Software enables administrators to easily manage hundreds of EAPs
- Support Power over Ethernet (802.3af) for convenient and affordable installation
- Enterprise class Wi-Fi security helps to decrease network security threats
- Captive portal provides one convenient method of authentication for Wi-Fi guests
- Supports management vlan for an enhanced network management
Summary: TP-Link Omada 300Mbps Wireless N Wall-Plate Access Point. 2.4 GHz, Maximum data transfer rate: 300 Mbit/s. Security algorithms: 802.1x RADIUS, HTTPS, WPA, WPA-PSK, WPA2, WPA2-PSK. Ethernet LAN data rates: 10,100 Mbit/s. Power over Ethernet (PoE). Product colour: White
Vendor Homepage: https://www.tp-link.com.au/products/details/cat-5694_EAP115-Wall.html
Category Code: WAP
Unit Box Height: 0.12
Unit Box Length: 0.13
Unit Box Width: 0.045
2.4 GHz: Yes
5 GHz: No
6 GHz: No
Automatic channel selection: Yes
Cabling technology: 10/100Base-T(X)
Ethernet LAN data rates: 10/100
Frequency band: 2.4 – 2.4835
Maximum data transfer rate: 300
Maximum data transfer rate (2.4 GHz): 300
Networking standards: IEEE 802.11b/IEEE 802.11g/IEEE 802.11n
Quality of Service (QoS) support: Yes
Rate limiting: Yes
Transmitting power: 15
Transmitting power (CE): 20
Virtual LAN features: Port-based VLAN/VLAN mapping
VLAN support: Yes
Wi-Fi Multimedia (WMM)/(WME): Yes
Wireless isolation: Yes
Access Control List (ACL): Yes
MAC address filtering: Yes
Number of SSID supported: 8
Security algorithms: 802.1x RADIUS/HTTPS/WPA/WPA2/WPA2-PSK/WPA-PSK
Service Set Identifier (SSID) features: Multiple SSIDs
Management protocols: SNMP, Telnet
Syslog: Yes
Web-based management: Yes
Ethernet LAN (RJ-45) ports: 2
WAN connection: Ethernet (RJ-45)
Power consumption (typical): 2.8
Power over Ethernet (PoE): Yes
Power over Ethernet (PoE) type supported: Passive PoE
Cable lock slot: No
Internal: No
LED indicators: Yes
Placement: Wall
Product colour: White
Reset button: Yes
Antenna direction type: Omni-directional
Antenna features: Integrated antenna
Antenna gain level (max): 1.8
Antenna type: Internal
Antennas quantity: 2
Compatible operating systems: Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10
Compliance certificates: CE/RoHS
Depth: 86.8
Height: 30.2
Width: 86.8
Package depth: 130
Package height: 47
Package weight: 190
Package width: 118
Mounting kit: Yes
Quantity per pack: 1
Quick start guide: Yes
Operating relative humidity (H-H): 10 – 90
Operating temperature (T-T): 0 – 40
Storage relative humidity (H-H): 5 – 90
Storage temperature (T-T): -40 – 70
Sustainability compliance: Yes
Harmonized System (HS) code: 85176990
Model: EAP115-WALL
Series: Omada
Model name: 300Mbps Wireless N Wall-Plate Access Point
Units per Shipping Box: 1
Unit Calculated Volume: 0.000702
Unit Calculated Weight: 0.194
